3.9.2.7 56 mm X tape feeder module
3
Fig. 3.9 - 9 56 mm X tape feeder module
3
3
3
56 mm X tape feeder module Item no. 00141276-xx
56 mm X tape feeder module with splice sensor Item no. 00141296-xx
Width 69.8
Feeder module locations filled 6
Conveyor increment From 4 mm to 64 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
≤ 8 s
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 X feeder modules for the component trolley from the SIPLACE X-series
175
3.9.2.8 72 mm X tape feeder module
3

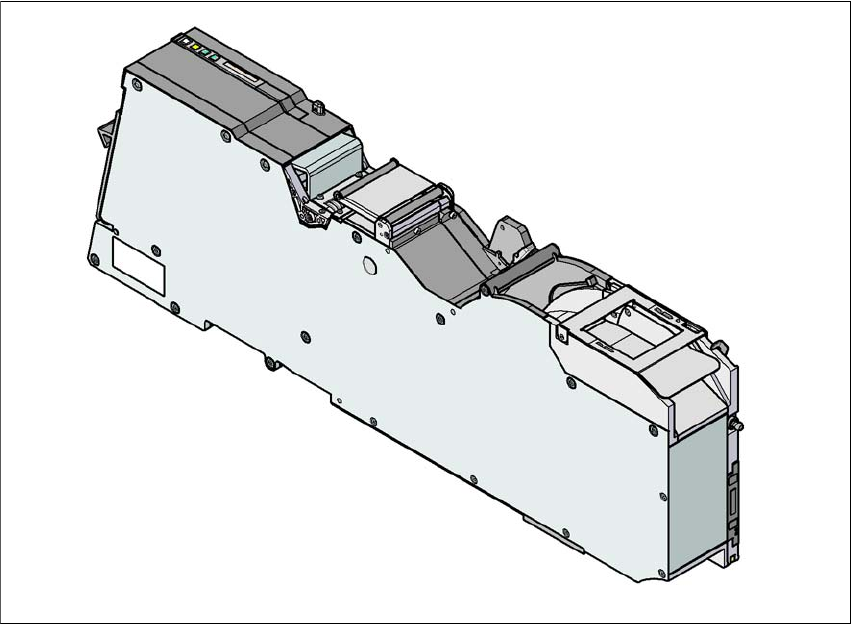

Fig. 3.9 - 10 72 mm X tape feeder module
3
3
3
72 mm X tape feeder module Item no. 00141277-xx
72 mm X tape feeder module with splice sensor Item no. 00141297-xx
Width 81.6
Feeder module locations filled 7
Conveyor increment From 4 mm to 80 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
≤ 8 s
3 Technical data for the machine User Manual SIPLACE X-Series
3.9 X feeder modules for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition
176
3.9.2.9 88 mm X tape feeder module
3

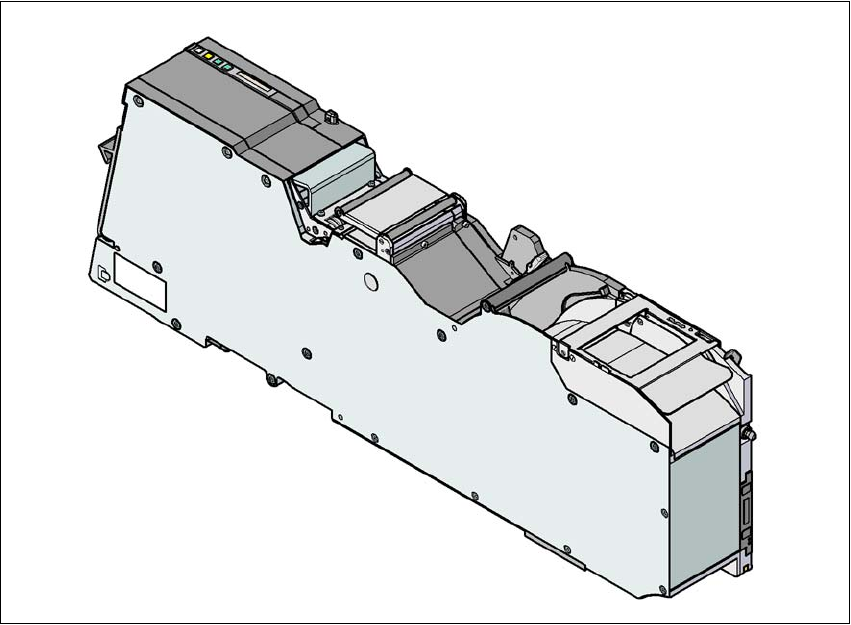

Fig. 3.9 - 11 88 mm X tape feeder module
3
3
3
88 mm X tape feeder module Item no. 00141278-xx
88 mm X tape feeder module with splice sensor Item no. 00141298-xx
Width 105.2 mm
Feeder module locations filled 9
Conveyor increment From 4 mm to 96 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
≤ 8 s
