3 Technical data for the machine User Manual SIPLACE X-Series
3.9 X feeder modules for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition
182
3.9.4.3 Feeder module adapter for the X-series with reject conveyor
3
Fig. 3.9 - 15 Feeder module adapter for the X-series with linear vibratory feeder
(1) Adapter for the X-series feeder modules (00141305-xx)
(2) Adapter plate for reject conveyor (00141308-xx)
(3) Reject conveyor
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 X feeder modules for the component trolley from the SIPLACE X-series
183
3.9.5 Energy and data interface for X feeder modules
Item no. 00141247-xx Energy and data interface for X feeder module
3

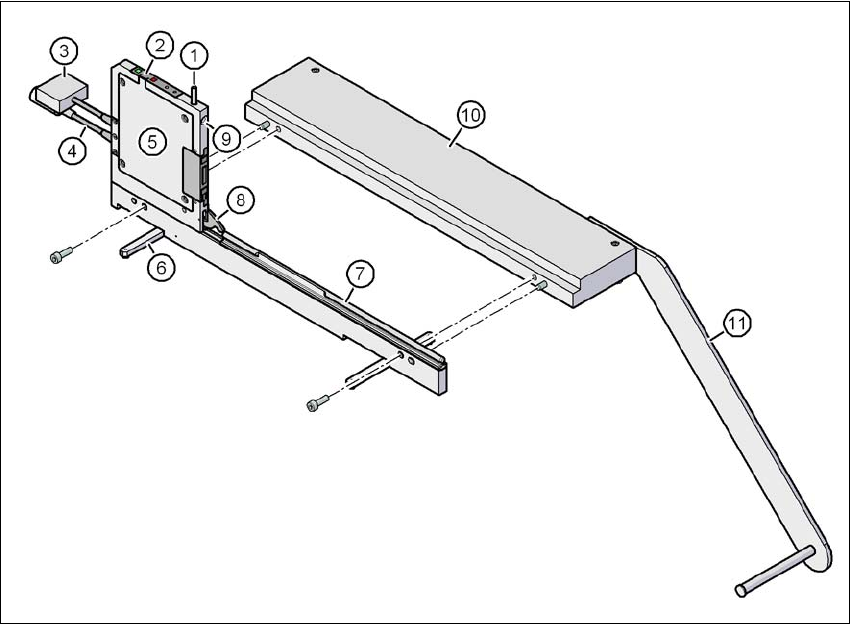

Fig. 3.9 - 16 Energy and data interface for X feeder modules
(1) Button for releasing the locking latch
(2) Operator panel
(3) Data cable
(4) Power supply cable
(5) Electronic housing
(6) Fold-out feet
(7) Omega profile for guiding the feeder modules
(8) Locking latch
(9) Locating hole for the front centering pin of the feeder module
(10) Base plate
(11) Coil holder
3 Technical data for the machine User Manual SIPLACE X-Series
3.9 X feeder modules for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition
184
3.9.5.1 Description
The energy and data interface allows X feeder modules to be used outside the placement machine
and set-up area. The interface consists of an aluminium frame with omega profile (item 7 in Fig.
3.9 - 14
, page 181) for holding and guiding the feeder modules. The feeder module is placed on
the omega profile with the slider guides, just like the X component trolley, and is pushed forward
until the front centering pin of the feeder module is fully engaged in the locating hole (item 9 in Fig.
3.9 - 14
, page 181). The locking latch (item 8 in Fig. 3.9 - 14, page 181) locks the feeder module
in this position. To remove the feeder module, simply press the release button (item 1 in Fig.
3.9 - 14
, page 181). The locking latch (item 8 in Fig. 3.9 - 14, page 181) is pressed down and re-
leases the feeder module. Fold-out feet (item 6 in Fig. 3.9 - 14
, page 181) stabilize the position of
the energy and data interface, particularly for wide feeder modules.
The electronic housing (item 5 in Fig. 3.9 - 14
, page 181) holds the electronic control unit for the
energy and data interface. The operator panel (item 2 in Fig. 3.9 - 14
, page 181) consists of start
and stop buttons and two status LEDs. Communication with a PC takes place via the data cable
(item 3 in Fig. 3.9 - 14
, page 181). The power supply cable (item 4 in Fig. 3.9 - 14, page 181) is
connected to the power supply unit provided.
3.9.5.2 Usage
The energy and data interface is used to check, maintain and repair X feeder modules. It can also
be used for setting up in advance for PCB production. In this case, the energy and data interface
is fixed to the base plate (item 10 in Fig. 3.9 - 18
, page 187). The coil holder (item 11 in Fig. 3.9 -
18, page 187) is also mounted on the base plate. When a component tape is inserted, you can
check or reset the increment, pick-up position and conveyor speed. The detailed user manual de-
scribes how to use the interface and the necessary servicing work.
3.9.5.3 Deliverables
– Single Slot EDIF
a
– Power supply, 100 - 120 / 200 - 240 VAC, +30VDC, 4.3 A
– Base plate with coil arm
– User manual
a) EDIF = energy and data interface
