User Manual SIPLACE X-Series 3 Technical data for the machine From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE H F component trolley 193 3.10.8.3 3 x 8 mm S t ape feeder module for…
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
192
3.10.8.2 3 x 8 mm S tape feeder module

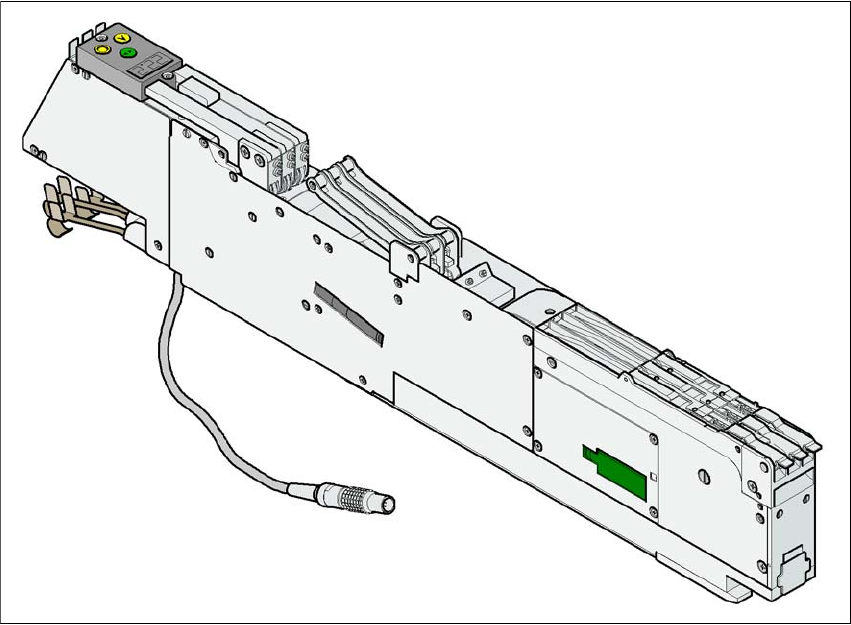

Fig. 3.10 - 2 3 x 8 mm S tape feeder module
Item no. 00141098-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 4,000 to 10,000 3
Conveyor increment 2mm / 4mm / 8 mm 3
Tape material Paper or blister tape 3
Max. component height 2.5 mm 3
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
193
3.10.8.3 3 x 8 mm S tape feeder module for 0201/0402 components
3

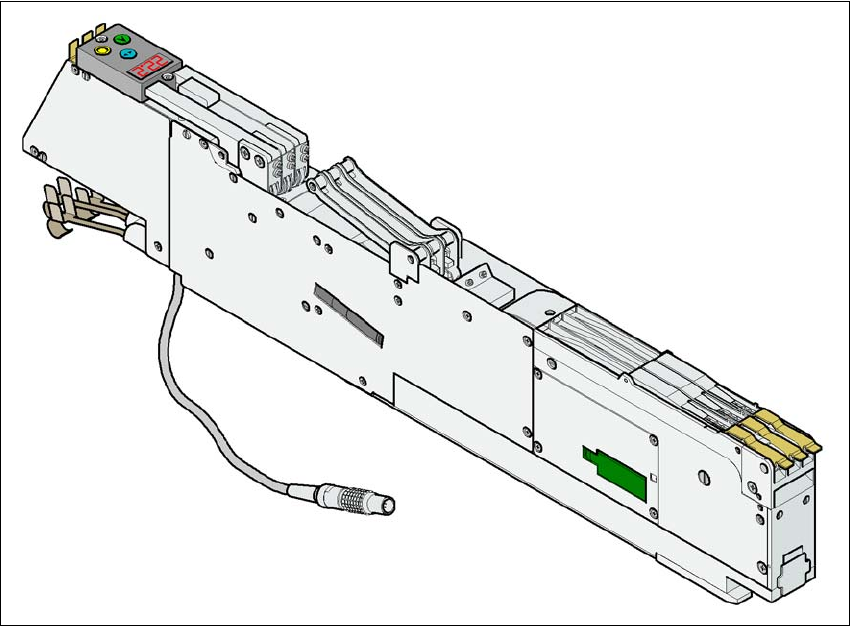

Fig. 3.10 - 3 3 x 8 mm S tape feeder module for 0201/0402 components
3
Item no. 00141099-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 10,000 3
Conveyor increment 2mm / 4mm 3
Tape material Paper tape 3
Max. component height 0.7 mm 3
Component range 0201/0402 3
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
194
3.10.8.4 3 x 8 mm SL tape feeder module
3

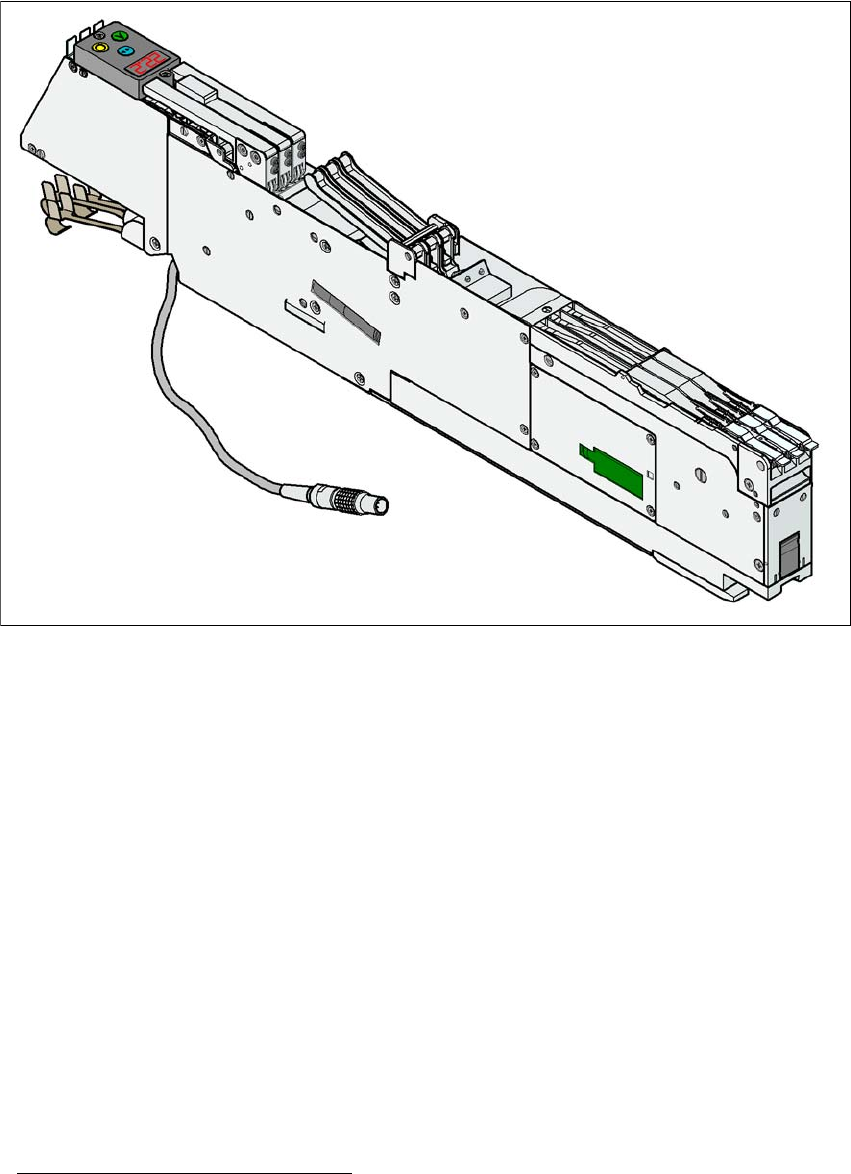

Fig. 3.10 - 4 3 x 8 mm SL tape feeder module
a
Item no. 00141088-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 10,000 3
Conveyor increment 2mm / 4mm / 8 mm 3
Tape material Paper or blister tape 3
Max. component height 2.5 mm 3
Component range from 0201 3
2 pick-up positions Front position: component ≥ 1.6 mm
Rear position: component ≤ 1.6 mm 3
3
The new "Feed on Demand" principle has been implemented on this feeder module to reduce the
component rejection rate. The components are not transported to the pick-up position until the
placement head moves to the pick-up position.
a) SL = shutterless, that is without any component cover
