User Manual SIPLACE X-Series 3 Technical data for the machine From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE H F component trolley 195 3.10.8.5 12/16 mm S t ape feeder module 3 F…
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
194
3.10.8.4 3 x 8 mm SL tape feeder module
3
Fig. 3.10 - 4 3 x 8 mm SL tape feeder module
a
Item no. 00141088-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 10,000 3
Conveyor increment 2mm / 4mm / 8 mm 3
Tape material Paper or blister tape 3
Max. component height 2.5 mm 3
Component range from 0201 3
2 pick-up positions Front position: component ≥ 1.6 mm
Rear position: component ≤ 1.6 mm 3
3
The new "Feed on Demand" principle has been implemented on this feeder module to reduce the
component rejection rate. The components are not transported to the pick-up position until the
placement head moves to the pick-up position.
a) SL = shutterless, that is without any component cover
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
195
3.10.8.5 12/16 mm S tape feeder module
3

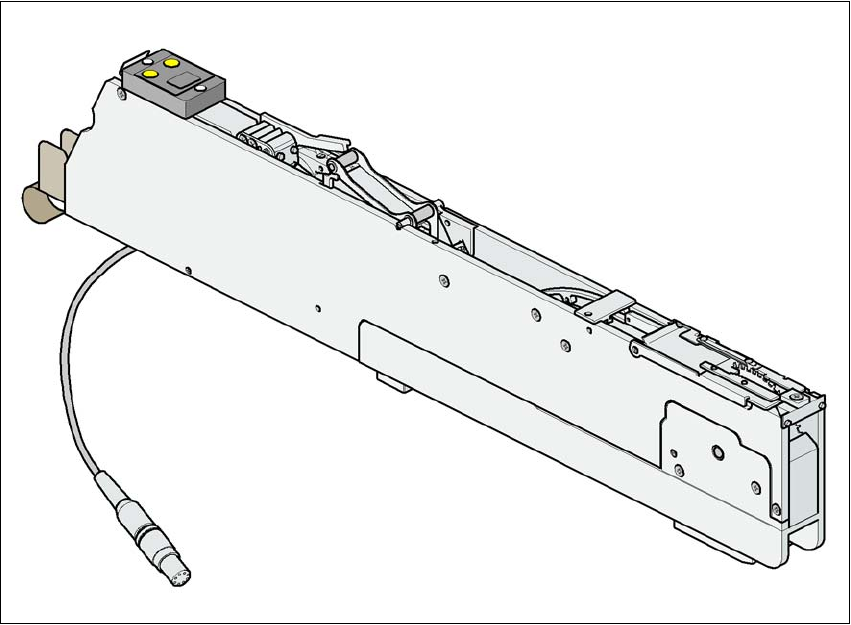

Fig. 3.10 - 5 12/16 mm S tape feeder module
Item no. 00141092-xx 3
Width: 30.3 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 4,000 3
Conveyor increment From 4mm to 24 mm in 4 mm increments 3
Tape material Paper or blister tape 3
Max. component height 14 mm 3
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
196
3.10.8.6 24/32 mm S tape feeder module

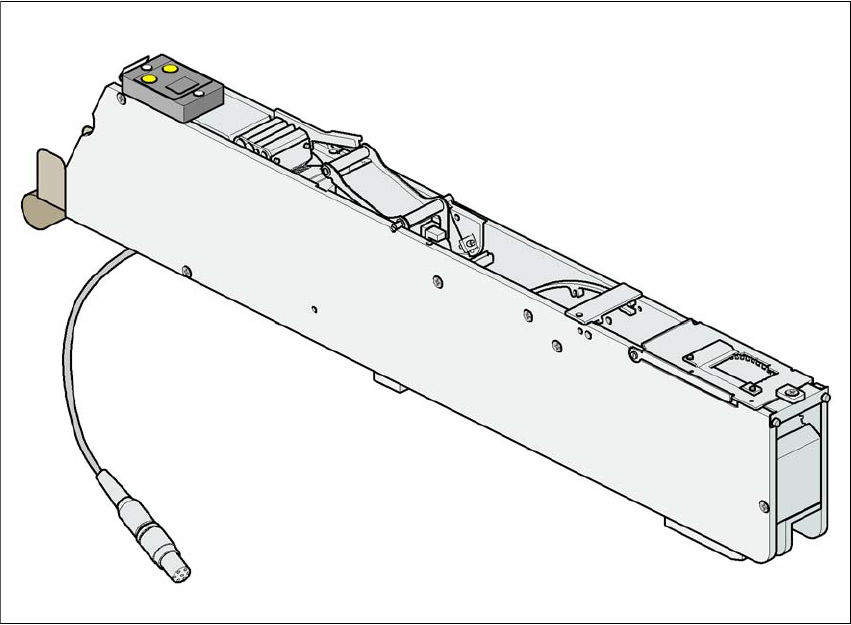

Fig. 3.10 - 6 24/32 mm S tape feeder module
Item no. 00141093-xx 3
Width: 42.4 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 1.5 3
Maximum number of feeder modules 4 x 10 3
Stock of components for 7" reels Approx. 2,000 3
Conveyor increment From 4mm to 40 mm in 4 mm increments 3
Tape material Blister tape 3
Max. component height 14 mm 3
Tape material Blister tape 3
Max. component height 14 mm 3
