3 Technical data for the machine User Manual SIPLACE X-Series 3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition 198 3.10.8.8 44 mm S t ape feeder modul e Fig. 3…
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
197
3.10.8.7 24/32 mm S DP tape feeder module for deep pockets

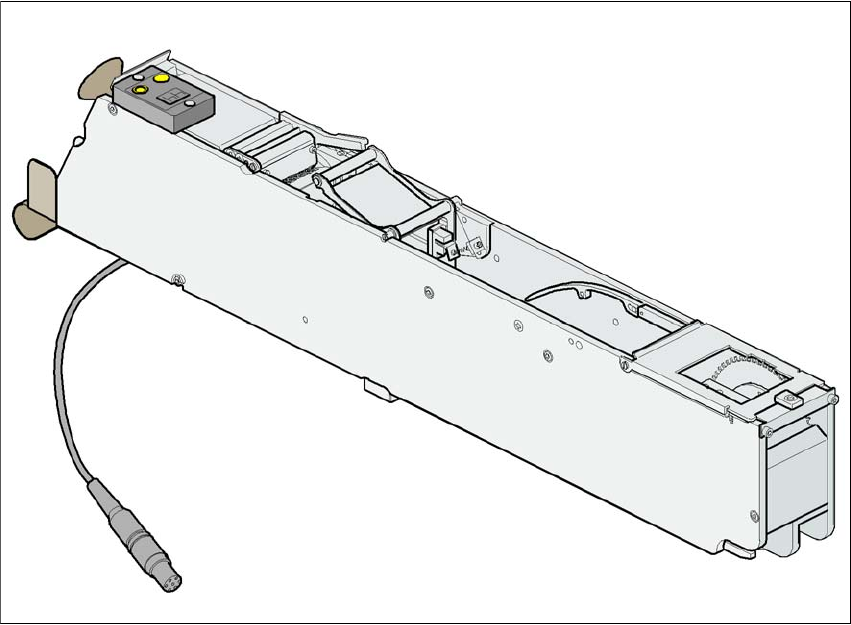

Fig. 3.10 - 7 24/32 mm S DP tape feeder module for deep pockets
Item no. 00141193-xx 3
Width: 42.4 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 1.5 3
Maximum number of feeder modules 4 x 10 3
Tape height Up to 25 mm 3
Conveyor increment From 4mm to 40 mm in 4 mm increments 3
Tape material Blister tape 3
Max. component height 24 mm 3
Tape material Blister tape 3
Max. component height 24 mm 3
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
198
3.10.8.8 44 mm S tape feeder module

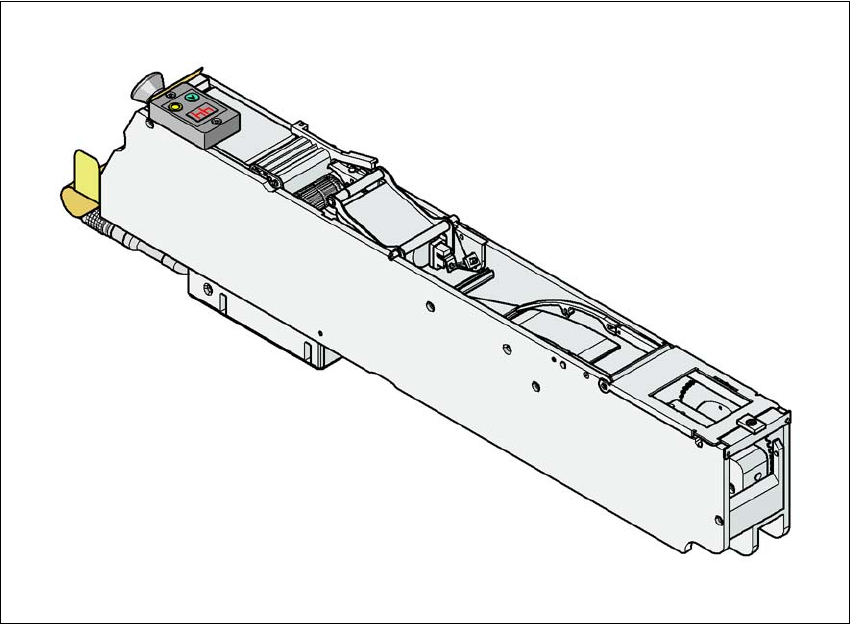

Fig. 3.10 - 8 44 mm S tape feeder module
Item no. 00141094-xx 3
Width 54.6 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 2 3
Maximum number of feeder modules 4 x 7 3
Stock of components for 7" reels Approx. 2,000 3
Conveyor increment From 4mm to 52 mm in 4 mm increments 3
Tape material Blister tape 3
Max. component height 14 mm 3
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
199
3.10.8.9 44 mm S DP tape feeder module for deep pockets

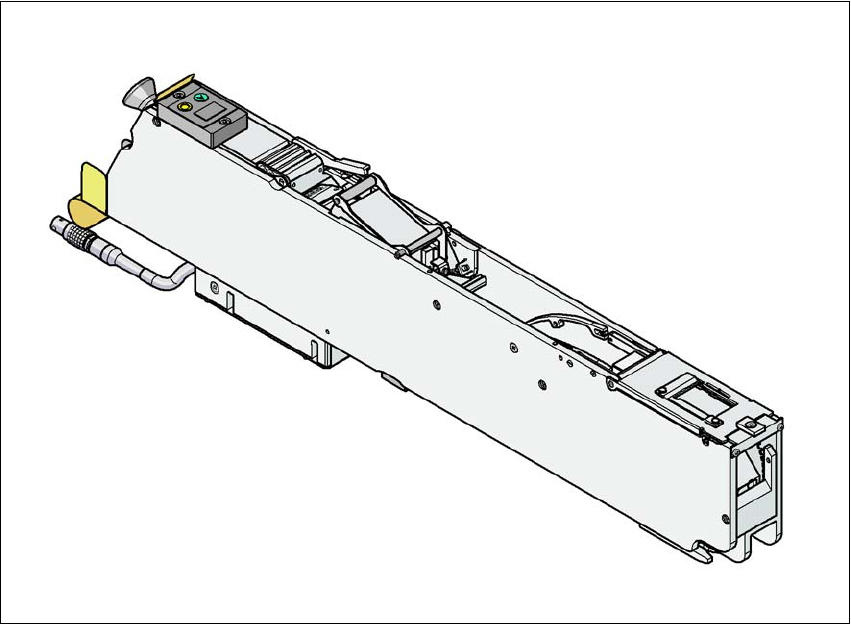

Fig. 3.10 - 9 44 mm S DP tape feeder module for deep pockets
Item no. 00141194-xx 3
Width 54.6 mm 3
Tracks per feeder module 1 3
Feeder module locations filled 2 3
Maximum number of feeder modules 4 x 7 3
Tape height Up to 25 mm 3
Conveyor increment From 4mm to 52 mm in 4 mm increments 3
Tape material Blister tape 3
Max. component height 24 mm 3
