3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
204
3.10.8.14 Linear vibratory feeder, type 3

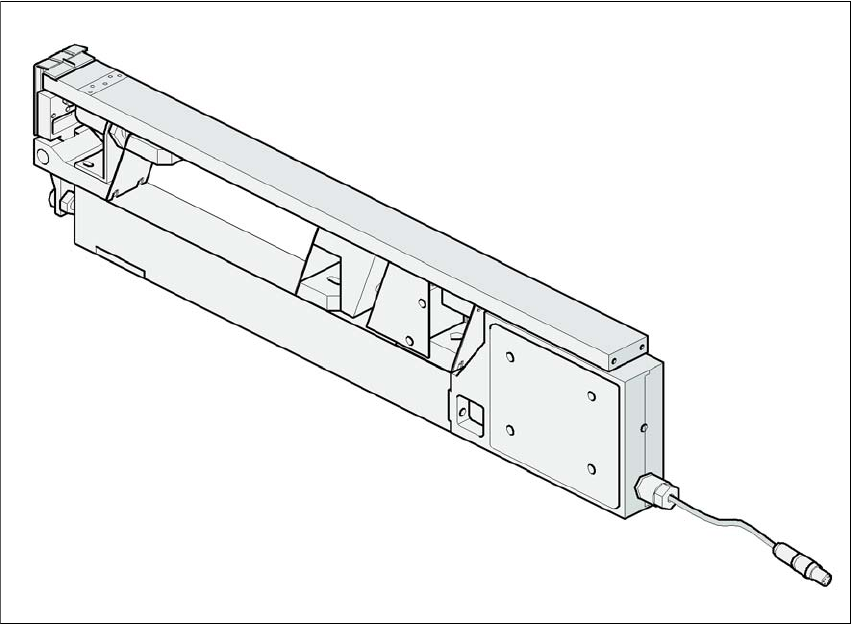

Fig. 3.10 - 14 Linear vibratory feeder, type 3
Item no. 00142031-xx 3
Wide 28 mm 3
Tracks per feeder 1, 2 or 3 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components Up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / x 3 3
15 mm wide / x 2 3
> 15 mm wide / x 1 3
30 mm wide / 1 x 3
Vibrating time Variable with SIPLACE Pro from 400 to
over 1,000 ms 3
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
205
3.10.8.15 Bulk case feeder module
3
Fig. 3.10 - 15 Bulk case feeder module
Item no. 00142318-xx 3
Width 30.6 mm 3
Tracks per feeder module 2 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components Up to 50,000 3
Feeding rails 0402 / 0.5 mm high item no. 00142320-xx 3
0603 / 0.80 mm high item no. 00142322-xx 3
Cycle time < 60 ms 3
The compressed air supply for bulkcase feeder modules is described in Section 3.12.7
, page
231
. 3
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
206
3.10.8.16 Surf tape feeder module
For placing bare dies, you will need the surf tape feeder module for feeding components. There
are versions of these feeder modules for 8 mm tapes and 12 or 16 mm tapes. 3
3
Fig. 3.10 - 16 Surf tape feeder module
3
Handling of the feeder module is described in the operating instructions for feeder modules. 3
