3.10.9 Waffle-pack tray holder for the SIPLACE HF component trolley
Item no. 00116430-01 Holder for large waffle-pack tray (260 x360mm²)
Item no. 00116432-01 Holder for small waffle-pack tray (136 x360mm²)
3

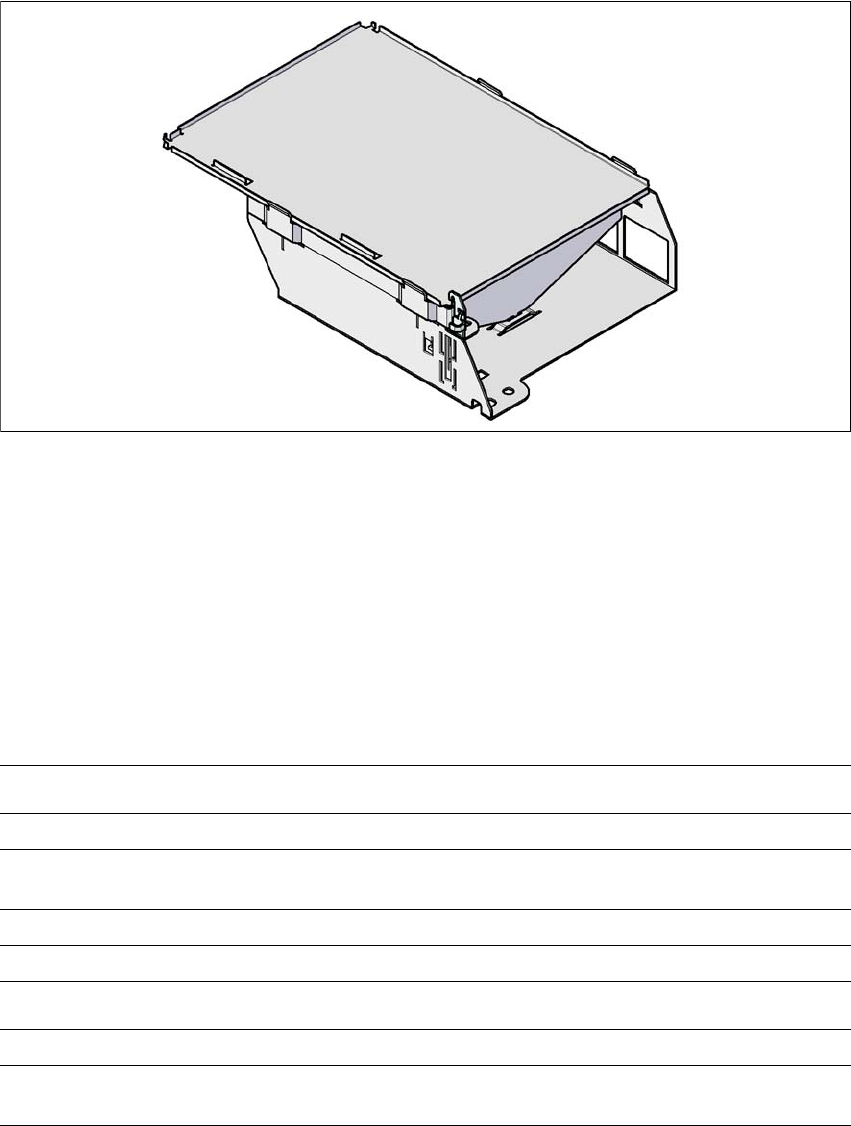

3.10.9.1 Description
The waffle-pack tray holder is a device for holding JEDEC trays used to supply components. The
holder is placed on the component table like a feeder module and the waffle-pack trays are
changed manually.
The tray holder set-up is recommended if there are just a few component types to be placed from
a waffle-pack tray.
3.10.9.2 Technical data
3
holder for large waffle-pack tray
Dimensions LxWxH 425 x 264 x 113 mm³
Location filled on the
component table
9
Positioning options Locations 2 and 4
Range of placement heads TH, C&P6, C&P12
Holder for small waffle-pack tray
Dimensions LxWxH 425 x 140 x 113 mm³
Locations
filled on the component table
5
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
209
3
3.10.9.3 Assembly
3

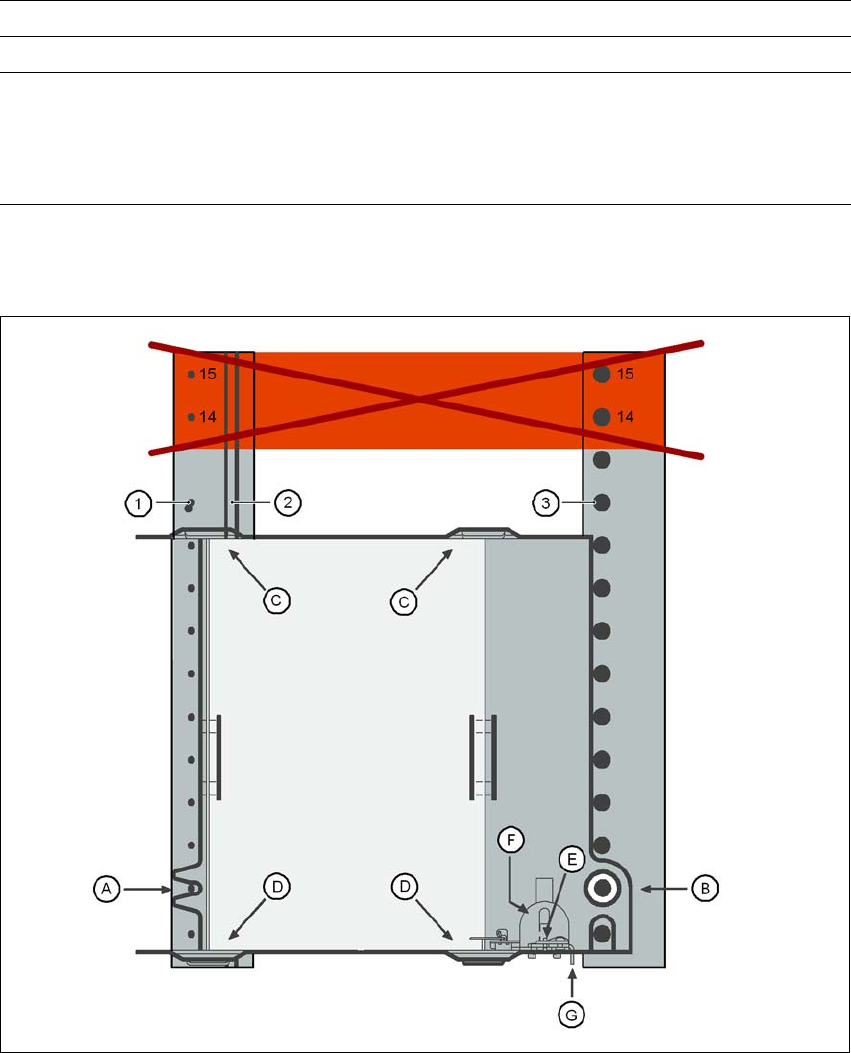

Fig. 3.10 - 17 Installation
(1) Centering pins
(2) Magnetic rail
(3) Centering ball
(14), (15) This position must not be filled.
Positioning options Locations 2 and 4
Range of placement heads TH, C&P6, C&P12
Max. waffle-pack tray height
including components
C&P12
C&P6
TH
12.5 mm
12.5 mm
28.5 mm
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
210
PLEASE NOTE
– The waffle-pack tray holder can only be set up at locations 2 and 4.
– The feeder module positions 14 and 15 on the component table must not be filled.
– The holder and the nozzle changer cannot be used at the same time at location 4.
– The component trolley cannot be docked in/out while the holder is fitted.
3.10.9.4 Assembly
→ Insert the front side of the waffle-pack tray holder into the associated centering pin (A in Fig.
3.10 - 17
, page 209).
→ Then position the hole on the rear side of the waffle-pack tray holder onto the centering ball on
the component table (B in Fig. 3.10 - 17
, page 209).
→ Make sure the waffle-pack tray is resting securely on the component table.
→ Position one side of the waffle-pack tray carrier in the mounting (C in Fig. 3.10 - 17
, page 209).
Then press the other side into the mounting (D in Fig. 3.10 - 17
, page 209).
→ Slide the waffle-pack tray up against the stop (E in Fig. 3.10 - 17
, page 209).
→ Secure the waffle-pack tray carrier by pressing the thrust pad (F in Fig. 3.10 - 17
, page 209)
downwards.
→ To remove the waffle-pack tray carrier, press the thrust pad once more.
PLEASE NOTE
Using the holder for small waffle-pack trays (136mm) a waffle-pack tray (JEDEC or CENELEC
waffle-pack tray) can be fitted directly to the holder, in other words, without a waffle-pack tray car-
rier being used. To do this, change the retainer (G in Fig. 3.10 - 17, page 209). 3
WARNING 3
Please follow the safety instructions for processing capacitors based on powdered metal in Sec-
tion 2.6.5.2, page 86.
3.10.9.5 Changing the retainer
→ Hold the retainer (G in Fig. 3.10 - 17, page 209) firmly. Press the thrust pad downwards (F in
Fig. 3.10 - 17
, page 209) and remove the retainer by pressing it out sideways.
3.10.9.6 Data entry
Define the waffle-pack trays as described in the SIPLACE Pro operating instructions. 3
