4 Setting up and commissioning User Manual SIPLACE X-Series
4.3 Setting up the placement machine From software version SR.605.xx 07/2008 EN Edition
262
4.3.4.2 Presetting the height of the outer machine feet
4

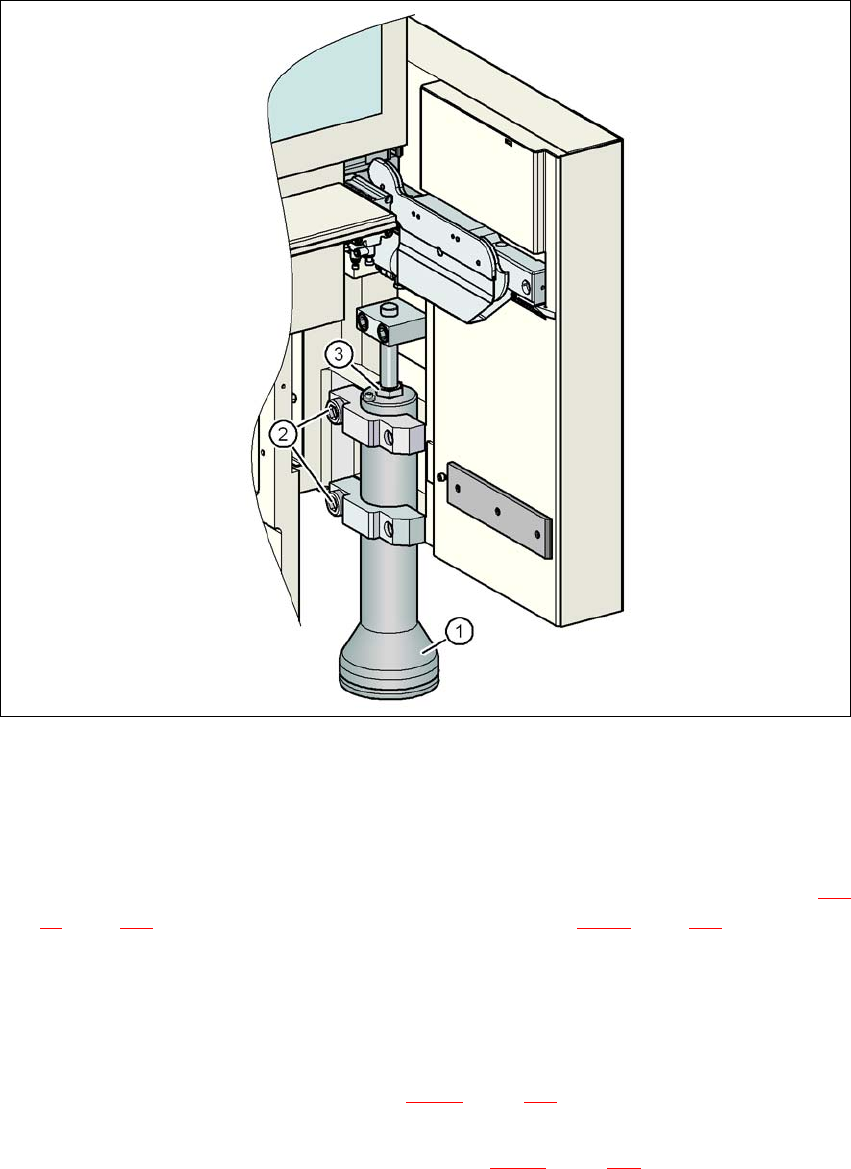

Fig. 4.3 - 6 Presetting the height of the outer machine feet
(1) Machine foot - 2 versions
(2) M24x90 hexagon socket head screw
(3) M24x2x120 adjusting screw
→ Use the 19 mm bit to loosen the two hexagon socket head screws M24x90 (item 2 in Fig. 4.3
- 6, page 262), and allow the outer machine foot (item 1 in Fig. 4.3 - 6, page 262) to slide down
slowly as far as the stop.
→ Insert the correct machine foot for the required PCB conveyor height.
There are two versions of the outer machine feet: 4
– outer machine foot for the PCB conveyor height of 830 mm, length 369 mm,
item no. 03041008-01 (item 1 in Fig. 4.3 - 3
, page 259)
– outer machine foot for the PCB conveyor heights of 900, 930 and 950 mm, length
439 mm, item no. 03000890-02 (item 2 in Fig. 4.3 - 3
, page 259)
User Manual SIPLACE X-Series 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the placement machine
263
→ Preset the height for each of the outer machine feet.
The distance between the underside of the machine foot and the bottom edge of the machine
frame should be as follows:
→ Use the size 36 fork wrench to turn the adjusting screw M24x2x120 (item 3 in Fig. 4.3 - 6
,
page 262
) until you obtain the distance values given in the above table for the particular trans-
port height.
→ Now use the fork-lift to carefully lower the placement machine until the machine feet touch
the floor evenly. There should always be a second person present to ensure that the machine
remains stable while it is being lowered. It may be necessary to loosen the outer machine feet
clamps slightly.
→ Continue carefully lowering the machine until the outer machine feet touch the screws
M24x2x120 (item 3 in Fig. 4.3 - 6
, page 262) for adjusting the height.
→ Make sure that the middle machine feet (see point 2 in Fig. 4.3 - 3
, page 259) do not yet touch
the floor. If necessary, screw the middle machine feet into the machine or spacer slightly.
PLEASE NOTE 4
A description of how to definitively adjust the machine can be found in Section 4.3.17
on page
304.
PCB conveyor height Distance from underside of machine foot
to bottom edge of machine frame
830 mm 120 mm
900 mm 190 mm
930 mm 220 mm
950 mm 240 mm
4 Setting up and commissioning User Manual SIPLACE X-Series
4.3 Setting up the placement machine From software version SR.605.xx 07/2008 EN Edition
264
4.3.5 Fitting the extension kits to the machine frame
4.3.5.1 Fitting the extension kit on the PCB output side
When the placement machine is delivered, the extension kit on the PCB output side and the PCB
output conveyor are dismantled. The procedure for attaching the extension kit to the PCB output
side is as follows:
– Fitting the output conveyor
see Section 4.3.6, page 265
– Fitting the extension kit on the PCB output side see Section 4.3.7, page 266
– Installing the axis unit see Section 4.3.8, page 272
– Fitting the indicator lamp see Section 4.3.13, page 293
– Integrating the placement machine into the line see Section 4.3.16, page 301
– Making final adjustments to the placement machine see Section 4.3.17, page 304
4.3.5.2 Fitting the extension kit on the PCB input side
If the extension kit on the PCB input side was also removed for ease of transportation, you will
have to carry out the following steps before integrating the placement machine into the line (see
Section 4.3.16
, page 301):
– Fitting the input conveyor
see Section 4.3.9, page 280
– Fitting the extension kit on the PCB input side see Section 4.3.10, page 282
– Fitting the box PC unit see Section 4.3.11, page 287
– Installing the axis unit see Section 4.3.12, page 291
– Fitting the indicator lamp see Section 4.3.13, page 293
– Integrating the placement machine into the line see Section 4.3.16, page 301
– Making final adjustments to the placement machine see Section 4.3.17, page 304
