4 Setting up and commissioning User Manual SIPLACE X-Series 4.3 Setting up the placement machine From software version SR.605.xx 07/2008 EN Edition 296 4.3.15.2 Machine foot clearances and the st ationary left conveyor e…
User Manual SIPLACE X-Series 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the placement machine
295
4.3.15 Machine foot clearances and the stationary PCB conveyor edges
4.3.15.1 Machine foot clearances and the stationary right conveyor edge for the
PCB single conveyor
4
Fig. 4.3 - 22 Machine foot clearances and the stationary right conveyor edge for the PCB single conveyor
in millimeters
4 Setting up and commissioning User Manual SIPLACE X-Series
4.3 Setting up the placement machine From software version SR.605.xx 07/2008 EN Edition
296

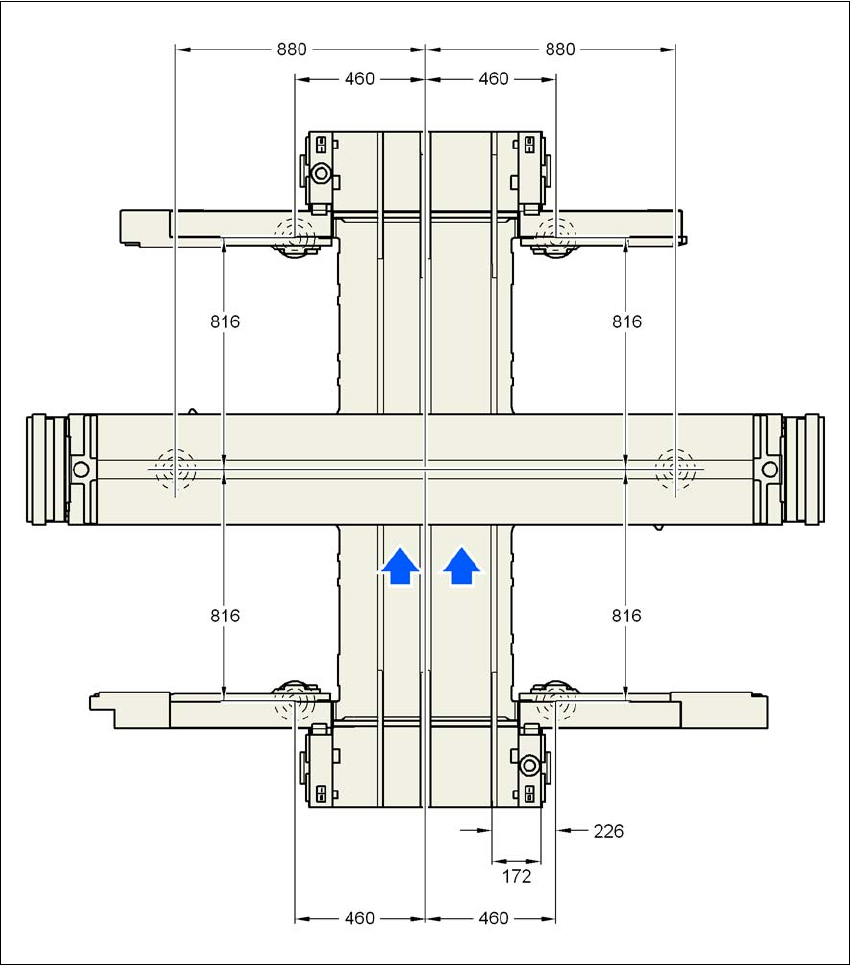

4.3.15.2 Machine foot clearances and the stationary left conveyor edge for the
PCB single conveyor
4
Fig. 4.3 - 23 Machine foot clearances and the stationary left conveyor edge for the PCB single conveyor in millimeters
User Manual SIPLACE X-Series 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the placement machine
297
4.3.15.3 Clearances of the machine feet and the stationary right conveyor edge
for the PCB dual conveyor
4
Fig. 4.3 - 24 Machine foot clearances and the stationary right conveyor edge for the dual PCB conveyorin millimeters
