4.3.16.3 Aligning the placement machine with respect to the line
→ Position the placement machine on the free location on the line using the fork-lift.
WARNING 4
Lower the placement machine slowly. A second person should look underneath to ensure
that all the machine foot touch the floor at the same time. If the machine feet on one side hit
the ground hard, the fixings may be damaged.
4
4.3.16.4 Aligning the placement machine with the air cushion transport system
→ Place the four air cushions of the air cushion transport system beneath the machine frame.
→ Raise the placement machine and align it with respect to the line.
→ Check the distance from the PCB conveyor system of the adjacent machine. It should be be-
tween 1 mm and 3 mm.
→ Lower the placement machine.
4
Fig. 4.3 - 29 Contact positions for the air cushion transport system
(1) Contact surfaces for the air cushion transport system
4 Setting up and commissioning User Manual SIPLACE X-Series
4.3 Setting up the placement machine From software version SR.605.xx 07/2008 EN Edition
304
4.3.17 Making final adjustments to the placement machine
→ Place the machine's spirit level on the rails of the PCB conveyor in placement area 1 in both
the X and the Y directions (see Fig. 4.3 - 30
). The PCB conveyor width is preset:
Single conveyor 210 mm
Dual conveyor, track 1 100 mm
Dual conveyor, track 2 210 mm 4
PLEASE NOTE: 4
On the dual conveyor, place the spirit level only on the outer rails of the machine for adjusting
in the X direction.
→ Measure the distance between the top edge of the PCB conveyor belt and the floor. This dis-
tance should be 800 mm, 900 mm, 930 mm or 950 mm.
4

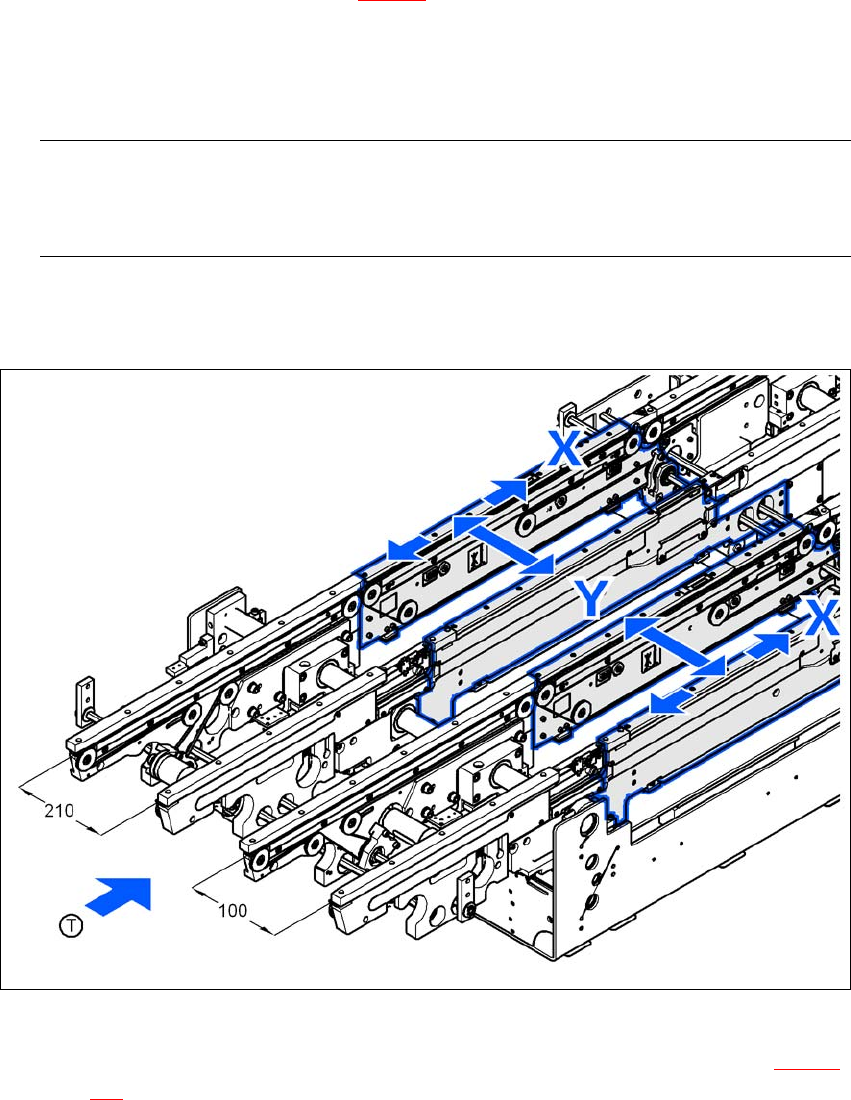

Fig. 4.3 - 30 Adjusting the placement machine in the X and Y directions
→ Use the size 36 fork wrench to adjust the adjusting screw M24x2x120 (item 1 in Fig. 4.3 - 31,
page 305
) so that the label on the machine spirit level does not deviate from the zero point
for the required PCB conveyor height.
User Manual SIPLACE X-Series 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the placement machine
305
4
Fig. 4.3 - 31 Setting the height for the outer machine feet
(1) Adjusting screw M24x2x120 to adjust the height
(2) Outer machine foot
(3) Clamp
(4) M24x90 hexagon socket head screw
→ Check the required PCB conveyor height.
→ If the placement machine has been aligned, use the torque wrench to tighten the hexagon
socket head screws M24x90 (item 4) for holding the clamps on all the outer machine feet
(item 3).
PLEASE NOTE 4
The tightening torque is 130 Nm. The machine may tend to vibrate if a lower tightening torque
is used.
