→ Close the pick-up window (item 3 in Fig. 5.6 - 2) by returning the lever (item 4 in
Fig. 5.6 - 2
) to its original position.
→ Remove loose components from the component table with a brush or use a vacuum
cleaner with appropriate nozzle.
PLEASE NOTE 5
If the component tape is already inserted, cut it off flush with the front edge of the feeder mod-
ule.
→ If the removal handle (item 1) is still protruding, then latch it in place.
5

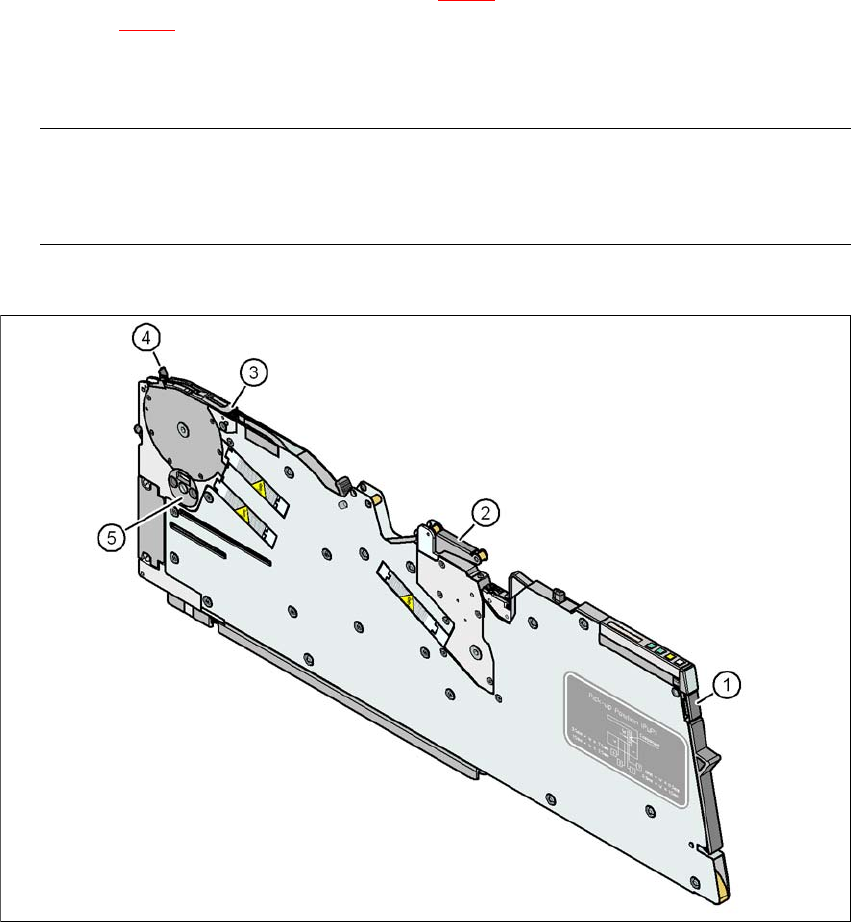

Fig. 5.6 - 2 Check the X feeder module before using it
(1) Removal handle
(2) Cover foil rocker
(3) Pick-up window
(4) Lever for raising and latching the pick-up window
(5) Component disposal compartment
User Manual SIPLACE X-Series 5 Tasks for the operating personnel
From software version SR.605.xx 07/2008 EN Edition 5.6 Setting up the feeder modules
341
5.6.3.2 Inserting the X feeder module into the component table
5

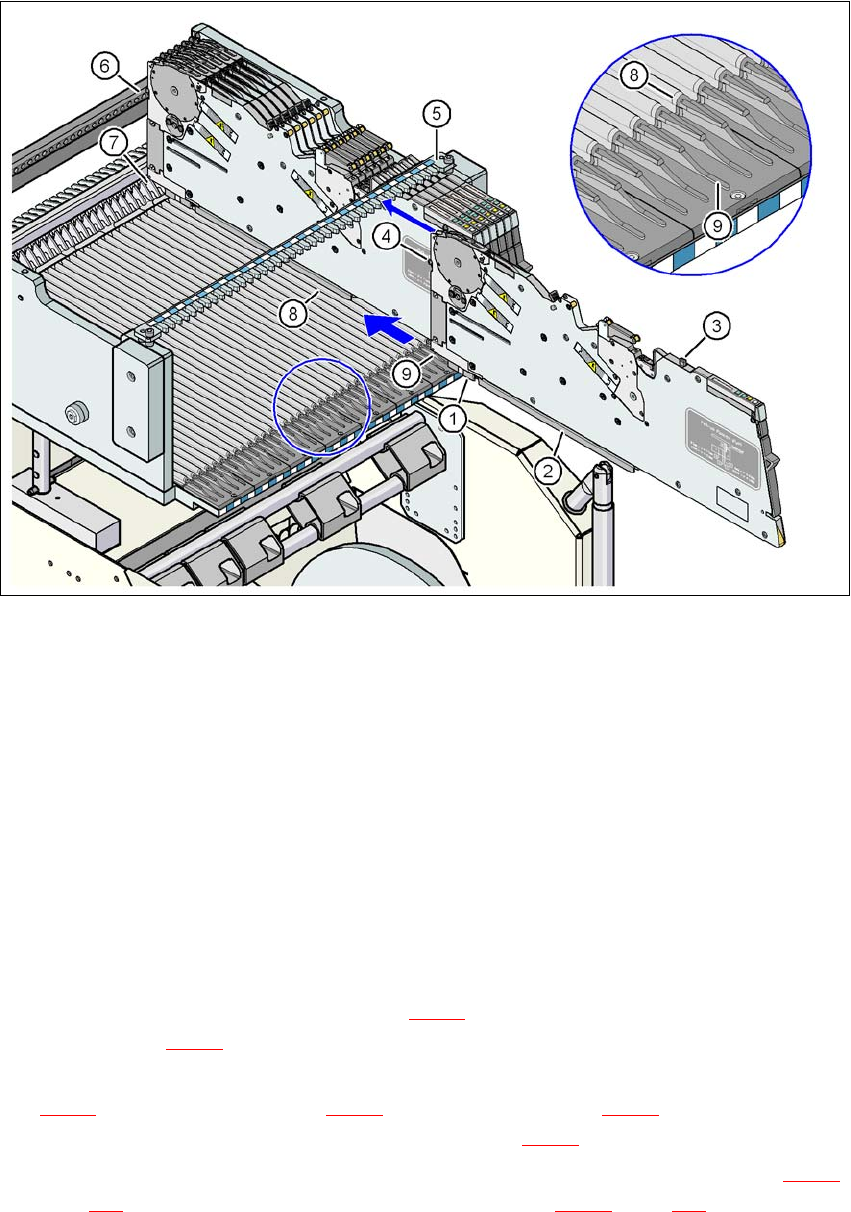

Fig. 5.6 - 3 Inserting the X feeder module into the component table
(1) Front slider guide for the X feeder module
(2) Back slider guide for the X feeder module
(3) "Back" centering pin on the X feeder module
(4) "Front" centering pin on the X feeder module
(5) Recesses in the centering bar for holding the "back" centering pin
(6) Centering holes on the component table for holding the "front" centering pin
(7) Locking latches
(8) Guide profile for the component table (Ω profile)
(9) Insertion aid for the feeder module
5
→ Place the front slider guide (item 1 in Fig. 5.6 - 3) of the feeder module on the insertion aid
(item 9 in Fig. 5.6 - 3
) of the component table.
→ Hold the feeder module vertically and push it forward, along the guide profile (item 8 in Fig.
5.6 - 3
). The front (item 1 in Fig. 5.6 - 3) and rear (item 2 in Fig. 5.6 - 3) slider guides of the
feeder module slide on the guide profile (item 8 in Fig. 5.6 - 3
).
→ Carefully push the feeder module further until the "front" centering pin (item 4 in Fig. 5.6 - 3
,
page 341
) is pushed into the centering hole (item 6 in Fig. 5.6 - 3, page 341).
5 Tasks for the operating personnel User Manual SIPLACE X-Series
5.6 Setting up the feeder modules From software version SR.605.xx 07/2008 EN Edition
342
→ Check the "back" centering pin (item 3 in Fig. 5.6 - 3, page 341) of the feeder module as you
do so. This must slide easily into the recess (item 5) in the centering bar, otherwise the feeder
module is not seated vertically on the component table or it was not placed on the guide pro-
file (item 8 in Fig. 5.6 - 3
, page 341) correctly.
→ When the feeder module is at the stop position, the locking latch (item 7 in Fig. 5.6 - 3
, page
341
) latches on the locking roller of the feeder module (item 1 in Fig. 3.9 - 1, page 166). If you
have forgotten to engage the removal handle (item 1 in Fig. 5.6 - 2
, page 340), the status dis-
play on the feeder module's operator panel will light up red after a few seconds. The LCD dis-
play contains the error message "Handle --->>" (see Fig. 5.7 - 1
, page 351).
→ Engage the removal handle (item 1 in Fig. 5.6 - 2
, page 340). The feeder module's status
display now lights up green and the feeder module is on standby. The track number and
conveyor increment can be read on the LCD display once more.
5.6.4 Placing component tape on the X feeder module
5.6.4.1 Checking the X tape feeder module
→ When you place the component tape in the feeder module, first check whether there are
any components in the vicinity of the pick-up window (item 2 in Fig. 5.6 - 5
, page 344).
→ Remove any components that you find since they could cause a fault.
5.6.4.2 Preparing the component tape for insertion
→ Check that there is a straight cut edge at the start of the component tape.
→ If the transport holes are torn or bent, cut off this part of the tape.
→ Also make sure that there are no streaks of adhesive on the cover foil.
→ Pull around 30 cm cover foil away from the component tape if this does not expose any
components.
PLEASE NOTE 5
Use an SMD tape threader if there is insufficient cover foil available to make sure that no com-
ponents are lost:
for the 8 mm component tape:item no. 00355265-xx
for the 12 mm component tape:item no. 00356342-xx
→ Shorten the component tape with the now exposed component pockets by around 3 cm.
→ Remove the components from the open tape pockets.
→ Wrap the cover foil around the front edge of the tape along the bottom of the tape.
