5.6.4.4 Tape support for 8 mm X tape feeder module
5

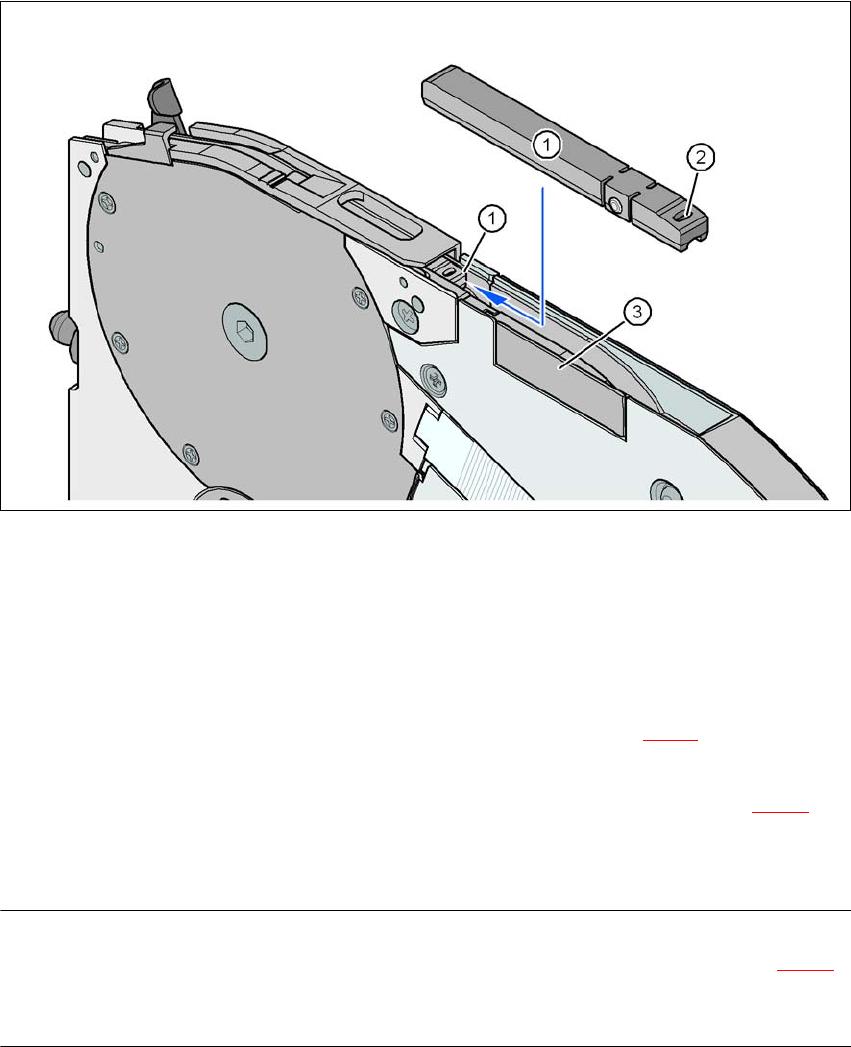

Fig. 5.6 - 8 8 mm X feeder module - tape support and splice sensor
(1) Tape support, removable
(2) Oval opening in the tape support
(3) Splice sensor installation location
The 8 mm X feeder module is equipped with a tape support (item 1 in Fig. 5.6 - 8
). It can easily be
removed if necessary.
→ Insert the tang of a watchmaker's screwdriver into the oval opening (item 2 in Fig. 5.6 - 8
) in
the tape support and pull the tape support out against the direction of travel of the tape.
→ When you insert the tape support, make sure that it engages in its desired position.
PLEASE NOTE 5
For all components size 0402 and smaller, always insert the tape support (item 1 in Fig. 5.6 - 8
)
into the 8 mm X feeder module. This will give you a constant Z pick up height and will minimize
the time needed to correct the pick up heights.
User Manual SIPLACE X-Series 5 Tasks for the operating personnel
From software version SR.605.xx 07/2008 EN Edition 5.6 Setting up the feeder modules
347
5.6.4.5 Splice sensors for X tape feeder modules
Splice sensors can be retrofitted to the X tape feeder modules. There are two versions of the sen-
sor:
Splice sensor for 8 mm and 12 mm X tape feeder modules
Splice sensor for 16 mm to 88 mm X tape feeder modules 5
The splice sensor is installed at the position indicated by item 3 in Fig. 5.6 - 8
, page 346.
Tape feeder modules with a splice sensor already installed can also be supplied (see Section
3.9.2
, from page 168).
5 Tasks for the operating personnel User Manual SIPLACE X-Series
5.6 Setting up the feeder modules From software version SR.605.xx 07/2008 EN Edition
348
5.6.5 Using the S feeder module on the component trolley (HF-series)
5

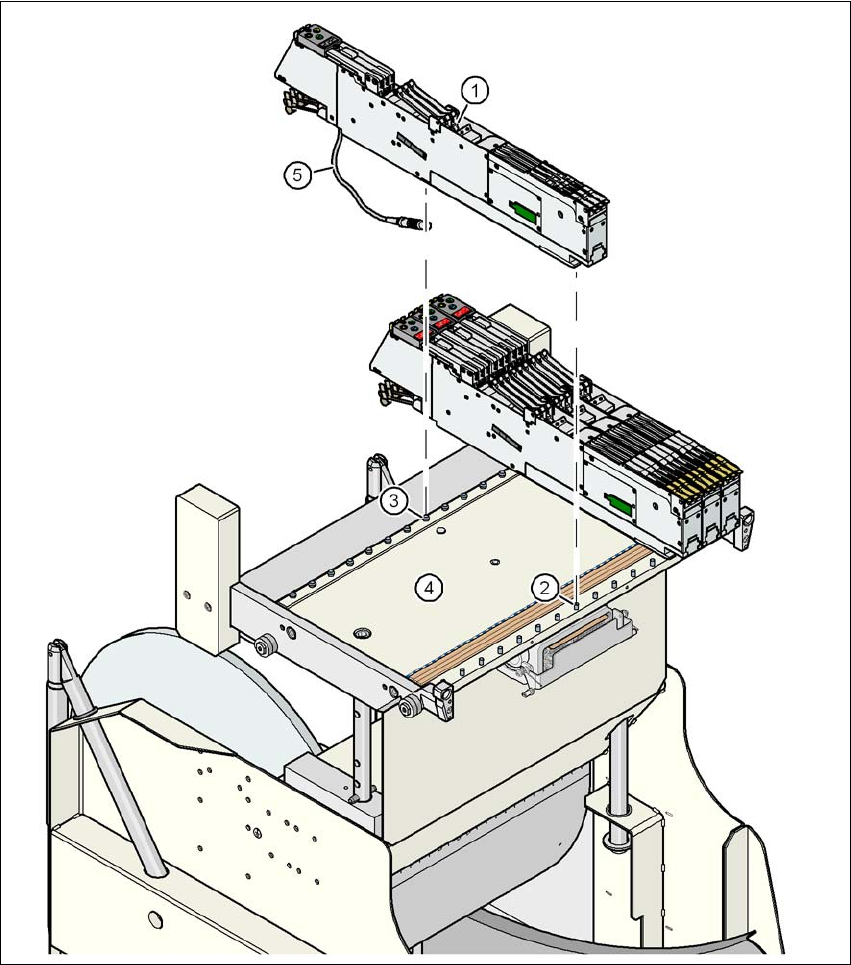

Fig. 5.6 - 9 CO trolley (HF-series) with 15 locations for S feeder modules
(1) S feeder module
(2) Centering pin
(3) Centering ball
(4) Component table
(5) Connecting cable for the S feeder module
