User Manual SIPLACE X-Series 5 Tasks for the operating personnel From software version SR.605.xx 07/2008 EN Edition 5.11 Docking the component trolley in or out 359 The safety concept for the comp onent trolley change re…
5 Tasks for the operating personnel User Manual SIPLACE X-Series
5.11 Docking the component trolley in or out From software version SR.605.xx 07/2008 EN Edition
358
5.11 Docking the component trolley in or out
5.11.1 Safety instructions for docking component trolleys in and out
WARNING 5
To prevent accidents (risk of crushing), the component trolley may only be docked in or out by
one person.
5

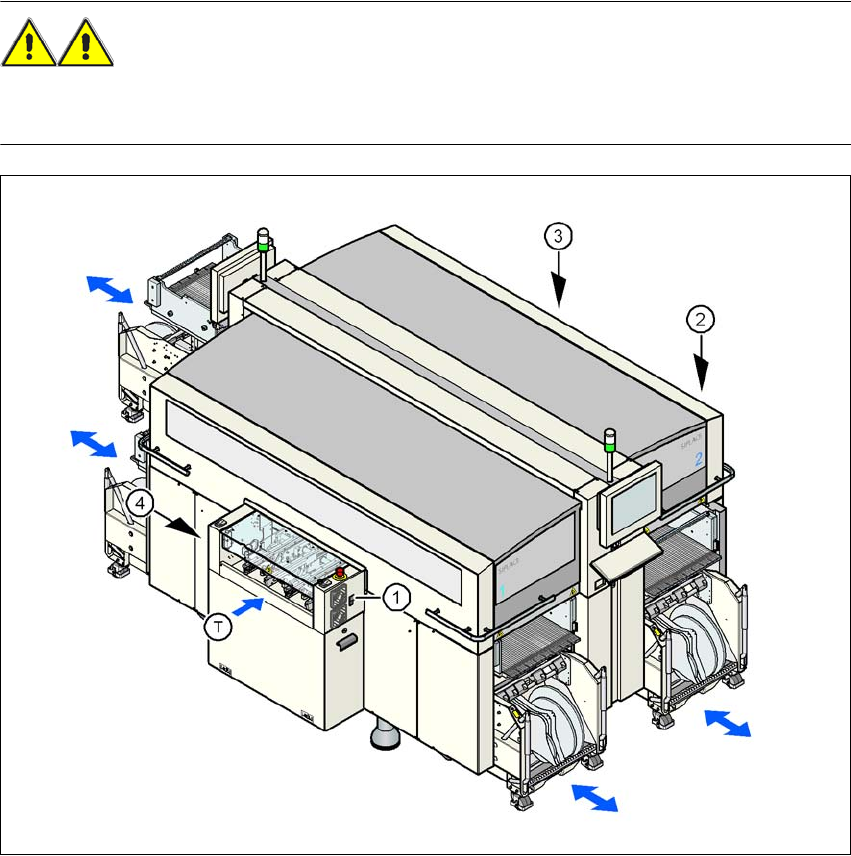

Fig. 5.11 - 1 Safety instructions for docking the component trolley in or out
(1) Button for docking the component trolley in or out, location 1
(2) Button for docking the component trolley in or out, location 2
(3) Button for docking the component trolley in or out, location 3
(4) Button for docking the component trolley in or out, location 4
(T) Direction of PCB transport
User Manual SIPLACE X-Series 5 Tasks for the operating personnel
From software version SR.605.xx 07/2008 EN Edition 5.11 Docking the component trolley in or out
359
The safety concept for the component trolley change requires the operator to press a button (item
1, 2, 3 or 4 in Fig . 5.11 - 1
, page 358) on the input or output side of the machine in order to dock
the component trolley in or out. This ensures that the operator is always standing to the side of
the placement machine. In addition, the component trolley can only be docked in if the protective
covers are closed.
5.11.2 Docking out the component trolley
→ Press one of the buttons on the input or output side of the machine (item 1, 2, 3 or 4 in Fig.
5.11 - 1
, page 358) until the CO trolley is docked out fully.
→ Swivel the two handles up (item 1 in Fig. 5.11 - 2
).
5
Fig. 5.11 - 2 Component trolley - swivel handles up to push
→ With both hands on the handles, pull the component trolley out of the placement machine.
5.11.3 Safety instructions for moving the component trolley
WARNING
To prevent accidents, ALWAYS follow the rules listed below when you move the component trol-
ley.
→ Always hold the handles with both hands when you want to move the component trolley.
5 Tasks for the operating personnel User Manual SIPLACE X-Series
5.11 Docking the component trolley in or out From software version SR.605.xx 07/2008 EN Edition
360
→ Remember that a component trolley with the full complement of feeder modules can tip over
sideways or forward on gradients of 20° or more.
→ Make sure that the surface on which the trolley is moved has a significantly smaller gradient.
→ Be careful not to collide with obstacles. The trolley could tip forward if it is traveling fast
enough.
5.11.4 Docking the X-series component trolley
5
Fig. 5.11 - 3 Component trolley and component trolley docking unit, SIPLACE X-series
(1) Component trolley docking unit, SIPLACE X-series
(2) Component trolley, SIPLACE X-series
(3) Locking latches
