User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
379
6.1.2 Nozzle changer for the 12-segment Collect&Place head
Item no. 00119661-xx Nozzle changer, HF/X/D3, 12-segment C&P head
6

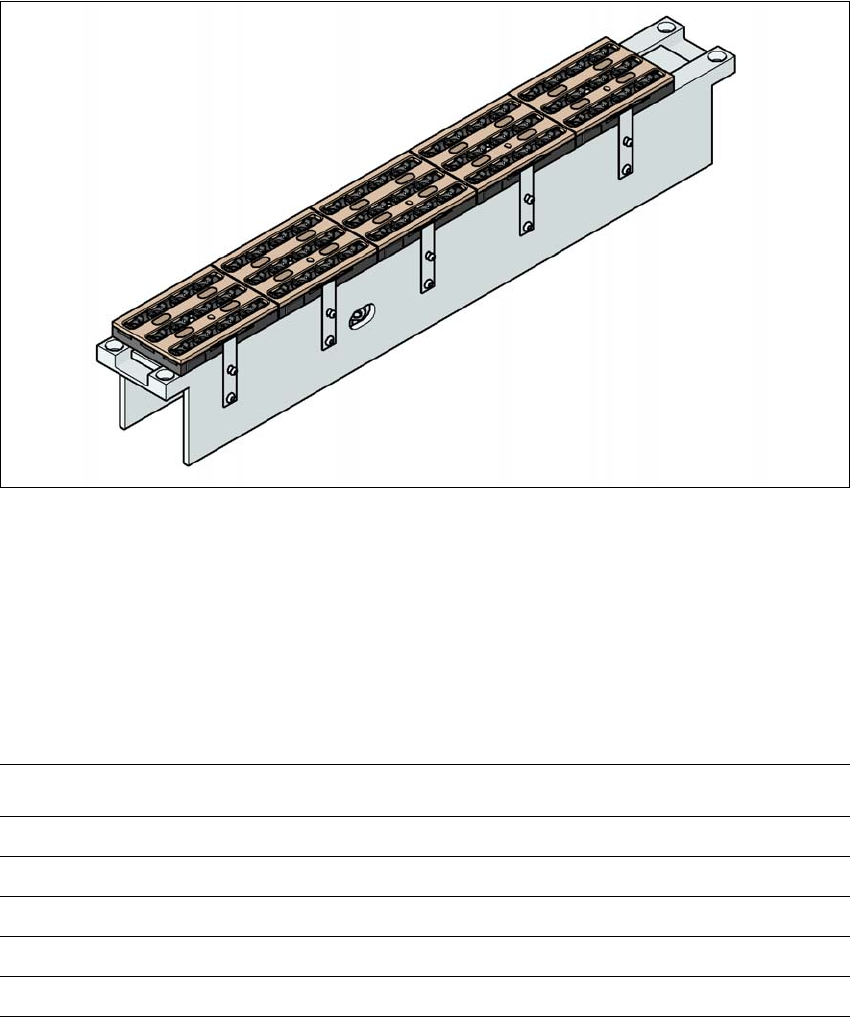

Fig. 6.1 - 9 Nozzle changer for the 12-segment Collect&Place head
6.1.2.1 Description
This nozzle changer can hold up to 5 magazines, each with 12 nozzle holders. The magazines
are seated on a common support. They are centered using two parallel pins and fixed in place with
clips.
6.1.2.2 Technical data
6
Nozzle changer for the 12-nozzle Collect&Place head
Dimensions (length x width x height) 449 x 62.7 x 77.7 mm³
Number of nozzle holders 60
Nozzle types 9 xx
Nozzle changeover time approx. 2 sec. per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
6 Station extensions User Manual SIPLACE X-Series
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
380
6.1.2.3 Position of the nozzle changers for the C&P12 head on the X4 machine
1 or 2 nozzle changers may be installed at locations 1, 2, 3, and 4 for the 12-segment Col-
lect&Place head (items 1 and 2 in Fig. 6.1 - 10
). This gives a total capacity of 8 nozzle changers
with 40 magazines and a total of 480 nozzle holders.
6

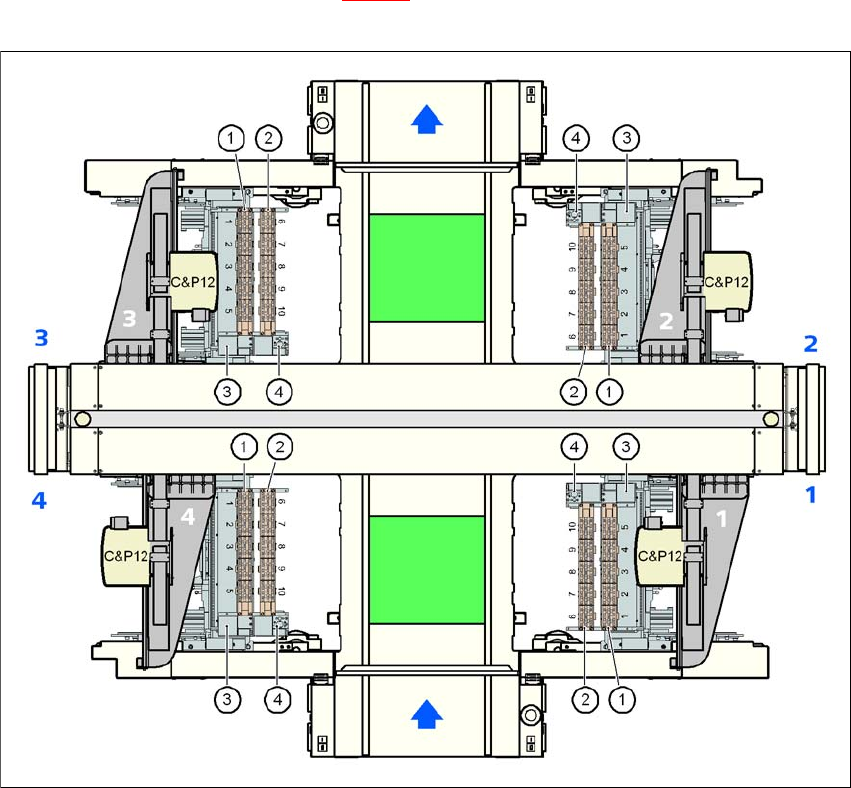

Fig. 6.1 - 10 Position of the nozzle changer for the 12-segment Collect&Place head on the X4 machine
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
381
6.1.2.4 Position of the nozzle changers for the C&P12 head on the X3 machine
1 or 2 nozzle changers may be installed at locations 1, 3, and 4 for the 12-segment Collect&Place
head (items 1 and 2 in Fig. 6.1 - 11
). One nozzle changer may be installed at location 2. This gives
a total capacity of 7 nozzle changers with 35 magazines and a total of 420 nozzle holders.
6

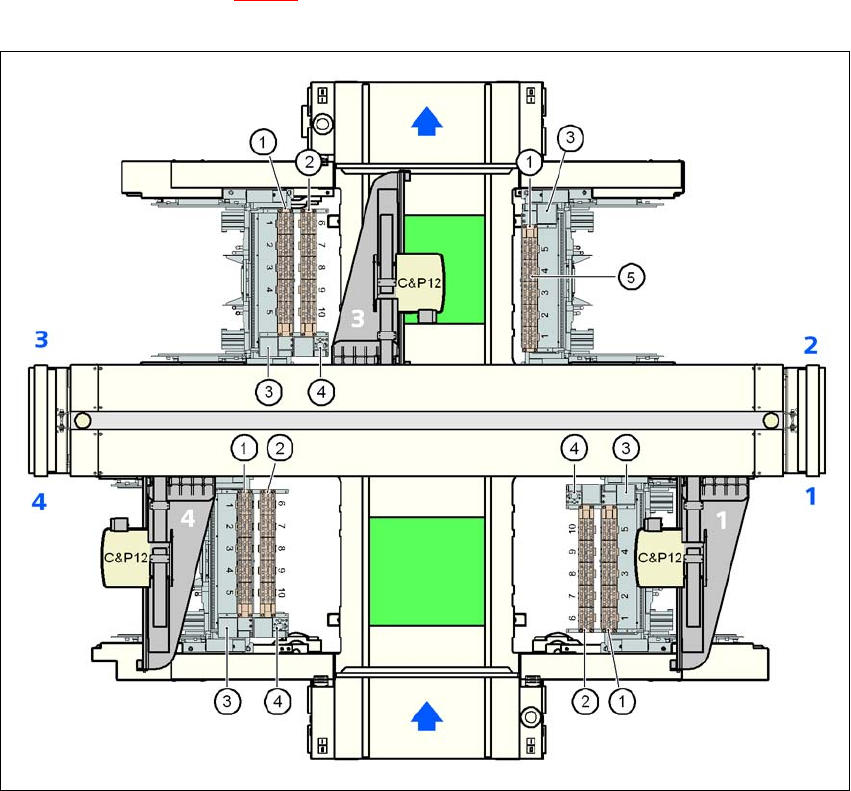

Fig. 6.1 - 11 Position of the nozzle changer for the 12-segment Collect&Place head on the X3 machine
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
