6.1.2.4 Position of the nozzle changers for the C&P12 head on the X3 machine
1 or 2 nozzle changers may be installed at locations 1, 3, and 4 for the 12-segment Collect&Place
head (items 1 and 2 in Fig. 6.1 - 11
). One nozzle changer may be installed at location 2. This gives
a total capacity of 7 nozzle changers with 35 magazines and a total of 420 nozzle holders.
6

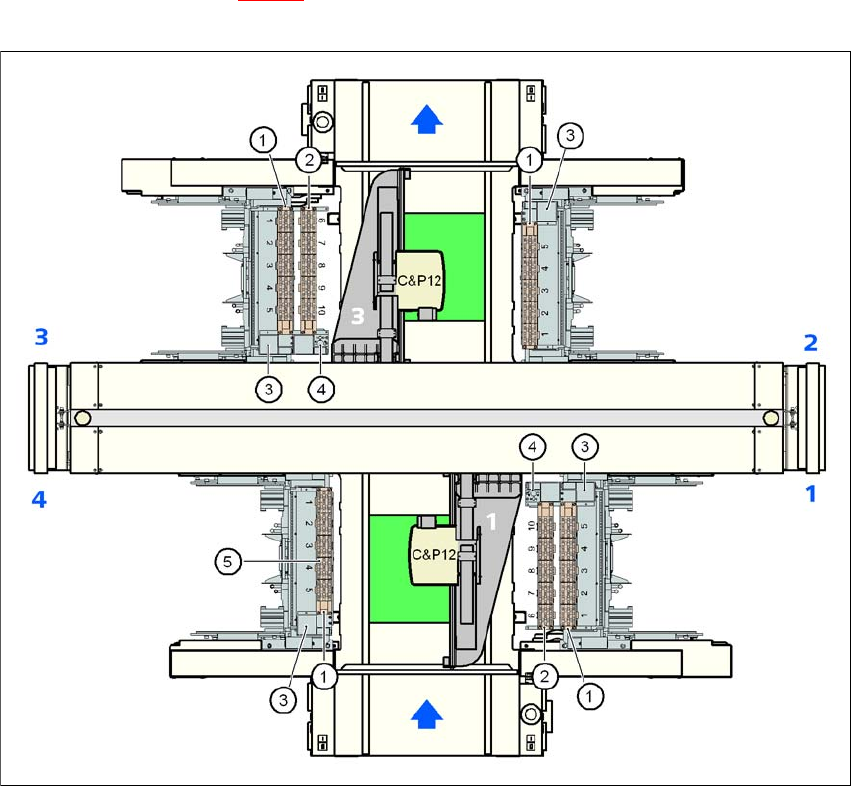

Fig. 6.1 - 11 Position of the nozzle changer for the 12-segment Collect&Place head on the X3 machine
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
6 Station extensions User Manual SIPLACE X-Series
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
382
6.1.2.5 Position of the nozzle changers for the C&P12 head on the X2 machine
1 or 2 nozzle changers may be installed at locations 1 and 3 for the 12-segment Collect&Place
head (items 1 and 2 in Fig. 6.1 - 12
). A nozzle changer may be installed at locations 2 and 4. This
gives a total capacity of 6 nozzle changers with 30 magazines and a total of 360 nozzle holders.
6
Fig. 6.1 - 12 Position of the nozzle changer for the 12-segment Collect&Place head on the X2 machine
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
383
6.1.2.6 Assembly
"Row 1" nozzle changers (see Figs. 6.1 - 10, 6.1 - 11 and 6.1 - 12 from page 380) are each fixed
to the component trolley docking unit. There is an additional assembly kit for the "row 2" nozzle
changer. This kit consists of the take-off device and the nozzle reject bin (see Section 6.1.2.10
,
page 387
).
6
Fig. 6.1 - 13 Assembly position
(1) Spring hook pointing toward the operator
(2) Retaining clamp pointing toward the PCB conveyor
→ Align the nozzle changer so that the moving spring hooks always point toward the operator,
while the retaining clamps always point toward the PCB conveyor.
WARNING 6
– Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
