6 Station extensions User Manual SIPLACE X-Series 6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition 388 6.1.3 Nozzle changer for the 6-segment Collect&Place head Item no. 001 1966 2-xx Nozzle chan…
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
387
6.1.2.10 "Row 2" nozzle changer for the 12-segment Collect&Place head
Item no. 00119663-xx Nozzle changer 2, HF/X/D3, 12-segment Collect&Place head
The "row 2" nozzle changer may be installed at the following locations:
X4 placement machine:Locations 1, 2, 3 and 4 (see Fig. 6.1 - 10
, page 380)
X3 placement machine:Locations 1, 3 and 4 (see Fig. 6.1 - 11
, page 381)
X2 placement machine:Locations 1 and 3 (see Fig. 6.1 - 12
, page 382)
The retrofit package contains an assembly kit and a nozzle take-off device with reject bin, in ad-
dition to the nozzle changer.
6
Fig. 6.1 - 16 Assembly kit for the "row 2" nozzle changer
(1) Assembly kit for the "row 2" nozzle changer
(2) Nozzle take-off device for type 8xx nozzles
(3) Nozzle take-off device for type 9xx nozzles
(4) Nozzle reject bin
6 Station extensions User Manual SIPLACE X-Series
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
388
6.1.3 Nozzle changer for the 6-segment Collect&Place head
Item no. 00119662-xx Nozzle changer , HF/X/D3, 6-segment Collect&Place head
6
Fig. 6.1 - 17 Nozzle changer for the 6-segment Collect&Place head
6.1.3.1 Description
This nozzle changer can hold up to 6 magazines, each with 6 nozzle holders. There are two types
of magazine available: magazines for type 8xx nozzles and magazines for type 9xx nozzles. The
magazines are seated on a common support. They are centered using two parallel pins and fixed
in place with clips.
6.1.3.2 Technical data
6
Nozzle changer for the 6-nozzle Collect&Place head
Dimensions (length x width x height) 448 x 122.5 x 97.7 mm³
Number of nozzle holders 36
Nozzle types 8 xx, 9 xx
Nozzle changeover time approx. 2s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
389
6.1.3.3 Position of the nozzle changers for the C&P6 head on the X4 machine
1 or 2 nozzle changers may be installed at locations 1, 2, 3, and 4 for the 6-segment Collect&Place
(items 1 and 2 in Fig. 6.1 - 18
, page 389). This gives a total capacity of 8 nozzle changers with 48
magazines and a total of 288 nozzle holders.
6

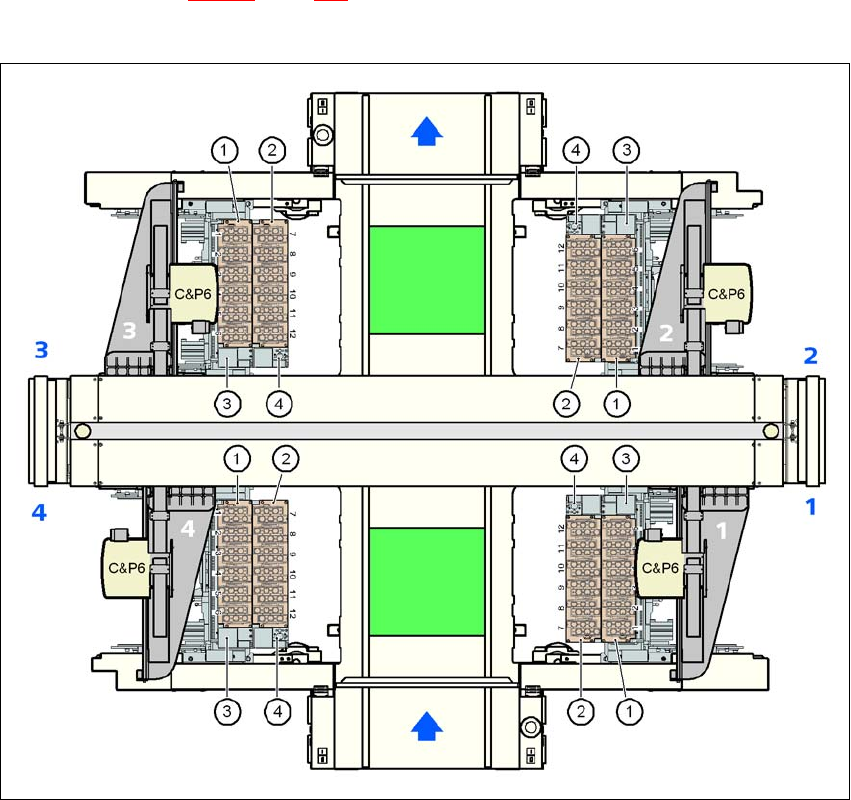

Fig. 6.1 - 18 Position of the nozzle changers for the C&P6 head on the X4 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
