User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
389
6.1.3.3 Position of the nozzle changers for the C&P6 head on the X4 machine
1 or 2 nozzle changers may be installed at locations 1, 2, 3, and 4 for the 6-segment Collect&Place
(items 1 and 2 in Fig. 6.1 - 18
, page 389). This gives a total capacity of 8 nozzle changers with 48
magazines and a total of 288 nozzle holders.
6
Fig. 6.1 - 18 Position of the nozzle changers for the C&P6 head on the X4 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
6 Station extensions User Manual SIPLACE X-Series
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
390
6.1.3.4 Position of the nozzle changers for the C&P6 head on the X3 machine
1 or 2 nozzle changers may be installed at locations 1, 3, and 4 for the 6-segment Collect&Place
head (items 1 and 2 in Fig. 6.1 - 19
). One nozzle changer may be installed at location 2. This gives
a total capacity of 7 nozzle changers with 42 magazines and a total of 252 nozzle holders.
6

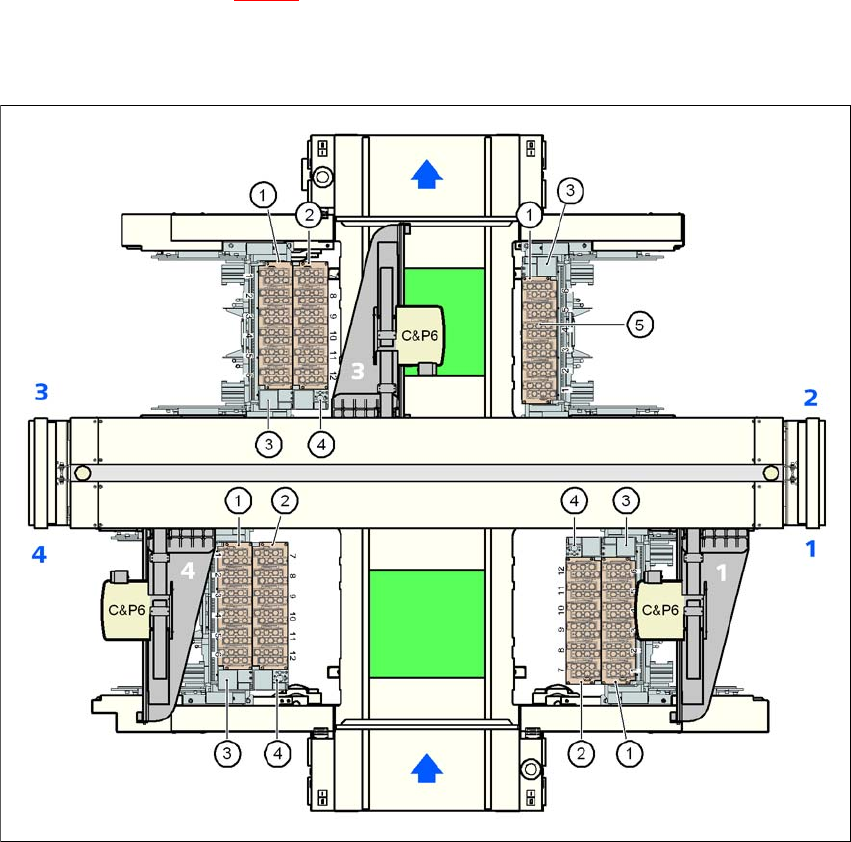

Fig. 6.1 - 19 Position of the nozzle changers for the C&P6 head on the X3 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
391
6.1.3.5 Position of the nozzle changers for the C&P6 head on the X2 machine
1 or 2 nozzle changers may be installed at locations 1 and 3 for the 6-segment Collect&Place head
(items 1 and 2 in Fig. 6.1 - 20
). A nozzle changer may be installed at locations 2 and 4. This gives
a total capacity of 6 nozzle changers with 36 magazines and a total of 216 nozzle holders.
6

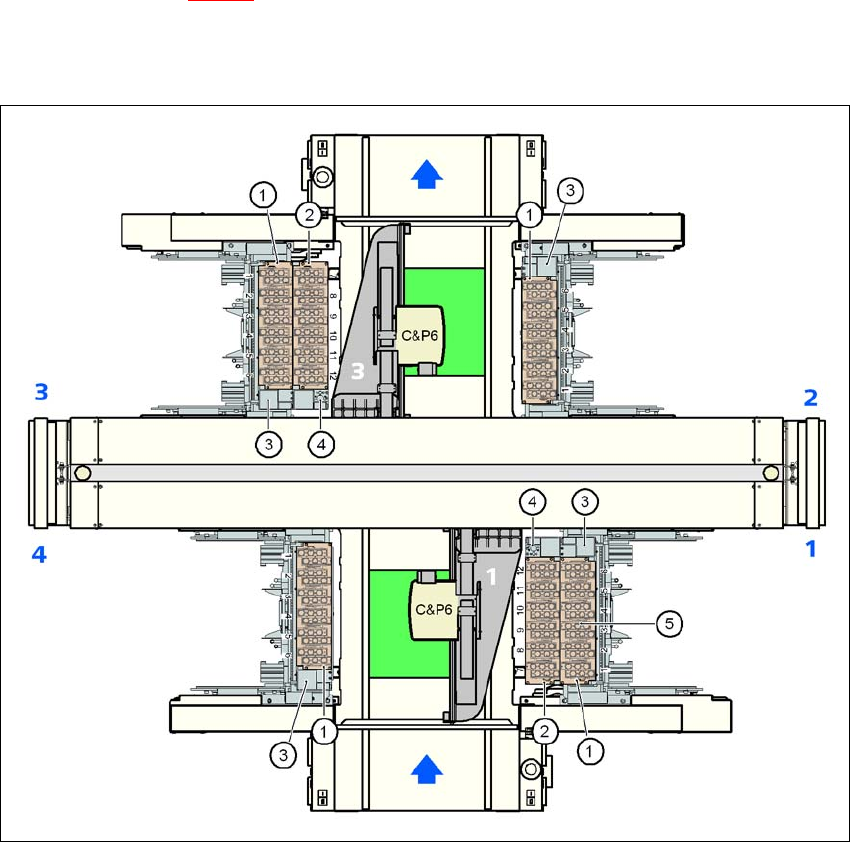

Fig. 6.1 - 20 Position of the nozzle changers for the C&P6 head on the X2 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
