6 Station extensions User Manual SIPLACE X-Series 6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition 392 6.1.3.6 Assembly The "Row 1" nozzle changer (see Figs. 6.1 - 18 , 6.1 - 19 and 6.1 - 2…
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
391
6.1.3.5 Position of the nozzle changers for the C&P6 head on the X2 machine
1 or 2 nozzle changers may be installed at locations 1 and 3 for the 6-segment Collect&Place head
(items 1 and 2 in Fig. 6.1 - 20
). A nozzle changer may be installed at locations 2 and 4. This gives
a total capacity of 6 nozzle changers with 36 magazines and a total of 216 nozzle holders.
6
Fig. 6.1 - 20 Position of the nozzle changers for the C&P6 head on the X2 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
6
6 Station extensions User Manual SIPLACE X-Series
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
392
6.1.3.6 Assembly
The "Row 1" nozzle changer (see Figs. 6.1 - 18, 6.1 - 19 and 6.1 - 20 from page 389) is fixed to
the component trolley docking unit. There is an additional assembly kit for the "row 2" nozzle
changer. This kit consists of the take-off device and the nozzle reject bin (see Section 6.1.3.10
,
page 396
).
6

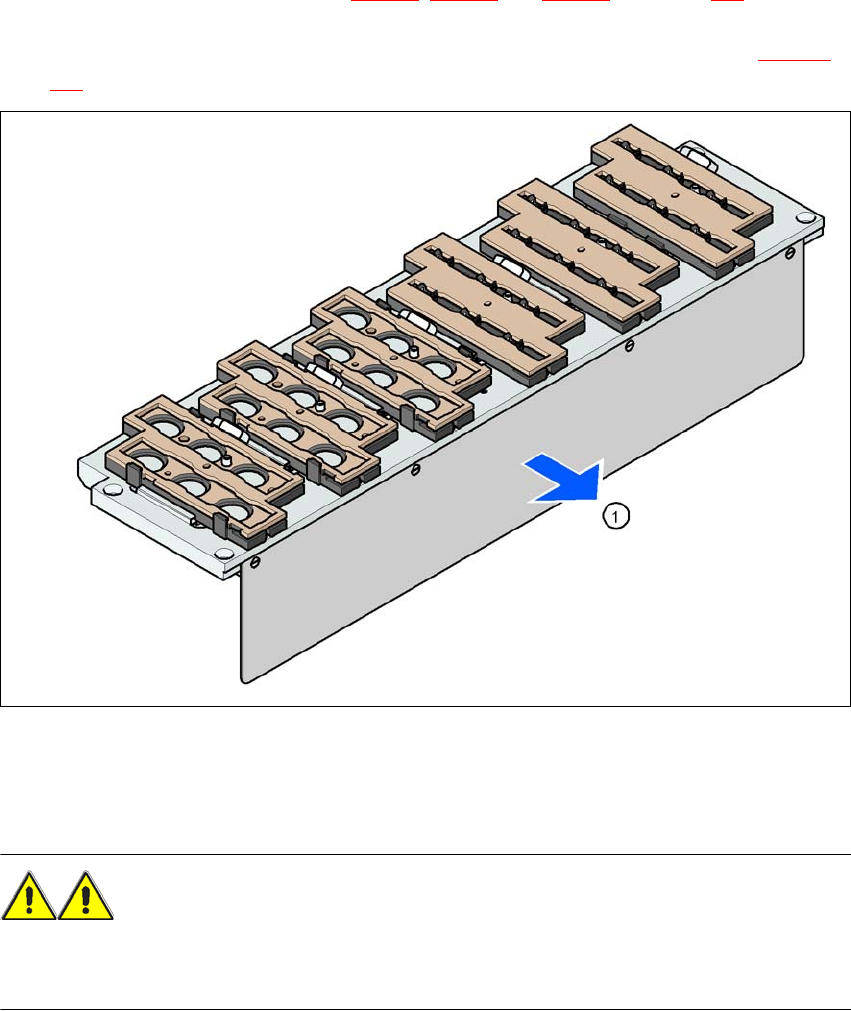

Fig. 6.1 - 21 Assembly position
(1) Cover plate pointing toward the PCB conveyor
→ Align the nozzle changer so that the cover plate (item 1) points toward the PCB conveyor.
WARNING 6
– Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
393
6.1.3.7 Notes on operation
→ The magazines can be filled with different nozzle types within a nozzle family: 8x magazine,
for example, with nozzle types 821, 822, 823, 9x magazine with types 911, 914, etc.
PLEASE NOTE 6
Fill the magazines off the machine and always replace complete magazines. 6
→ Open the locking plate and place the nozzles in the nozzle holders.
→ Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 6
Before you fill magazine, make sure that all the nozzles on the Collect&Place head have
been returned to their magazines. 6
→ Programming the nozzle changer is described in the SIPLACE Pro user manual.
PLEASE NOTE 6
→ Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate.
→ Do not allow components to drop onto free feeder module locations. They will stick to the mag-
netic bar. Production may have to be interrupted if the feeder modules are not placed on the
component table correctly. You should therefore regularly clean the magazines and free loca-
tions.
