User Manual SIPLACE X-Series 6 Station extensions From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer 403 6.1.4.8 Nozzle changer 2 for the T winHead Item no. 001 19717-xx Nozzle changer 2, T winHead Thi…
6 Station extensions User Manual SIPLACE X-Series
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
402
6.1.4.7 Nozzle changer for the TwinHead in the placement area with 2 gantries and
docked MTC
Item no. 00119747-xx Nozzle changer for TwinHead upstream of MTC, X-series
The standard nozzle changer for the TwinHead cannot be used with a combination of TwinHead
and MTC in placement areas with two gantries. This affects the following locations:
– X4: locations 2 and 4
– X3: location 4
For this situation there is an optional nozzle changer for the TwinHead in the placement area with
2 gantries and docked MTC.
PLEASE NOTE 6
If you are using this nozzle changer option, please note that the maximum component size is 85
x 85 mm² or 125 x 10 mm².
6

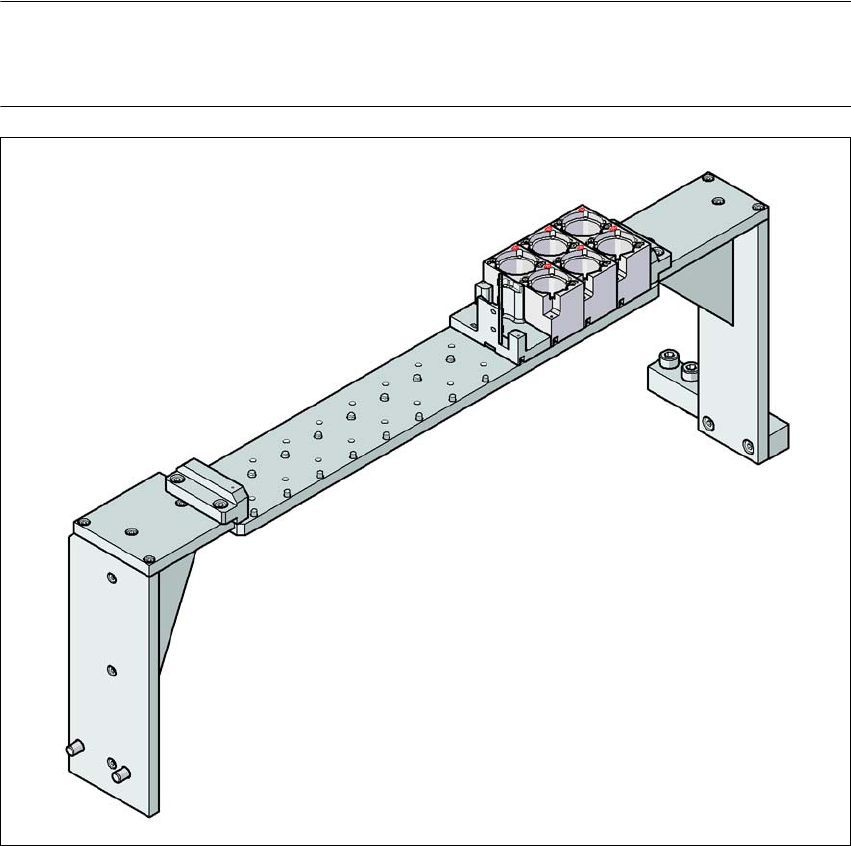

Fig. 6.1 - 30 Nozzle changer for the TwinHead in the placement area with 2 gantries and docked MTC
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
403
6.1.4.8 Nozzle changer 2 for the TwinHead
Item no. 00119717-xx Nozzle changer 2, TwinHead
This nozzle changer can hold up to 10 nozzle magazines. All the other technical data is the same
as for the 1st nozzle changer.
6.1.4.9 Component reject bin for the SIPLACE TwinHead
A component reject bin may be installed for the SIPLACE TwinHead. This is positioned beside the
fine-pitch vision module (see item 4 in Figs. 6.1 - 27
, page 399 and 6.1 - 28, page 400).
6

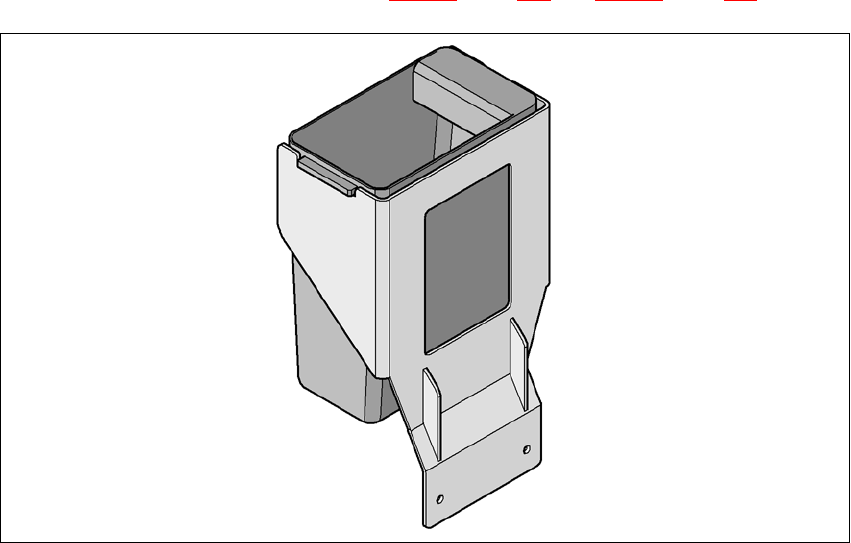

Fig. 6.1 - 31 Component reject bin for the SIPLACE TwinHead
6.1.4.10 Grippers and special nozzles
The SIPLACE placement machines can process components based on through hole technology
and odd-shaped (OSC) components, in addition to the standard SMT spectrum. SIPLACE also
continuously develops special nozzles and grippers in parallel.
Special nozzles are available for all placement heads in order to process placement jobs with max-
imum speed, precision and flexibility. The use of automatic nozzle changers also reduces the set-
up times that occur at a product change.
SIPLACE
can provide mechanical grippers for Pick&Place h
eads. If a component's surface is
not su
itable for sucking up with nozzles, then it can be picked up and placed with mechanical grip-
pers. There are two types of gripper, and their functions can be divided into two groups:
– Grippers that grip the component at its outer edges and
6 Station extensions User Manual SIPLACE X-Series
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
404
– Grippers that grip the component at its inner edge.
Information on special nozzles and grippers is available from SIPLACE. For the production of
special magazines and grippers, again contact SIPLACE.
