6 Station extensions User Manual SIPLACE X-Series
6.2 Docking station for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition
408
6.2.3 Dimensions for the docking station with component trolley docked
6

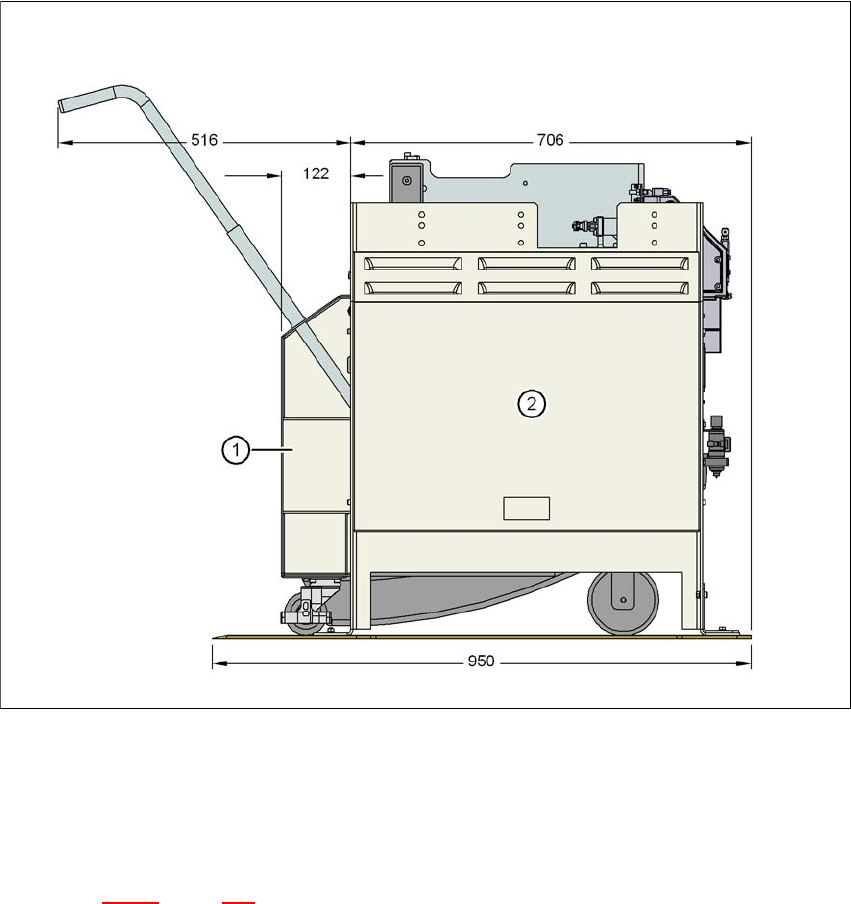

Fig. 6.2 - 3 Docking station with component trolley docked - dimensions in millimeters
(1) Component trolley
(2) Docking station
Key to fig. 6.2 - 4
, page 409.
(1) Main power supply indicator lamp
(2) Button for locking and releasing all the feeder modules on the component trolley
(3) Horizontal tensioner for fixing the component table lever in the "closed" position
(4) Label showing switches S1 and S2 for CAN bus addressing
(5) Switches S1 and S2 for setting the CAN bus address
(6) Power switch
(7) Rotary knob for setting the operating pressure
(8) Manometer for displaying the operating pressure
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.2 Docking station for the component trolley from the SIPLACE X-series
409
6.2.4 Controls and displays
6

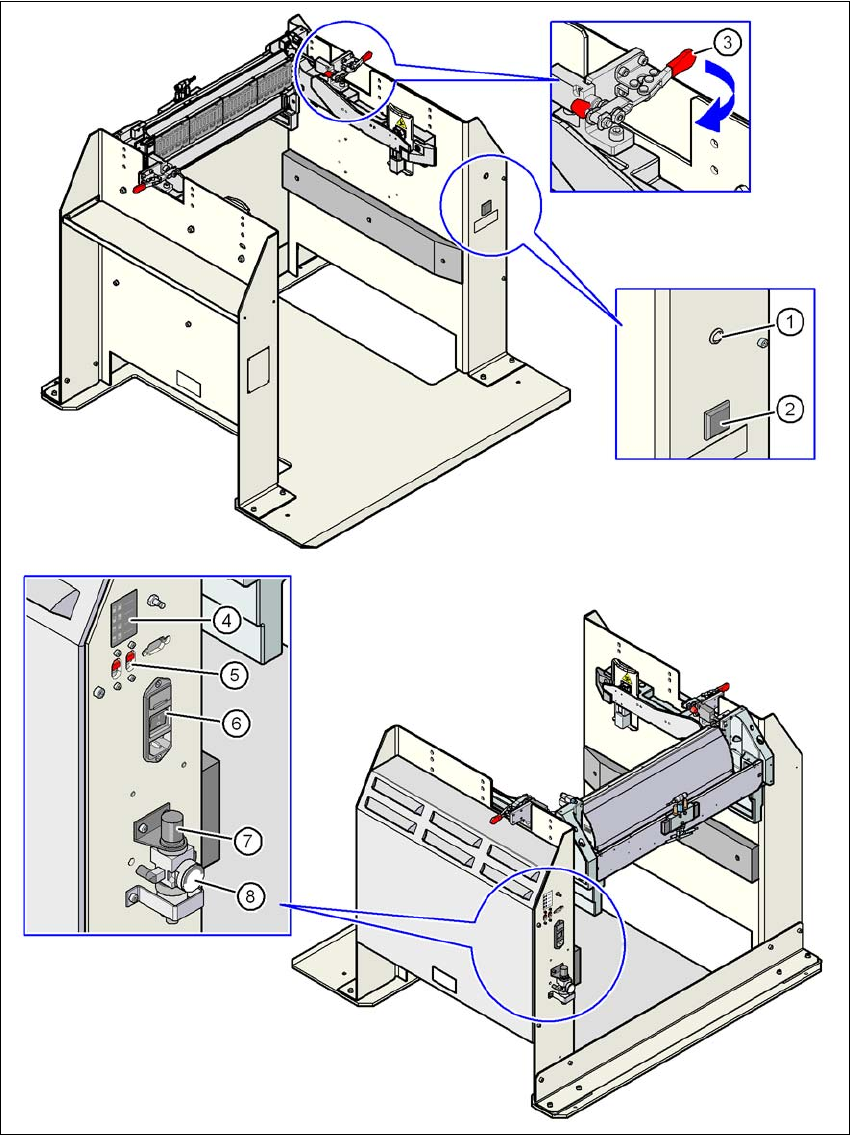

Fig. 6.2 - 4 Docking station - Controls and displays
6 Station extensions User Manual SIPLACE X-Series
6.2 Docking station for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition
410
6.2.5 Adapting the docking station to the PCB conveyor height
The component trolley docking unit can be adjusted to PCB conveyor heights of 830 mm, 900 mm,
930 mm and 950 mm in just a few simple actions.
6

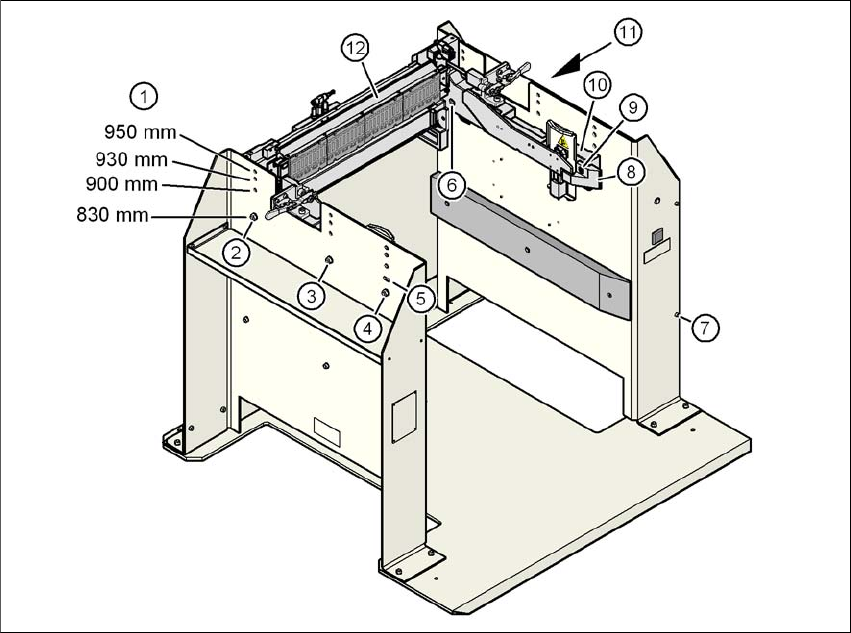

Fig. 6.2 - 5 Adapting the component trolley docking unit to the PCB conveyor heights
(1) Holes for the PCB conveyor height
(2) Hexagonal nut M8 and washer, 2x
(3) Hexagonal nut M8 and washer, 2x
(4) Hexagonal nut M8 and washer, 2x
(5) Slot for height adjustment
(6) Hexagon socket head screw M8x40, 6x
(7) Hexagon socket head screw M5x12, 4x
(8) Guide
(9) Hexagon socket head screw M8x18, 2x
(10) Side section, component trolley docking unit
(11) Panelling on the docking station
(12) Feeder module control unit (FCU)
