6 Station extensions User Manual SIPLACE X-Series 6.2 Docking station for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition 414 → Hold the component docking unit firmly at…
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.2 Docking station for the component trolley from the SIPLACE X-series
413
PLEASE NOTE 6
Reverse the sequence to convert from a height of 900 mm to 830 mm (see Fig. 6.2 - 6
, page
411).

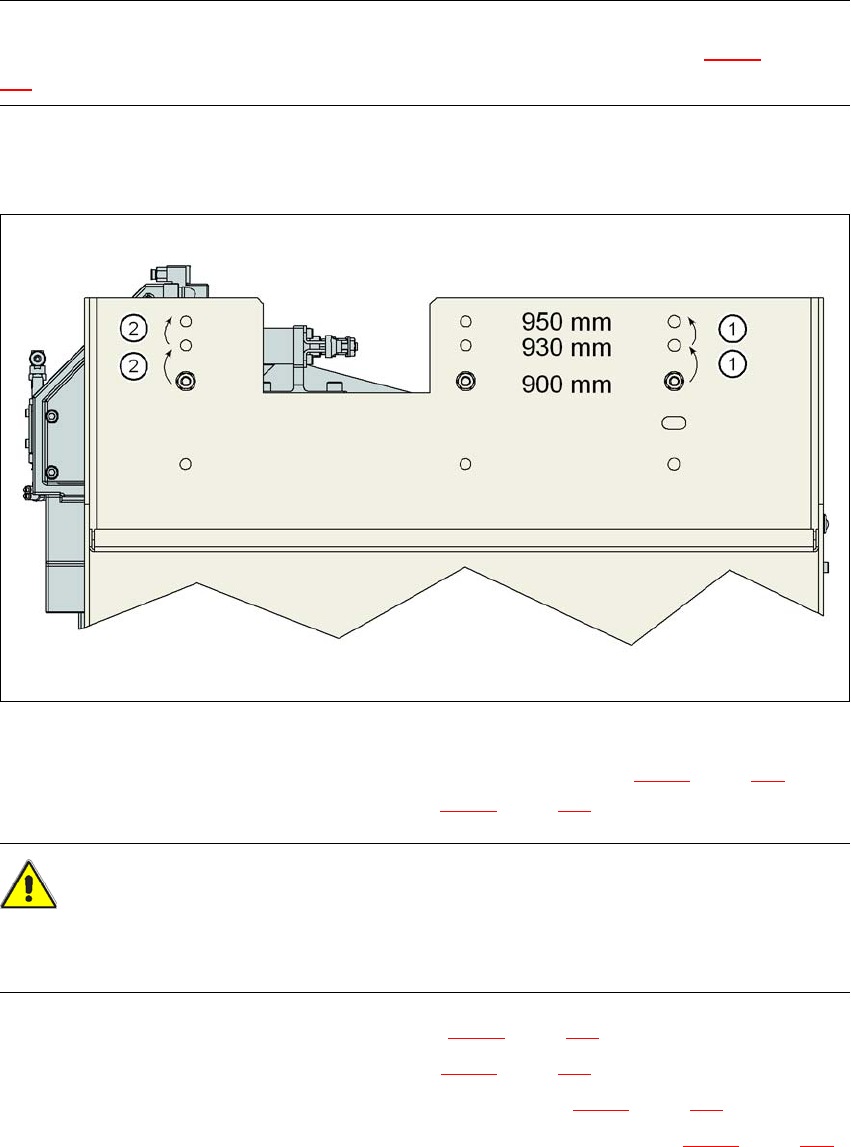

6.2.5.4 Converting the component trolley docking unit to a height of 900, 930 or 950 mm
6
Fig. 6.2 - 7 Steps for conversion from a height of 830 mm to a height of 900 mm
→ Remove the two hexagon socket head screws M8x18 (item 9 in Fig. 6.2 - 5, page 410) and
remove the left and right guides (item 8 in Fig. 6.2 - 5
, page 410).
CAUTION 6
Be careful not to damage any cables while raising and lowering the component trolley docking
unit.
→ Release both screw connections (item 3 in Fig. 6.2 - 5
, page 410).
→ Loosen both screw connections (item 2 in Fig. 6.2 - 5
, page 410).
→ Remove both M8 hexagonal nuts and washers (item 4 in Fig. 6.2 - 5
, page 410).
→ Hold the component docking unit firmly at the side section (item 10 in Fig. 6.2 - 5
, page 410)
and remove both M8x40 hexagon socket head screws at this location.
→ Swivel the component trolley docking unit to the next highest position.
→ Fasten the side section at this location. Only hand-tighten the nuts.
6 Station extensions User Manual SIPLACE X-Series
6.2 Docking station for the component trolley from the SIPLACE X-series From software version SR.605.xx 07/2008 EN Edition
414
→ Hold the component docking unit firmly at the FCU (item 12 in Fig. 6.2 - 5, page 410) and re-
move the screw connections at item 2 in Fig. 6.2 - 5
, page 410.
→ Swivel the component trolley docking unit into the next highest position.
→ Fasten the side section at this location.
→ Check all screw connections at items 2, 3 and 4 for form seating.
→ Fix the left and right guides (item 8 in Fig. 6.2 - 5
, page 410) using the hexagon socket head
screw M8x18 (item 9 in Fig. 6.2 - 5
, page 410).
PLEASE NOTE 6
Reverse the sequence (see Fig. 6.2 - 6
, page 411) if the component trolley docking unit should
be brought down to a lower transport height.
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Matrix tray changer
415
6.3 Matrix tray changer
Item no. 00116438-xx SIPLACE matrix tray changer (MTC)
6.3.1 Safety instructions
WARNING 6
→ Never reach into the gaps between the matrix tray changer and the machine base while the
machine is running.
→ The power supply cable must not be plugged into or unplugged from the external power supply
unless the matrix tray changer is docked into the machine.
→ The matrix tray changer must NOT be operated unless it is docked into the machine.
6.3.2 Description
The matrix tray changer can be used to store and change up to 100 waffle-pack trays fully auto-
matically. The levels (storage locations in the tray supplies) for the waffle-pack trays are numbered
consecutively in ascending order from bottom to top.
The tray supplies move independently of one another in the vertical direction until the selected
magazine is within range of the feed axis. The horizontal feed axis transports the waffle-pack tray
from the tray supply into the access area of the placement head.
Tray supply 1 has 30 levels, each of which can hold 2 JEDEC trays or one large tray up to 240 x
340 mm² from the waffle-pack tray carriers.
Tray supply 2 has a capacity of 40 levels for JEDEC trays.
The matrix tray changer has an integral chassis, and is therefore easy to move to other locations.
It is supplied with the PCB conveyor height implemented for the machines, but can be adapted for
the 830, 900, 930 and 950 mm PCB conveyor heights with just a few simple operations.
