– The standard nozzle changer for the TwinHead cannot be used with a combination of Twin-
Head and MTC in placement areas with two gantries. For this situation, there is a nozzle
changer in the placement area with two gantries (see Section 6.1.4.7
, page 402).
For the X2 machines:
– It is not possible to install an MTC and productivity lift at the same time at location 4.
– No nozzle changer can be installed at location 4 in conjunction with the MTC.
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Matrix tray changer
419
6.3.4.1 Dimensions
6

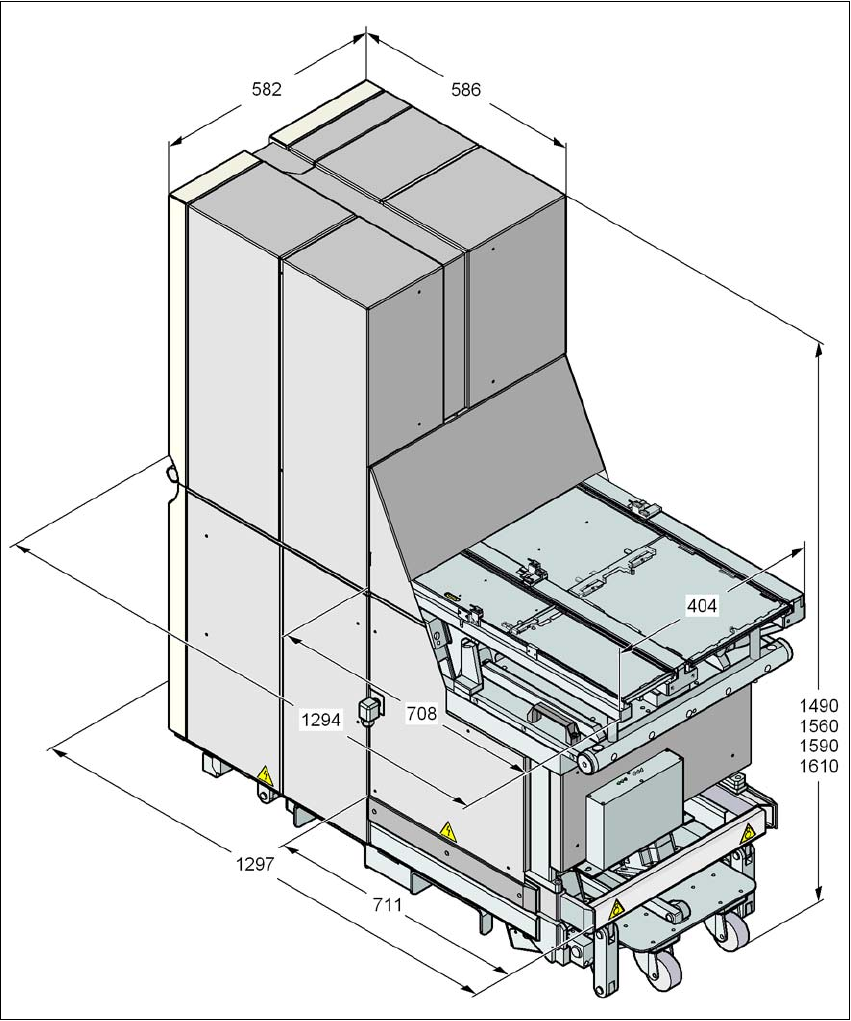

Fig. 6.3 - 1 Matrix tray changer, dimensions, all dimensions in millimeters
6 Station extensions User Manual SIPLACE X-Series
6.3 Matrix tray changer From software version SR.605.xx 07/2008 EN Edition
420
6.3.4.2 Controls
6

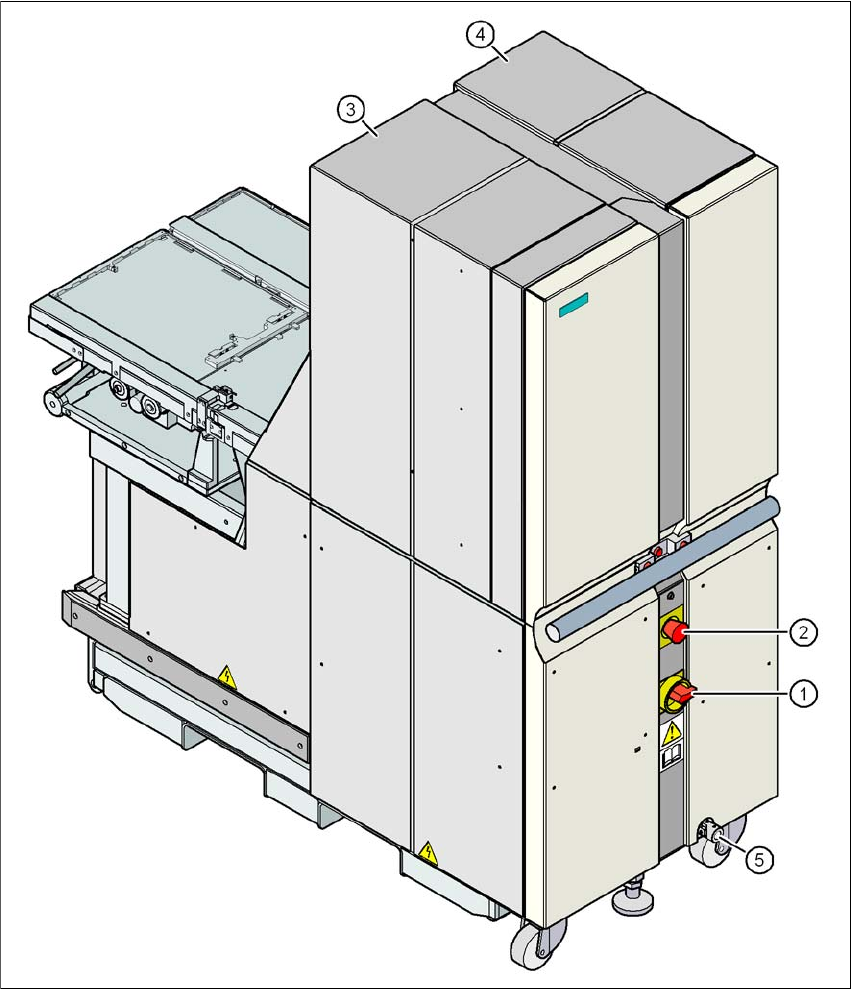

Fig. 6.3 - 2 Matrix tray changer, back view
(1) Main power switch
(2) EMERGENCY STOP button
(3) Tray supply 1 for holding up to 30 waffle-pack tray carriers (up to 60 JEDEC trays)
(4) Tray supply 2 for holding up to 40 waffle-pack tray carriers (up to 40 JEDEC trays)
(5) Point for attaching the crank for adjusting the height of matrix tray changer
