User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Matrix tray changer
419
6.3.4.1 Dimensions
6
Fig. 6.3 - 1 Matrix tray changer, dimensions, all dimensions in millimeters
6 Station extensions User Manual SIPLACE X-Series
6.3 Matrix tray changer From software version SR.605.xx 07/2008 EN Edition
420
6.3.4.2 Controls
6
Fig. 6.3 - 2 Matrix tray changer, back view
(1) Main power switch
(2) EMERGENCY STOP button
(3) Tray supply 1 for holding up to 30 waffle-pack tray carriers (up to 60 JEDEC trays)
(4) Tray supply 2 for holding up to 40 waffle-pack tray carriers (up to 40 JEDEC trays)
(5) Point for attaching the crank for adjusting the height of matrix tray changer
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Matrix tray changer
421
6.3.5 X4 placement machine dimensions with MTC
6
6
6
6

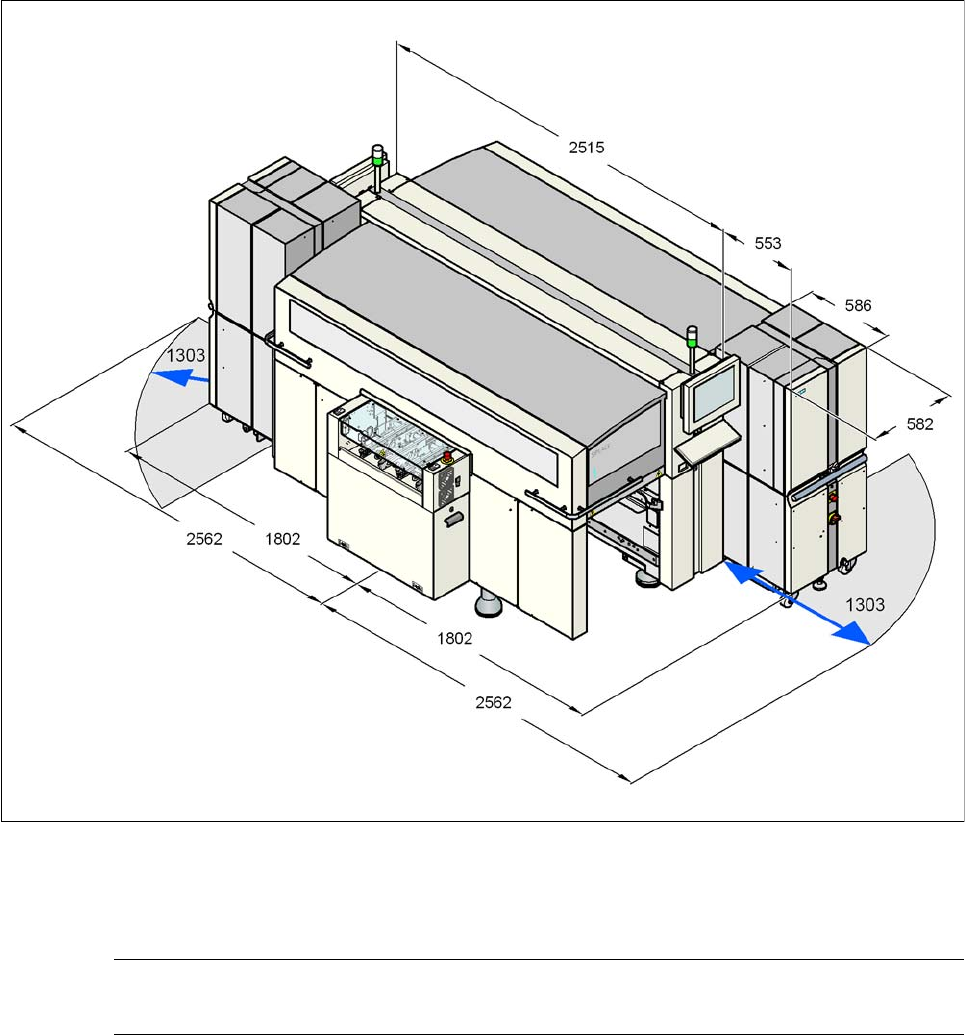

Fig. 6.3 - 3 Dimensions of the X4 placement system with matrix tray changer in millimeters
6
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
