User Manual SIPLACE X-Series 6 Station extensions From software version SR.605.xx 07/2008 EN Edition 6.3 Matrix tray changer 423 6.3.7 X2 placement machine dimensions with MTC 6 6 6 6 Fig. 6.3 - 5 Dimensions of the X2 pl…
6 Station extensions User Manual SIPLACE X-Series
6.3 Matrix tray changer From software version SR.605.xx 07/2008 EN Edition
422
6.3.6 X3 placement machine dimensions with MTC
6
6
6
6

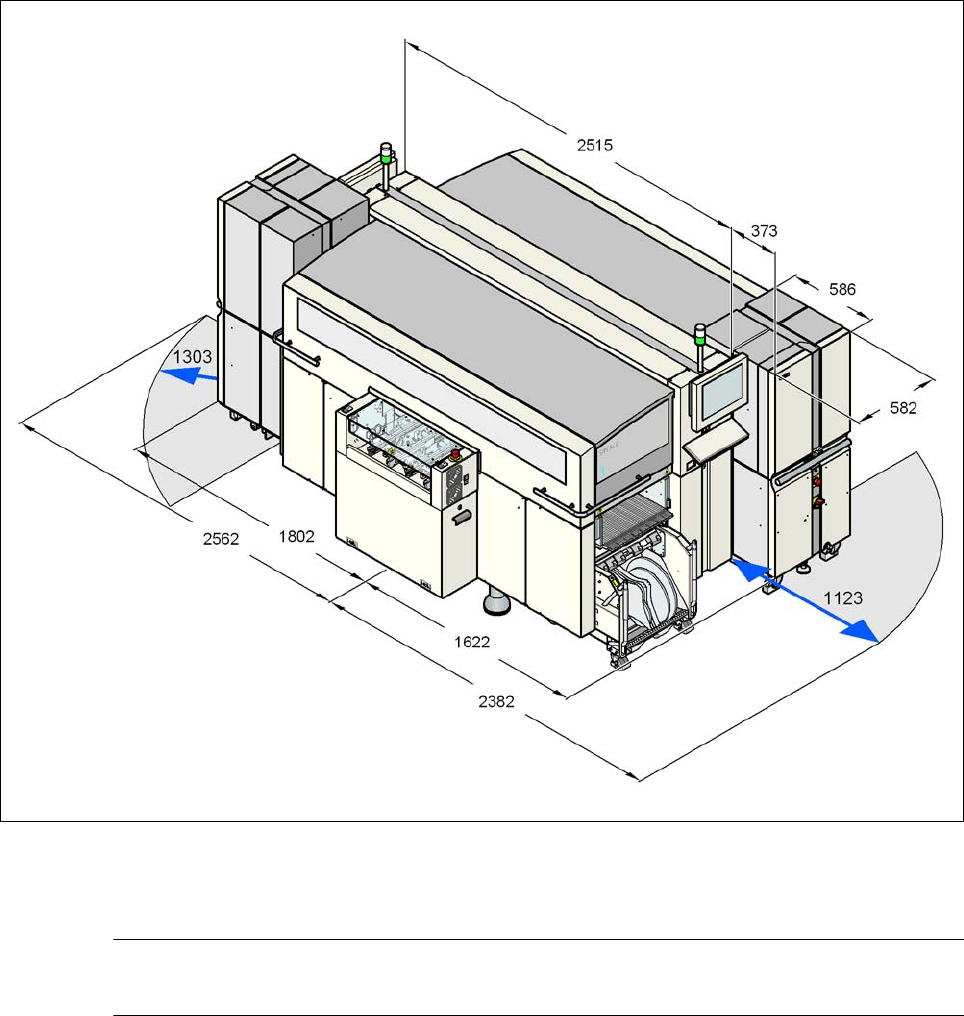

Fig. 6.3 - 4 Dimensions of the X3 placement system with matrix tray changer in millimeters
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.3 Matrix tray changer
423
6.3.7 X2 placement machine dimensions with MTC
6
6
6
6
Fig. 6.3 - 5 Dimensions of the X2 placement system with matrix tray changer in millimeters
6
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
6 Station extensions User Manual SIPLACE X-Series
6.4 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition
424
6.4 Waffle-pack changer
Item no. 00119826-xx WPC4 on the SIPLACE X-series
6.4.1 Safety instructions
WARNING 6
→ Never reach into the gaps between the waffle-pack changer and the machine base while the
machine is running.
→ The waffle-pack changer control cable must only then be connected to the connecting socket
or taken from this if the waffle-pack changer is docked into the machine.
→ The power supply cable must not be plugged into or unplugged from the external power supply
unless the waffle-pack changer is docked into the machine.
→ The waffle-pack changer must NOT be operated unless it is docked into the machine.
6.4.2 Description
The waffle-pack changer makes components available in the waffle-pack trays to avoid unneces-
sary loss of time during storage and automatic changing of the waffle-pack trays. Programmable,
random access to up to 28 waffle-pack trays also increases the range of components that can be
made available.
The waffle-pack changer has an integral chassis, and is easy to move to other locations. It is
supplied with the PCB conveyor height implemented for the machines, but can also be adapted
for the 830, 900, 930 and 950 mm PCB conveyor heights with just a few simple operations.
There are 4.5 locations for 30 mm width S feeder modules available on the component table.
Both the TwinHead and the 6 and 12 segment Collect&Place head can pick up components from
the waffle-pack tray.
