6 Station extensions User Manual SIPLACE X-Series 6.4 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition 430 6.4.8 Controls 6 Fig. 6.4 - 4 WPC - controls (1) Main power switch (2) EMERGENCY STOP butto…
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.4 Waffle-pack changer
429
6.4.7 X2 placement machine dimensions with WPC
6
6
6

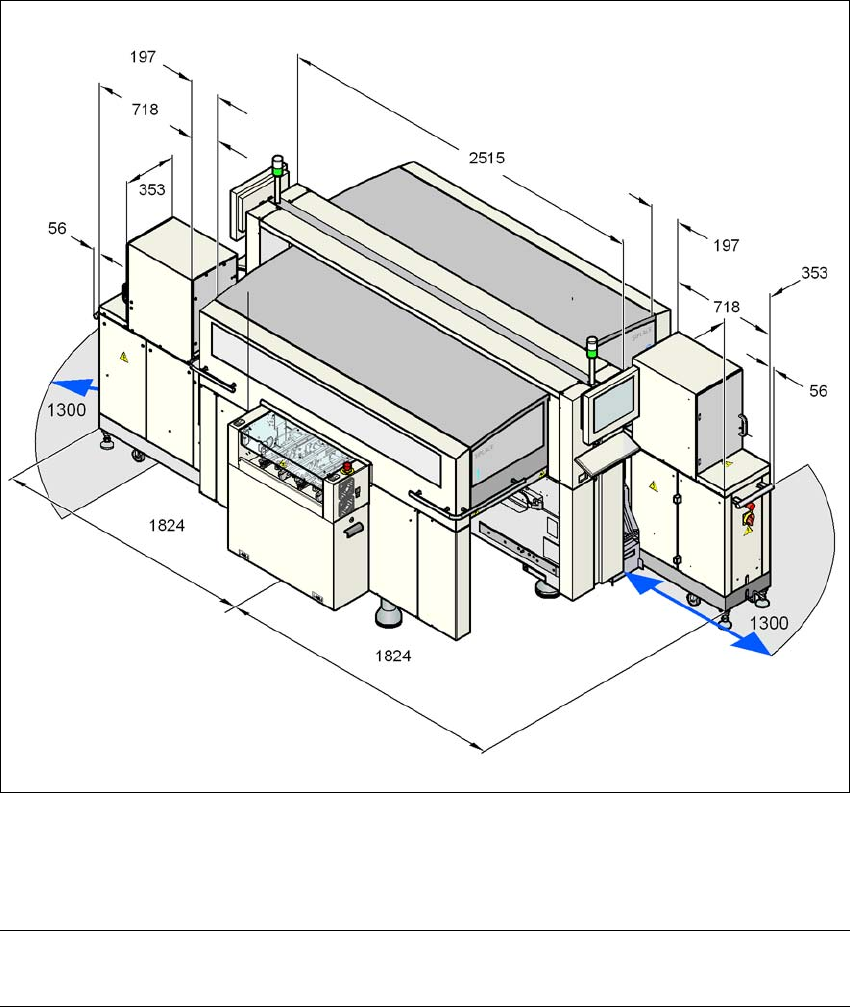

Fig. 6.4 - 3 Dimensions of the X2 placement system with waffle-pack changer in millimeters
6
PLEASE NOTE 6
A waffle-pack changer may be docked in at locations 2 and 4 in place of a component trolley.
6 Station extensions User Manual SIPLACE X-Series
6.4 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition
430
6.4.8 Controls
6

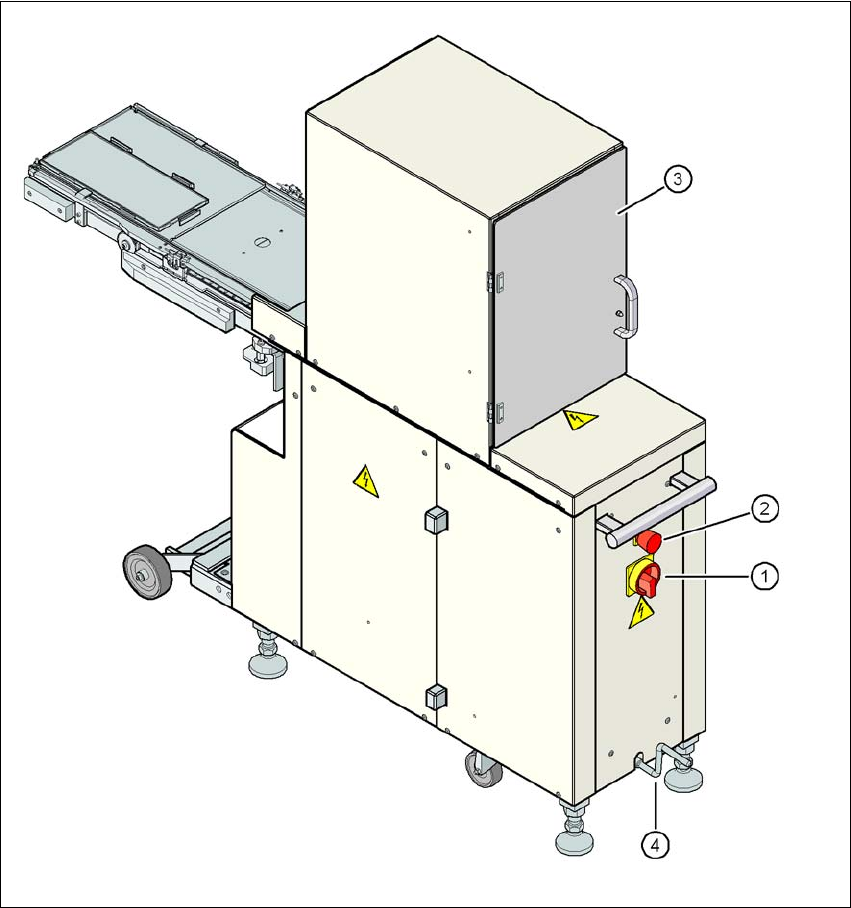

Fig. 6.4 - 4 WPC - controls
(1) Main power switch
(2) EMERGENCY STOP button
(3) Safety door
(4) Crank for raising or lowering the chassis
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.5 Sensor for the component reject bin
431
6.5 Sensor for the component reject bin
Item no. 00116848-xx Sensor, component reject bin, X-series/D3
The sensor for the component reject bin monitors whether the reject bin is seated correctly in its
mount.
– If the reject bin was not inserted correctly, the placement machine cannot be started.
– If the reject bin jumps out of its mount during the placement process, the machine is stopped
immediately to avoid a head crash.
Each reject bin can be monitored by a separate sensor.
PLEASE NOTE 6
If a 20-segment Collect&Place head is used, then we recommend that you install the optional
sensor for the component reject bin.
6.6 SIPLACE High-Force Head
Item no. 00119734-xx High-Force Head for the X-series
This item number only applies when a new placement machines is ordered with a High-Force
Head rather than a standard TwinHead. 6
Item no. 00119753-xx High-Force Head upgrade kit
Use this item number if you want to replace a standard TwinHead with a High-Force Head.6
6.6.1 Description
The SIPLACE High-Force Head is a development offshoot of the standard TwinHead. It can pro-
cess the same component range and also offers the possibility of achieving set-down forces up to
30 N.
6.6.2 Technical data
6
Otherwise the technical data for the TwinHead and High-Force Head is the same (see Section
3.5.4.2
, page 134).
All the nozzles and grippers that are used with the standard TwinHead can be used for the
SIPLACE High-Force Head.
Programmable set-down force 2.0 N to 10 N ± 10 %
greater than 10 N up to 30 N ± 15 %
