6 Station extensions User Manual SIPLACE X-Series

6.4 Waffle-pack changer From software version SR.605.xx 07/2008 EN Edition

430

6.4.8 Controls

Fig. 6.4 - 4 WPC - controls

(1) Main power switch

(2) EMERGENCY STOP button

(3) Safety door

(4) Crank for raising or lowering the chassis

User Manual SIPLACE X-Series 6 Station extensions

From software version SR.605.xx 07/2008 EN Edition 6.5 Sensor for the component reject bin

431

6.5 Sensor for the component reject bin

Item no. 00116848-xx Sensor, component reject bin, X-series/D3

The sensor for the component reject bin monitors whether the reject bin is seated correctly in its

mount.

– If the reject bin was not inserted correctly, the placement machine cannot be started.

– If the reject bin jumps out of its mount during the placement process, the machine is stopped

immediately to avoid a head crash.

Each reject bin can be monitored by a separate sensor.

PLEASE NOTE 6

If a 20-segment Collect&Place head is used, then we recommend that you install the optional

sensor for the component reject bin.

6.6 SIPLACE High-Force Head

Item no. 00119734-xx High-Force Head for the X-series

This item number only applies when a new placement machines is ordered with a High-Force

Head rather than a standard TwinHead. 6

Item no. 00119753-xx High-Force Head upgrade kit

Use this item number if you want to replace a standard TwinHead with a High-Force Head.6

6.6.1 Description

The SIPLACE High-Force Head is a development offshoot of the standard TwinHead. It can pro-

cess the same component range and also offers the possibility of achieving set-down forces up to

30 N.

6.6.2 Technical data

Otherwise the technical data for the TwinHead and High-Force Head is the same (see Section

3.5.4.2

, page 134).

All the nozzles and grippers that are used with the standard TwinHead can be used for the

SIPLACE High-Force Head.

Programmable set-down force 2.0 N to 10 N ± 10 %

greater than 10 N up to 30 N ± 15 %

6 Station extensions User Manual SIPLACE X-Series

6.7 Component camera for the TwinHead, FC camera From software version SR.605.xx 07/2008 EN Edition

432

6.7 Component camera for the TwinHead, FC camera

6.7.1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)

Item no. 00119718-xx Component camera, stationary, 16x16, digital, type 25

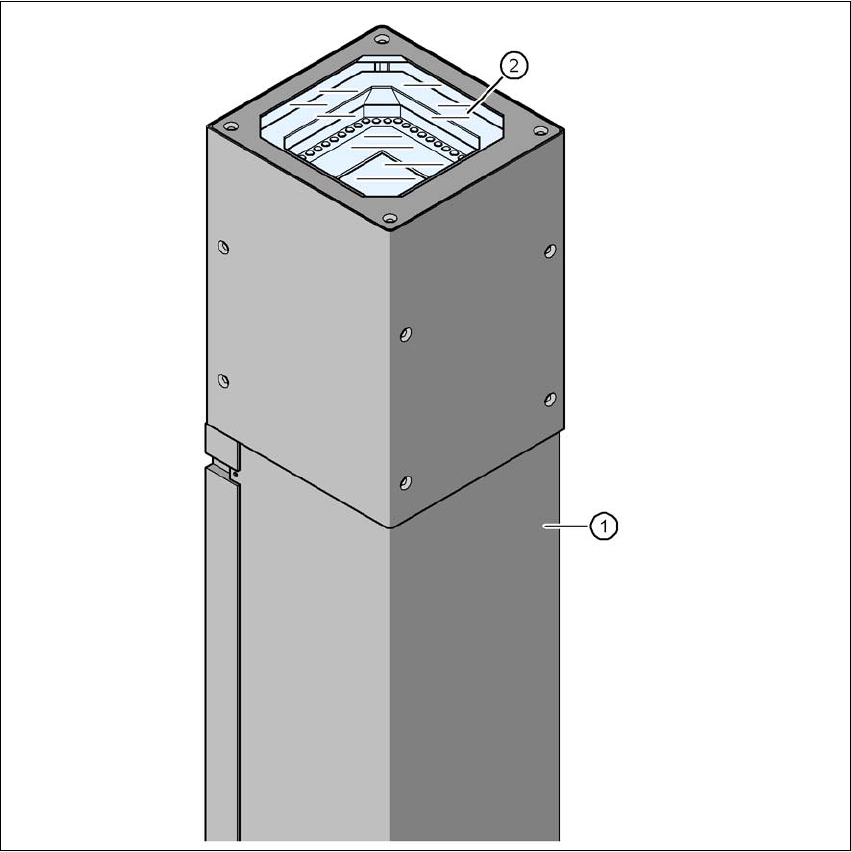

Fig. 6.7 - 1 Stationary P&P component camera (type 25) 16 x 16, digital (FC camera)

(1) Camera housing with integral camera and camera amplifier

(2) Glass plate - over the illumination and lens levels
