6 Station extensions User Manual SIPLACE X-Series
6.8 PCB barcode scanner From software version SR.605.xx 07/2008 EN Edition
438
6.8.5 Warning label W216 on the cover of the PCB input side
6
Warning label W216 "Laser class 2" on the cover of the PCB input side,
item no. 03010316-01 (number per placement machine: 1)
PLEASE NOTE 6
When you install a PCB barcode scanner on the placement machine, you must attach laser
warning label W206 contained in the retrofit kit to the cover on the PCB input side.
6.8.6 Positioning PCB barcode labels on the PCB
PLEASE NOTE 6
Restrictions for PCBs longer than 430 mm
6.8.6.1 Positioning along the long side of the PCB -
Scanning beam across the direction of travel
Fig. 6.8 - 4 Positioning along the long side of the PCB - Scanning beam across the direction of travel
6
6
6
6
6
6
LASER RADIATION!
Do not look into beam
Laser class 2
PCB barcode scanner Q [mm]
2D topside 390
1D topside 390
2D underside
a
a) If there is a dual PCB conveyor installed on the
placement machine, we can provide a special de-
sign for retrofitting the 2D PCB barcode scanner
"bottom".
430
1D underside 430
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.8 PCB barcode scanner
439
6.8.6.2 Positioning along the long side of the PCB -
Scanning beam along the direction of travel

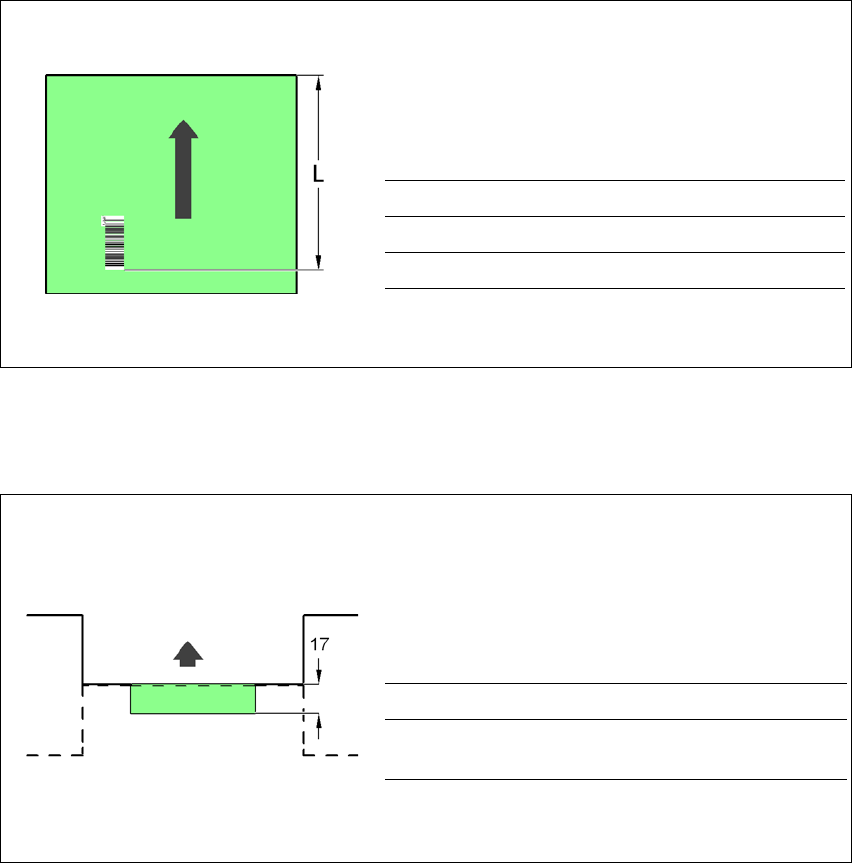

Fig. 6.8 - 5 Positioning along the long side of the PCB - Scanning beam along the direction of travel
6.8.6.3 PCB overshoot over the machine with the dual conveyor
Fig. 6.8 - 6 PCB overshoot over the machine with the dual conveyor
PCB barcode scanner L [mm]
1D topside 320 - 350
1D underside 380 - 410
PCB barcode scanner Overshoot [mm]
2D underside on the
dual conveyor
17
Input side of the downstream machine
Output side of the upstream machine
6 Station extensions User Manual SIPLACE X-Series
6.8 PCB barcode scanner From software version SR.605.xx 07/2008 EN Edition
440
6.8.6.4 Positioning along the width of the PCB -
Scanning beam across the direction of travel
Fig. 6.8 - 7 Positioning along the width of the PCB - Scanning beam across the direction of travel
6.8.6.5 Positioning along the width of the PCB -
Scanning beam along the direction of travel,
PCB barcode scanner 1D topside
Fig. 6.8 - 8 Positioning along the width of the PCB - Scanning beam along the direction of travel
PCB barcode scanner 1D topside
PCB barcode scanner LQ [mm] RQ [mm]
2D topside 3 3
1D topside 3 3
2D underside
a
a) If there is a dual PCB conveyor installed on the placement ma-
chine, we can provide a special design for retrofitting
the 2D PCB barcode scanner "bottom.
55
1D underside 5 5
PCB dimensions/convey-
or
LO [mm] RO [mm]
460 mm / SC 3 20
508 mm / SC 3 44
216 mm / DC1 3 24
250 mm / DC1
450 mm / SM1
358
216 mm / DC2 3 3
250 mm / DC2
450 mm / SM2
33
