6 Station extensions User Manual SIPLACE X-Series 6.18 Coplanarity laser module From software version SR.605.xx 07/2008 EN Edition 454 6.18.5 Identify machine with warning label 6 W arning label W216 "Laser class 2&…
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.18 Coplanarity laser module
453
The TwinHead picks up the component to be checked, centers it optically using the component
vision camera (see Section 6.7
, page 432) and moves all four sides one after another over the
fixed laser beam of the coplanarity laser module. In this way, every lead is scanned from below by
the laser beam. The laser light scattered by the underside of the lead is recorded by a sensor, and
is then used to calculate the exact position of the lead with respect to the PCB. The position values
thus calculated are compared against the limit value specified by the user. If they exceed this
value, the component is disposed of or returned.
The coplanarity laser module is used in combination with the optical component centering mode.
Components with bent or missing leads are detected and disposed of, if necessary.
6.18.3 Technical data
6
6.18.4 Restrictions
– The component must have a minimum of two and a maximum of four rows of gull-wing leads.
– The row of leads should be located orthogonally to each other.
– The leads should be trained orthogonally to the row of leads.
– The ends of the leads lie on a straight line.
– Measurement of components with just one row of leads is not possible.
Components Gullwing
Accuracy ± 18.5 µm (3σ) (reference component)
± 24.7 µm (4σ)
± 30.5 µm (3σ) (components up to 32 mm)
± 40.7 µm (4σ)
± 31.3 µm (3σ) (components up to 55 mm)
± 41.7 µm (4σ)
Max. component size 55 x 55 mm²
Min. lead pitch 300 µm
Max. CO height 25 mm
Positioning option Location 3 on SIPLACE X2 and X3, alternative to the 3D coplanarity
laser module
Placement head type TwinHead
6 Station extensions User Manual SIPLACE X-Series
6.18 Coplanarity laser module From software version SR.605.xx 07/2008 EN Edition
454
6.18.5 Identify machine with warning label
6
Warning label W216 "Laser class 2" on the cover beside the main switch,
item no. 03010316-01 (number per placement machine: 1)
PLEASE NOTE 6
When the coplanarity laser module is fitted, the placement machine must be classified as laser
class 2. The laser module is not integrated into the EMERGENCY STOP circuit.
6

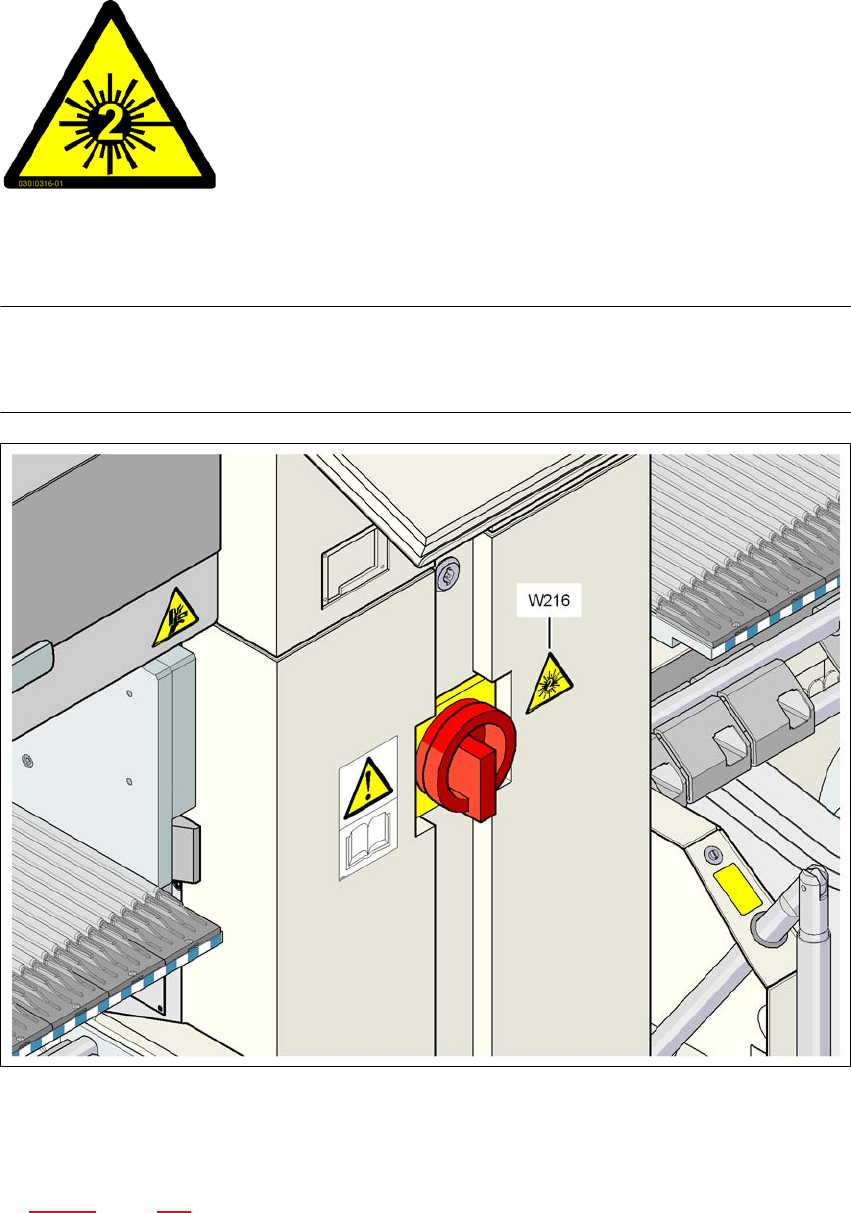

Fig. 6.18 - 3 Warning label W216 beside the main switch
→ Identify the machine with warning sign W216 "Laser class 2", item no. 03010316-xx.
→ Stick warning label W216 beside the main power switch on the cover (see item W216 in Fig.
6.18 - 3
, page 454).
6
6
6
6
6
6
LASER RADIATION!
Do not look into beam
Laser class 2
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.18 Coplanarity laser module
455
6.18.6 LED displays on the controller
6

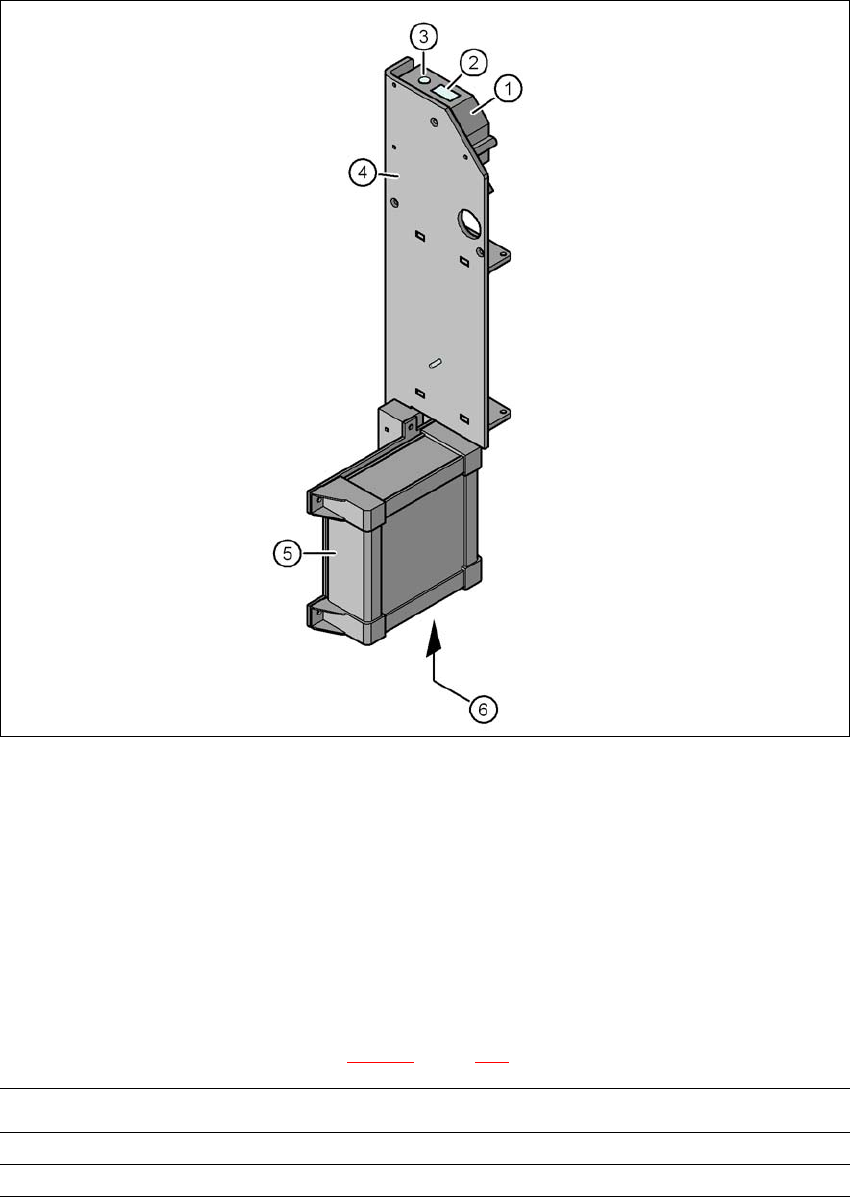

Fig. 6.18 - 4 Coplanarity laser module
(1) Laser sensor
(2) Detector
(3) Laser emitter
(4) Assembly bracket
(5) Controller
(6) LED displays and connections on the controller
The statuses of the coplanarity module are indicated by LEDs. The LEDs can be found at the bot-
tom of the controller (see item 6 in Fig. 6.18 - 4
, page 455).
LED state Status display
Green Test object in measuring range
Yellow Middle of measuring range
