User Manual SIPLACE X-Series 6 Station extensions From software version SR.605.xx 07/2008 EN Edition 6.20 SIPLACE Productivity Lift 463 without interruption. This chainin g increases the component s to be placed per st a…
6 Station extensions User Manual SIPLACE X-Series
6.20 SIPLACE Productivity Lift From software version SR.605.xx 07/2008 EN Edition
462
6
Fig. 6.20 - 2 Horizontal / vertical shuttle (HV shuttle), conveyor track change and lift function
6.20.3 Advantages of the productivity lift
The productivity lift can raise the productivity of a line overall because it increases the placement
rates of the machines on the line.
6
Fig. 6.20 - 3 Productivity lift ж Avoiding stoppages
6
If lines are connected in parallel, individual machines may fail without bringing the entire line to a
standstill. It is also possible access individual machines while the rest of the line continues placing
Horizontal conveyor
HV shuttle
Lift function
Vertical conveyor
Unplaced
Placed
Standard
conveyor level
Underfloor
conveyor level
HV shuttle
Conveyor track change
Conveyor section, processing
Placement machine
Horizontal
and vertical lift
Underfloor con-
veyor
Track change
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.20 SIPLACE Productivity Lift
463
without interruption. This chaining increases the components to be placed per station and mini-
mizes conveyor idle times. This leads to an overall higher placement rate on the line.
This could be for
– process-related investigations or test operation
– programming PCB fiducials, package forms or test placements
– maintenance or repairs
– operating errors, such as not splicing tapes on in good time or missing components.
Another advantage is that the line can be reconfigured as required using the software, without
having to reset the machines.
6 Station extensions User Manual SIPLACE X-Series
6.21 SIPLACE X-series Productivity Lane (XPL) From software version SR.605.xx 07/2008 EN Edition
464
6.21 SIPLACE X-series Productivity Lane (XPL)
Item no. 00119970-xx SIPLACE X-series Productivity Lane
6.21.1 Safety instructions
WARNING
RISK OF CRUSHING HANDS
The PCB conveyor on the SIPLACE X-series Productivity Lane (see item 2 in Fig. 6.22 - 1
, page
466
) continues running, even if the protective covers on the SIPLACE machine are opened.
→ You should therefore never reach into the conveyor track of the SIPLACE Productivity Lane
while it is running.
→ When carrying out any maintenance or servicing work, make sure that you do not damage
any PCBs on this conveyor track.
6.21.2 Description
6

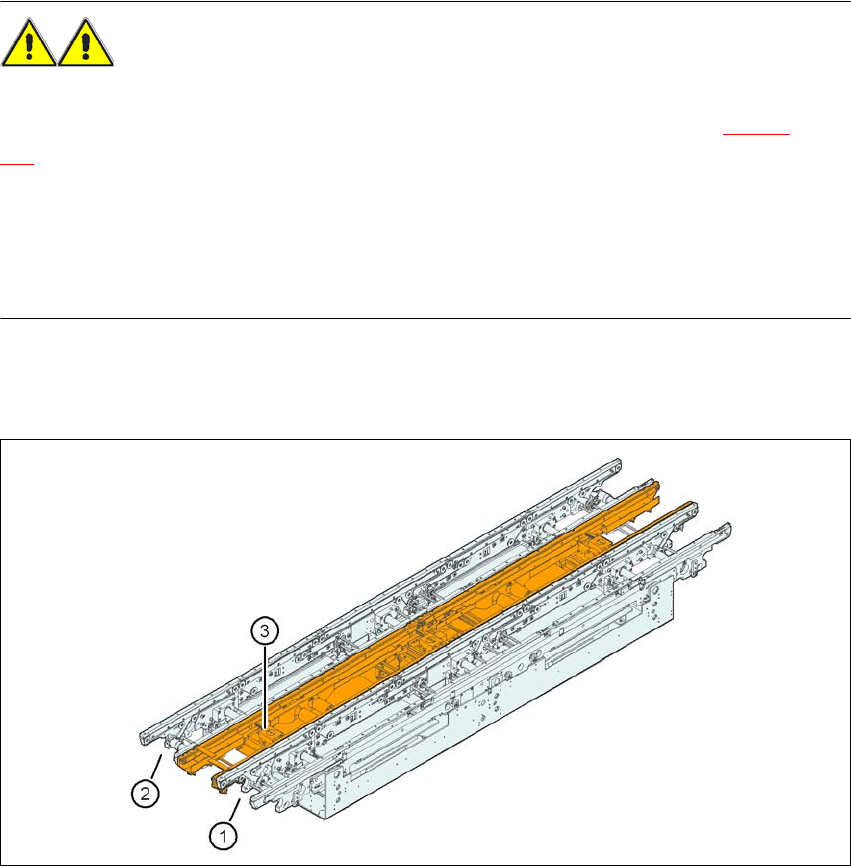

Fig. 6.21 - 1 SIPLACE X-series Productivity Lane (XPL)
(1) Conveyor track 1 of the flexible dual conveyor
(2) Conveyor track 2 of the flexible dual conveyor
(3) SIPLACE X-series Productivity Lane (XPL)
