User Manual SIPLACE X-Series 6 Station extensions From software version SR.605.xx 07/2008 EN Edition 6 .22 SIPLACE X-series Pr oductivity Shuttle (XPS) 467 operation there is a risk th at operators can catch their finger…
6 Station extensions User Manual SIPLACE X-Series
6.22 SIPLACE X-series Productivity Shuttle (XPS) From software version SR.605.xx 07/2008 EN Edition
466
6.22 SIPLACE X-series Productivity Shuttle (XPS)
Item no. 00119972-xx SIPLACE X-series Productivity Shuttle
6.22.1 Safety instructions
6

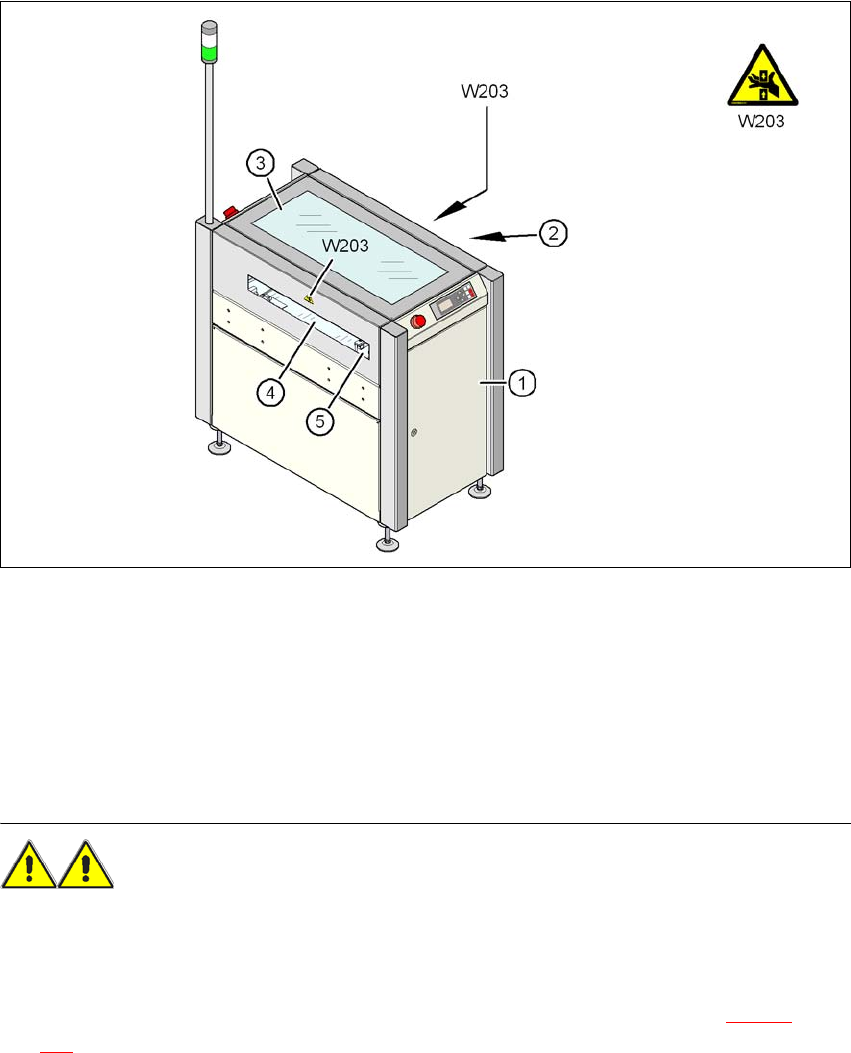

Fig. 6.22 - 1 Risk of crushing on the input and output side of the SIPLACE X-series Productivity Shuttle
(1) X-series Productivity Shuttle
(2) Output side
(3) Cover
(4) Input side
(5) Part of the conveyor belt
WARNING
RISK OF CRUSHING HANDS
– The safety measures to be taken on the input / output side and at the cover flap of the XPS
are the responsibility of the customer.
– The openings for the conveyor on the input and output sides (item 2 or 4 in Fig. 6.22 - 1
, page
466
) are large enough to allow the entire conveyor belt width of the shuttle to be used. During
User Manual SIPLACE X-Series 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.22 SIPLACE X-series Productivity Shuttle (XPS)
467
operation there is a risk that operators can catch their fingers if they reach into the openings
on the input or output side.
– Asys can therefore supply an optional cover that is designed for the conveyor belt.
– If the shuttle is linked to a SIPLACE machine or installed between two SIPLACE machines,
there is again a risk of crushing for the operator while the conveyor belts are in use. If the
cover flap is open on the input or output side of the SIPLACE machines, the operator can
reach through to the shuttle.
→ Fix the Eslon bracket supplied (see item 3 in Fig. 6.22 - 1
, page 466) to the cover of the shut-
tle.
6.22.2 Description
The SIPLACE X-series Productivity Shuttle
a
moves PCBs from one to three incoming conveyor
tracks to up to three outgoing conveyor tracks. The virtual PCB panel coming in on a conveyor
track is transferred to an outgoing conveyor section. The separation function for PCBs on the shut-
tle can be set as required, and supplies the SIPLACE placement machine with the combined
PCBs.
a) See the "SIPLACE X-series Productivity Shuttle" user manual
6 Station extensions User Manual SIPLACE X-Series
6.23 Vision Teach Station From software version SR.605.xx 07/2008 EN Edition
468
6.23 Vision Teach Station
Item no. 00119788-xx Vision teach station
6

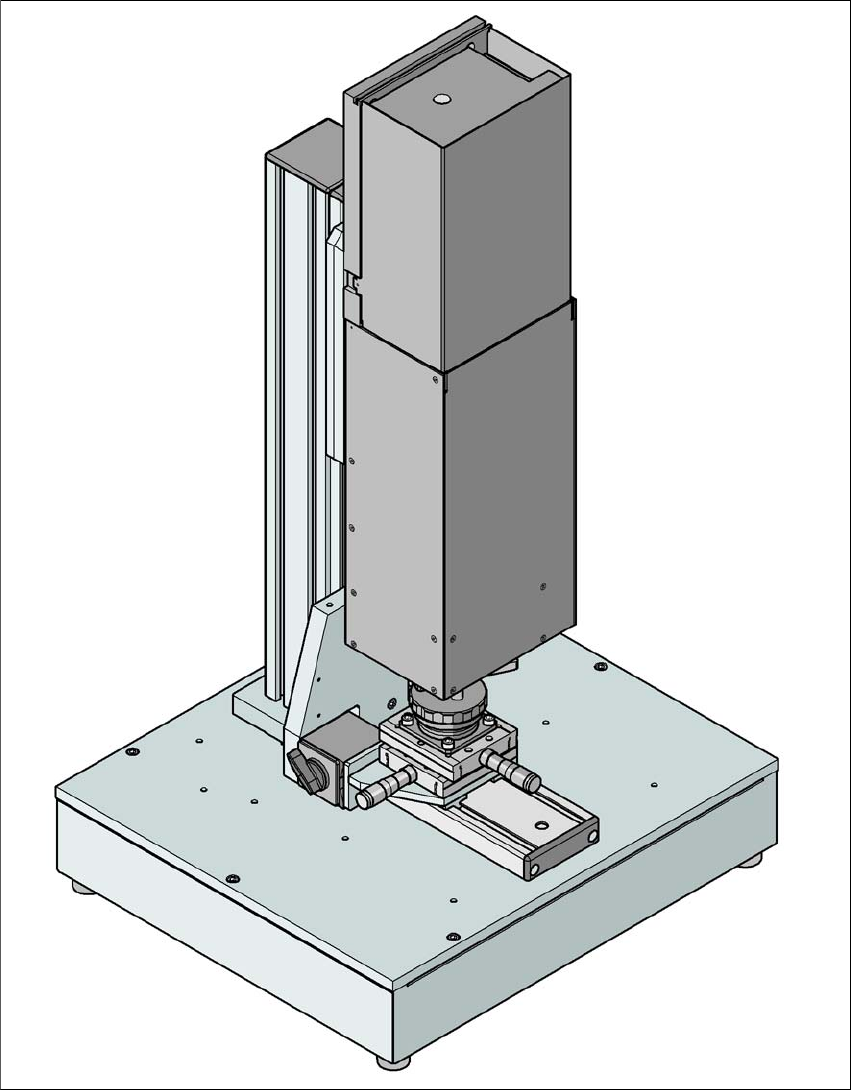

Fig. 6.23 - 1 Vision teach station with component camera, type 33
