2 Operational safety User Manual SIPLACE X-Series 2.2 Warning labels From software version SR.605.xx 07/200 8 EN Edition 52 2.2.3.5 W arning strip s on the used tape chann el of the component trolley docking unit (HF-ser…
User Manual SIPLACE X-Series 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
51
2.2.3.3 Warning label W205 on the used tape chute (HF-series)
2

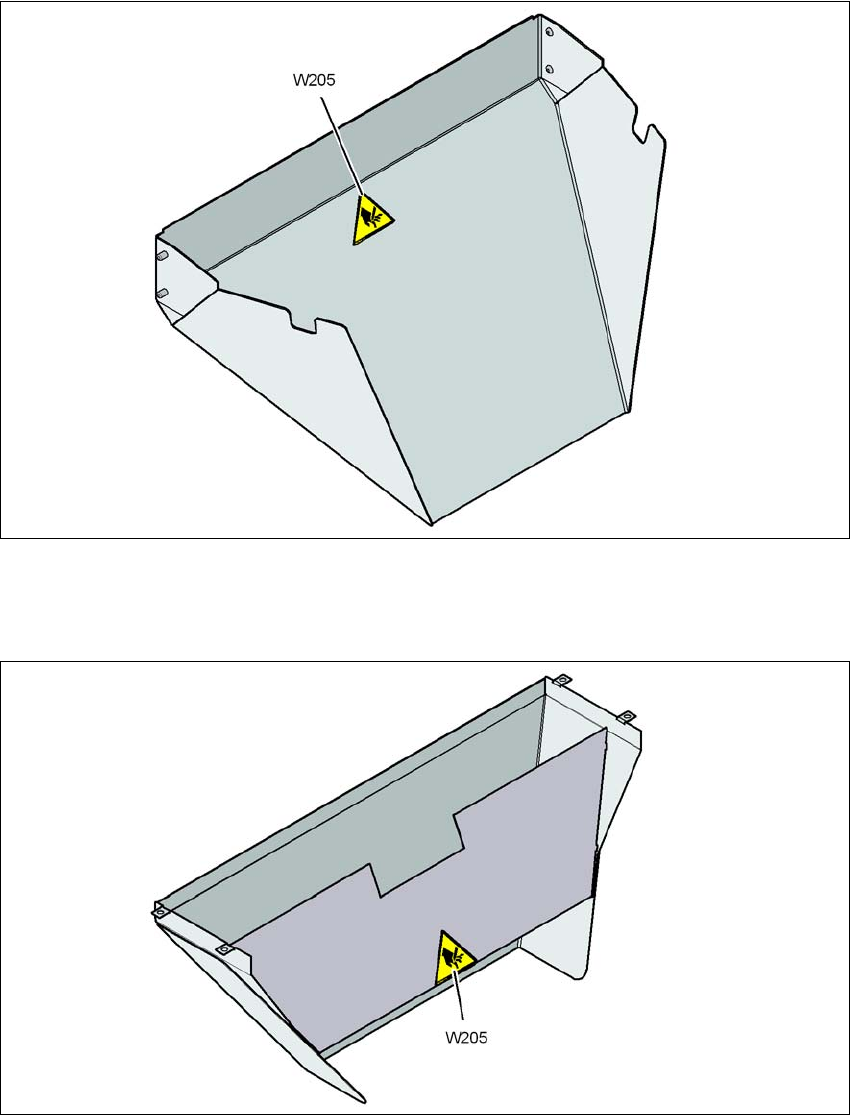

Fig. 2.2 - 6 Warning label W205 on the used tape chute (component trolley docking unit, HF-series)
2.2.3.4 Warning label W205 on the used tape chute (X-series)
2
Fig. 2.2 - 7 Warning label W205 on the used tape chute (component trolley docking unit, X-series)
2 Operational safety User Manual SIPLACE X-Series
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
52
2.2.3.5 Warning strips on the used tape channel of the component trolley docking
unit (HF-series)
2

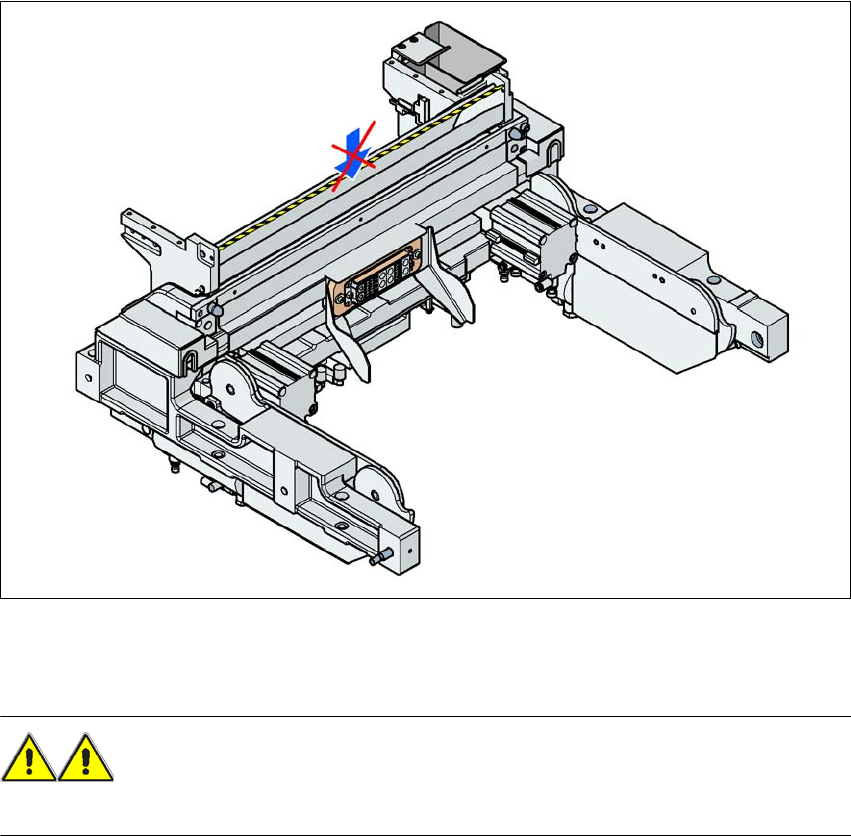

Fig. 2.2 - 8 Warning strips on the used tape channel of the component trolley docking unit (HF-series)
WARNING 2
Never reach into the opening in the used tape channel.
User Manual SIPLACE X-Series 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
53
2.2.4 Warning labels on the power supply unit
2
Pos. W206 in Fig. 2.2 - 9, page 53 item no. 03009345-01 (number per machine: 1) and item W1

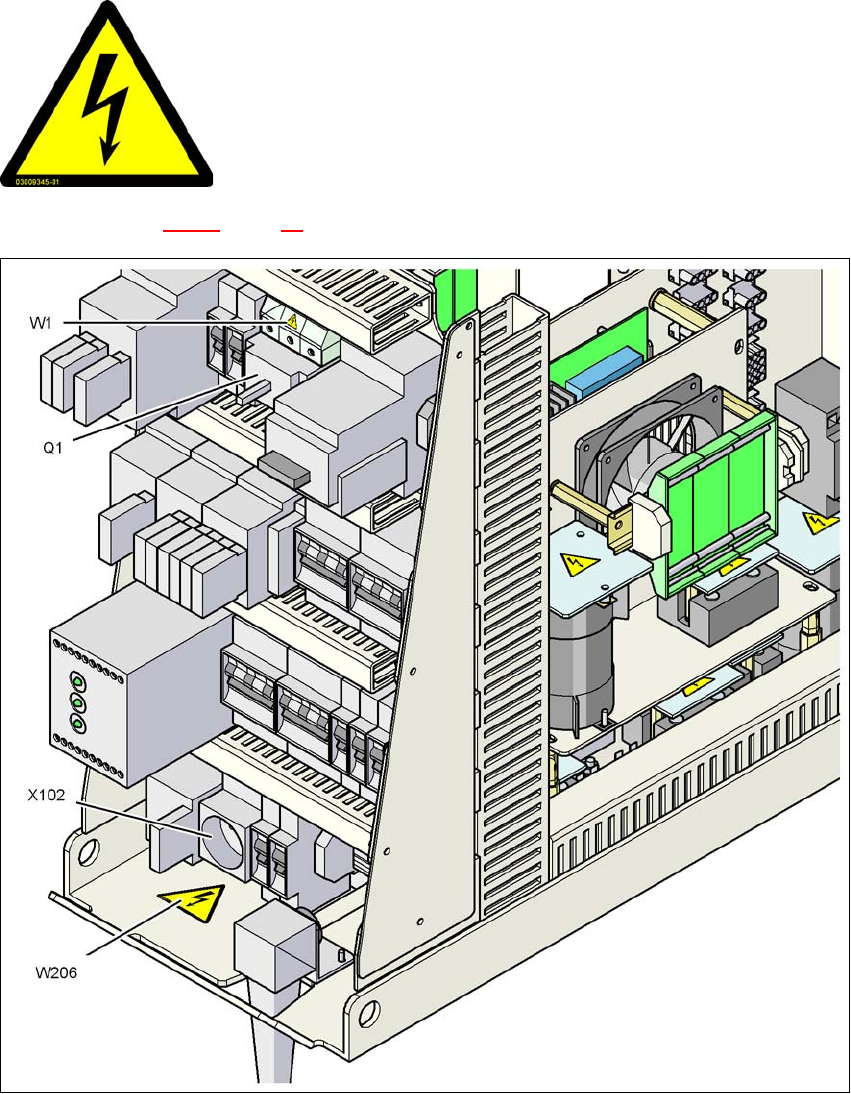

Fig. 2.2 - 9 Warning label W206 on service socket X102 and W1 on main power switch Q1
Pos. W206, item no. 03009345-01
Pos. W1, warning label on main power switch Q1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
