User Manual SIPLACE X-Series 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
59
2.2.6 Warning label on the CEKON plug
2
Pos. W 211 in Fig. 2.2 - 15, page 59 (number per machine: 1)
2

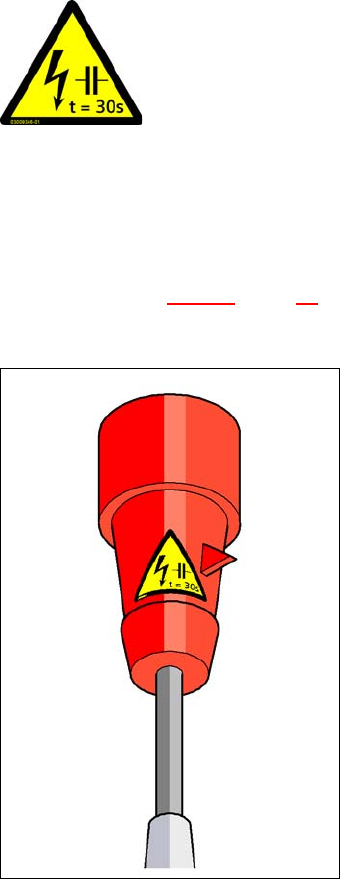

Fig. 2.2 - 15 Warning label W211 on the CEKON plug
Pos. W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious in-
jury. Avoid contact with power plug and/or wire ends for 30 seconds
2 Operational safety User Manual SIPLACE X-Series
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
60
2.2.7 Warning label on the EMERGENCY STOP buttons
2
Pos. W209 in Fig. 2.2 - 16, item no. 03009349-01 (number per placement system: 2)
2
2
Fig. 2.2 - 16 Warning label W209 on the EMERGENCY STOP buttons
Pos. W209, item no. 03009349-01
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warn-
ing label W209 is affixed to the extension kit in-
stead of the yellow ring on the EMERGENCY
STOP buttons.
User Manual SIPLACE X-Series 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
61
2.2.8 "Head crash" information plate on the IC camera of the TwinHead
"Head crash" information plate in Fig. 2.2 - 17, item no. 03015392-02
(number per placement machine: maximum 4)
2
Fig. 2.2 - 17 "Head crash" information plate on the IC camera of the TwinHead
(1) "Head crash" information plate on the IC camera of the TwinHead
WARNING RISK OF HEAD CRASH 2
When the placement head is changed from the TwinHead to the
Collect&Place head, the TwinHead's component cameras (station-
ary, P&P, type 33, 55 x 45, and type 25, 16 x 16) must be removed,
otherwise the Collect&Place head will collide with the camera hous-
ings.
