2 Operational safety User Manual SIPLACE X-Series 2.5 Safety instructions for operating the machine From software version SR.605.xx 07/2008 EN Edition 72 2.5.1 1 High temperatures on the X feeder modules during c ontinuo…
User Manual SIPLACE X-Series 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.5 Safety instructions for operating the machine
71
2.5.10 High temperatures at the C&P20A placement head during continuous oper-
ation
2

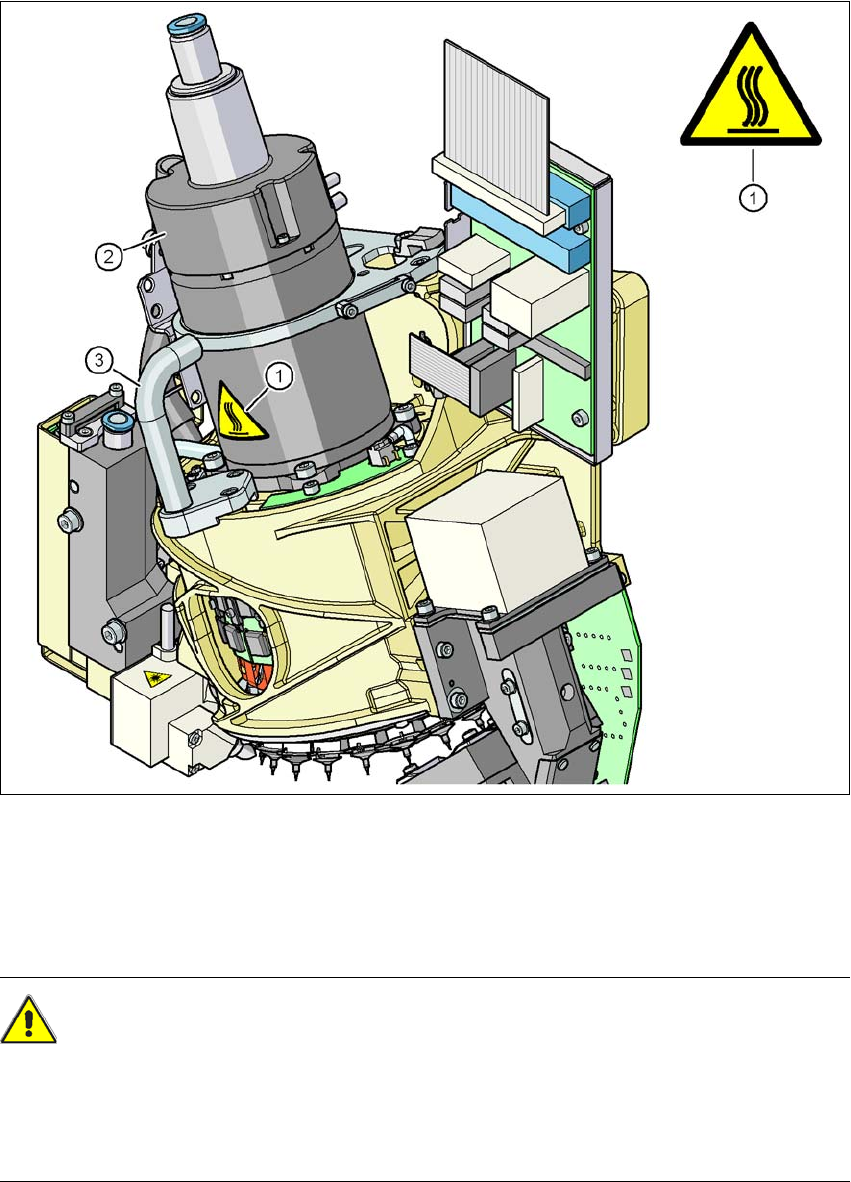

Fig. 2.5 - 6 High temperatures at the C&P20A placement head during continuous operation
(1) Temperature information plate, item no. 03031926-01
(2) Housing for the star motor
(3) Handle
CAUTION
HIGH TEMPERATURES 2
The housing of the star motor and the handle on the placement head may become very hot dur-
ing continuous operation and in ambient temperature in excess of 22 °C. Be careful when touch-
ing the parts.
2 Operational safety User Manual SIPLACE X-Series
2.5 Safety instructions for operating the machine From software version SR.605.xx 07/2008 EN Edition
72
2.5.11 High temperatures on the X feeder modules during continuous operation
2

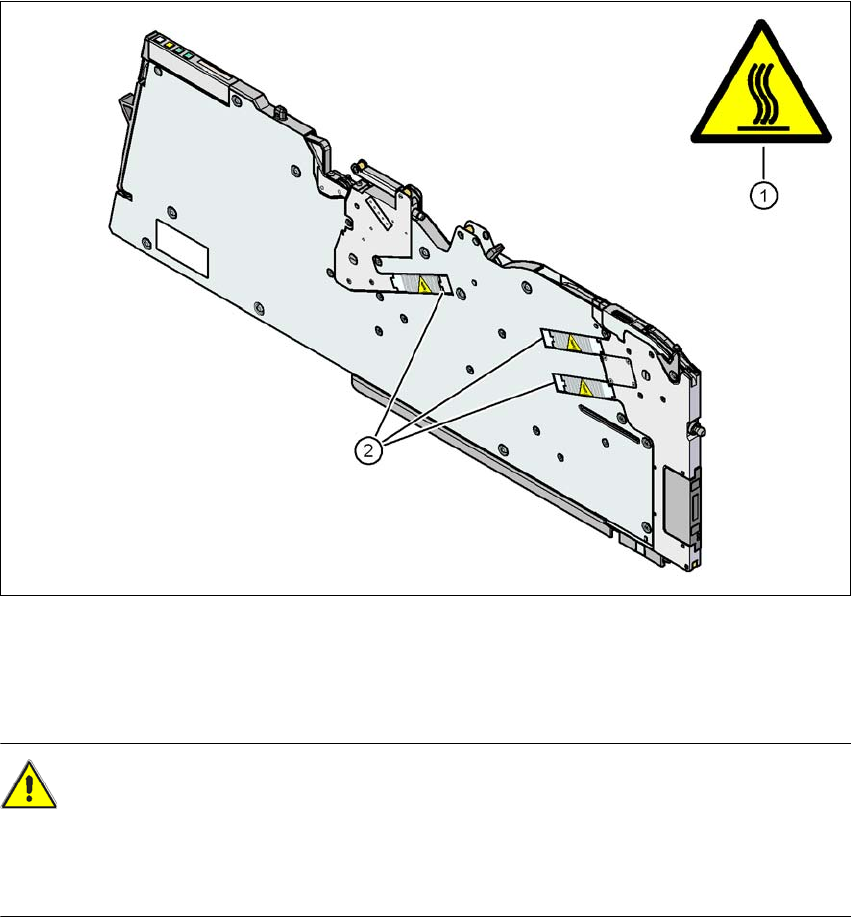

Fig. 2.5 - 7 High temperatures on the X feeder modules during continuous operation
(1) Temperature information plate, item no. 03031926-01
(2) Stepping motor
CAUTION
HIGH TEMPERATURES 2
The stepping motors can become very hot during continuous operation and in an ambient tem-
perature in excess of 22 °C. Be careful when touching the motors.
User Manual SIPLACE X-Series 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.6 Safety equipment
73
2.6 Safety equipment
2.6.1 Protective covers
2
Fig. 2.6 - 1 Protective covers
(1) Protective cover, short
(2) Protective cover, long
(3) Cover flap and hand guard on the input belt
(4) Cover flap and hand guard on the output belt
2
The traveling range of the gantries has two protective covers that can be swung upwards (items
1 and 2). There are side screens to prevent access to the inside of the machine from the side. The
