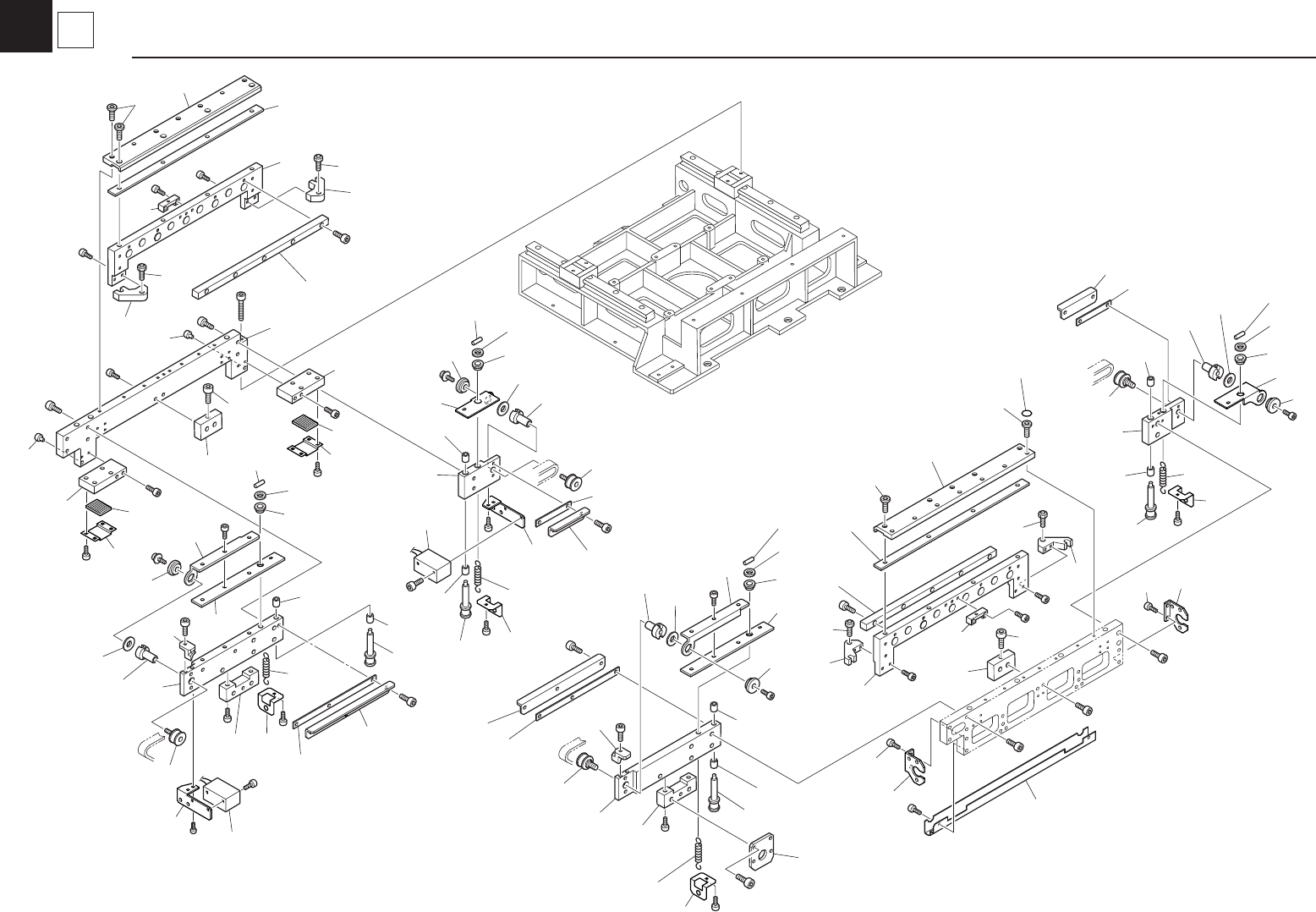

LC2-0302 Main Conveyor-2 7 2 Conveyor N o . Part No. Part Name Q'ty Remarks N o . Part No. Part Name Q'ty Remarks 1 LC2-M9103-00X FRAME, MOVING SIDE 1 3 9 LC2-M912G-01X GUIDE 2 2 LC2-M9105-00X FRAME 1 4 0 LC2-M…
LC2-0302
Main Conveyor-2
7
2
Conveyor
50
45
43
43
46
45
45
35
35
34
47
49
48
1
7
2
3
7
23
41, 42
41, 42
21
26
15
40
21
23
12
27
33
33
33
33
12
15
24
22
22
24
5
36
12
19
16
33
33
13
37
14
4
36
6
20
8
6
20
34
10
9
9
48
47
8
11
11
11
32
19
30
52
18
15
51
43
31
18
51
39
38
15
51
52
18
12
25
33
33
43
51
18
34
49
36
19
19
36
46
17
10
28
44
28
44
34
11
29
13
37
14
13
37
14
13
37
14
LC2-0302
Main Conveyor-2
7
2
Conveyor
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 LC2-M9103-00X FRAME, MOVING SIDE 1 3 9 LC2-M912G-01X GUIDE 2
2 LC2-M9105-00X FRAME 1 4 0 LC2-M912H-01X GUIDE 2
3 LC2-M9106-00X FRAME 1 4 1 LC2-M653H-00X SENSOR, EXIT 1
4 LC2-M9107-00X FRAME 1 4 2 LC2-M653J-00X SENSOR, ENT. 1
5 LC2-M9108-00X FRAME 1 4 3 KV1-M9140-A0X PULLEY, CONV. ASSY 4
6 LC2-M9109-00X GUIDE 2 4 4 LC2-M912L-00X BELT 2
7 LC2-M910A-00X JOINT 2 4 5 LC2-M912M-00X LOW HEAD CAP SCREW 2 2
8 LC2-M910B-00X PLATE 2 4 6 LC2-M912N-00X LOW HEAD CAP SCREW 4
9 LC2-M910C-00X KEY 2 47 LC2-M912S-00X BLOCK 2
10 LC2-M910D-00X HOLDER, BELT 2 4 8 LC2-M912T-00X STOPPER 2
11 LC2-M910G-01X HOLDER, PIN 4 4 9 LC2-M912U-00X STOPPER 2
12 LC2-M910P-00X PIN, PUSHUP 4 5 0 LC2-M912V-00X LABEL 1
13 LC2-M910R-00X RING, SPG. 4 5 1 LC2-M912W-00X SHIM 4
14 LC2-M910S-00X BUSH, SPG. 4 5 2 LC2-M912X-00X GUIDE PCB 2
15 LC2-M910T-00X HOLDER, PULLEY 4 5 3
16 LC2-M910U-00X HOLDER, BRG. 1 5 4
17 LC2-M910V-00X HOLDER, BRG. 1 5 5
18 LC2-M910W-00X WASHER 4 5 6
19 LC2-M910X-00X HOOK 4 5 7
20 LC2-M910Y-00X GUIDE, PCB 2 5 8
21 LC2-M9111-00X STAY, BELT 2 5 9
22 LC2-M9112-00X STAY, BELT 2 6 0
23 LC2-M9113-00X SPACER, STAY 2 6 1
24 LC2-M9114-00X SPACER, STAY 2 6 2
25 LC2-M9116-00X PLATE., BRG. 1 6 3
26 LC2-M9118-01X BRACKET, SENSOR 1 6 4
27 LC2-M9119-01X BRACKET, SENSOR 1 6 5
28 LC2-M911A-00X HOLDER, BELT 2 6 6
29 LC2-M911B-01X GUIDE, PCB 1 6 7
30 LC2-M911C-01X GUIDE, PCB 1 6 8
31 LC2-M911D-01X GUIDE, PCB 1 6 9
32 LC2-M911E-01X GUIDE, PCB 1 7 0
33 LC2-M911S-00X BUSH 8 7 1
34 LC2-M911T-01X SCREW, STOPPER 4 72
35 LC2-M911U-00X STOPPER 2 7 3
36 LC2-M911V-00X SPRING 4 7 4
37 91690-20010 PIN, SPRING 4 7 5
38 LC2-M912F-00X DUCT 1 7 6
LC2-0302

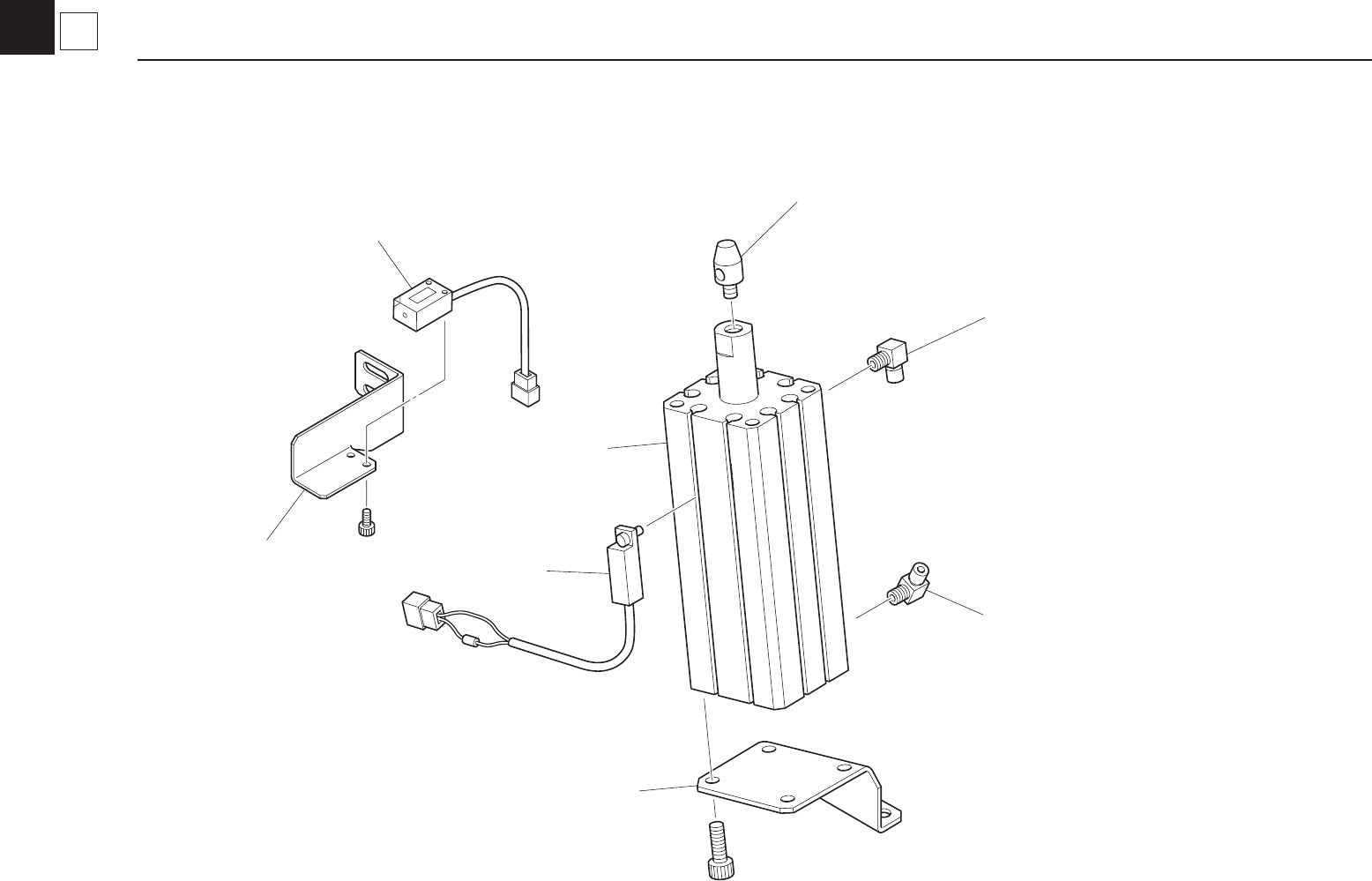

Main Stopper
7
3
Conveyor
1
4
3
4
5
2
7
6
