M3_PartsList - 第6页
LC2-0302 Cover 2 1 Cover N o . Part No. Part Name Q'ty Remarks N o . Part No. Part Name Q'ty Remarks 1 LC2-M1302-01X FRAME, FRONT 1 3 9 LC2-M130C-13X COVER, 7 1 2 LC2-M1303-01X FRAME, REAR 1 4 0 LC2-M1313-12X C…

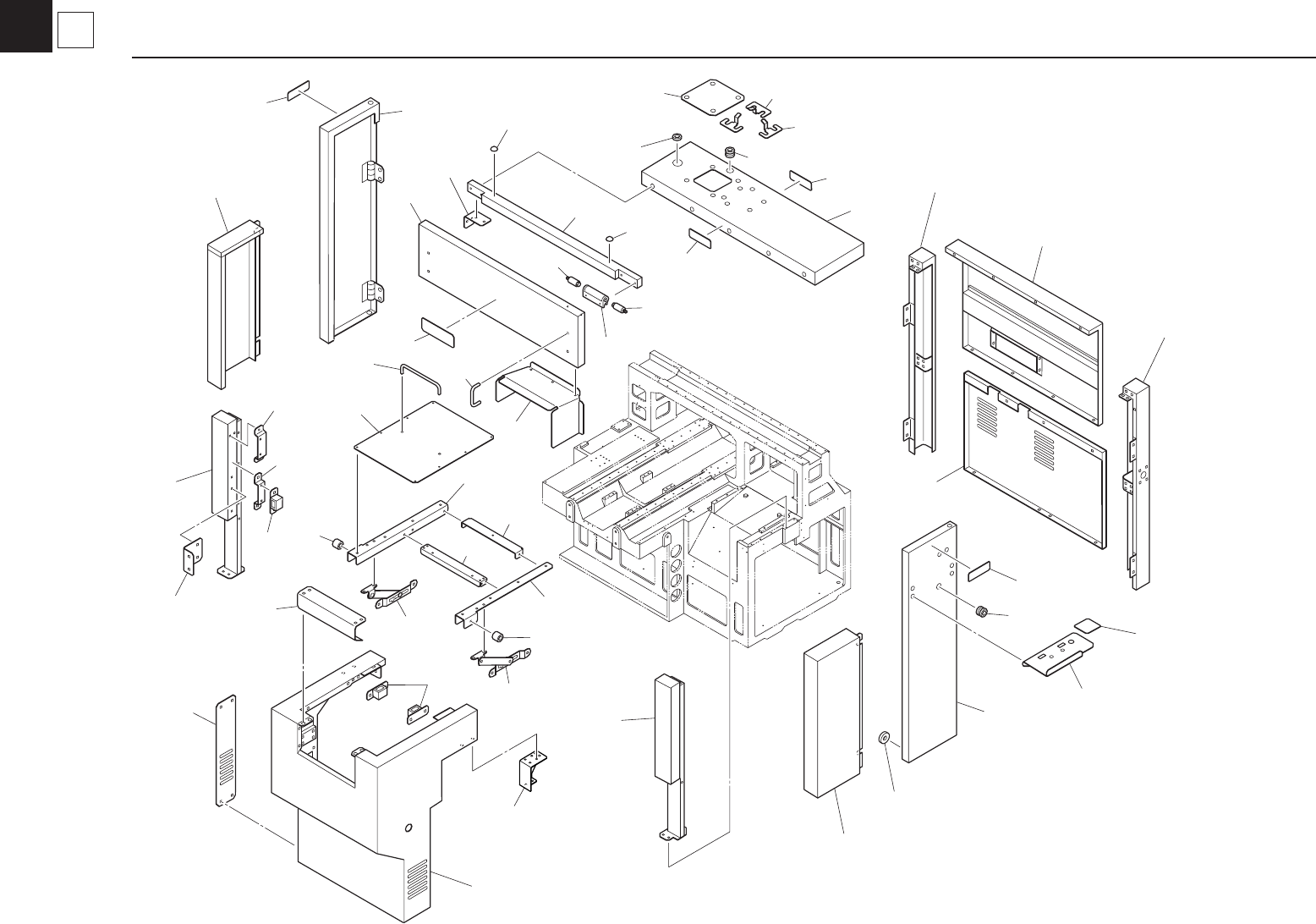

LC2-0302
Cover
2
1
Cover
34
30
32
31
41
37
37
40, (50)
45, (52)
46
48
48
27
47
42
43
44, (51)
37
35
2
3
1
37
29
15
13
17
18
10
39, (49)
5
12
11
6
14
22
27
7
9
19
28
20
23
26
24
25
36
21
8
16
4
33
38
28
LC2-0302
Cover
2
1
Cover
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 LC2-M1302-01X FRAME, FRONT 1 3 9 LC2-M130C-13X COVER, 7 1
2 LC2-M1303-01X FRAME, REAR 1 4 0 LC2-M1313-12X COVER, TOP 1 1
3 LC2-M1304-00X COVER, SIDE U 1 4 1 LC2-M1315-10X GRIP 1
4 LC2-M1305-00X COVER, SIDE L 1 4 2 LC2-M1317-00X SLIDE RAIL L 1
5 LC2-M1307-01X COVER, 2 1 4 3 LC2-M1318-00X SLIDE RAIL R 1
6 LC2-M130A-01X COVER, 5 1 4 4 LC2-M1319-11X STAY, 1 1
7 LC2-M130D-00X COVER, 8 1 4 5 LC2-M131A-11X STAY, 2 1
8 LC2-M130E-02X STAND F 1 4 6 LC2-M131B-00X STAY, 3 1
9 LC2-M130F-01X STAND R 1 4 7 LC2-M131C-00X STAY, 4 1
10 LC2-M130G-01X PANEL, INSIDE F 1 4 8 LC2-M131N-00X SPACER 2
11 LC2-M130H-00X PANEL, INSIDE R 1 4 9 LC2-M130C-03X COVER, 7 1 CL Conv.
12 LC2-M130J-00X COVER, 9 1 5 0 LC2-M1313-02X COVER, TOP 1 1 CL Conv.
13 LC2-M130N-00X WASHER 4 5 1 LC2-M1319-01X STAY, 1 1 CL Conv.
14 LC2-M130Y-00X STAY, SENSOR 1 5 2 LC2-M131A-01X STAY, 2 1 CL Conv.
15 LC2-M1321-00X PLATE, KEYBOARD 1 5 3
16 LG0-M110P-00X PAD, MOUSE 1 5 4
17 LC2-M132J-01X STAY, CRT 1 5 5
18 LC2-M132L-00X STAY, CRT (2) 2 5 6
19 LC2-M1331-01X FRAME, A 1 5 7
20 LC2-M1332-03X COVER, A 1 5 8
21 LC2-M1335-00X STAY, FRAME 2 5 9
22 LC2-M1336-00X BRACKET, MG. 2 6 0
23 LC2-M133G-00X GRIP 2 6 1
24 LC2-M1338-00X HINGE, 1 2 6 2
25 LC2-M1339-00X DAMPER, 1 2 6 3
26 LC2-M133A-00X DAMPER, 2 2 64
27 LC2-M133B-00X MG. CATCH 4 6 5
28 K93-M1392-00X SPACER (TM-180-303) 2 66
29 LC2-M132K-00X GROMMET 1 6 7
30 KV7-M1350-00X CAP, PATLIGHT 1 6 8
3 1 KH1-M13A9-00X BUSH 1 6 9
32 LC2-M1301-12X FRAME, TOP 1 70
33 LC2-M1306-12X COVER, 1 1 71
34 LC2-M1308-12X COVER, 3 1 72
35 LC2-M1309-10X COVER, 4 1 73
36 LC2-M133C-11X COVER, FEEDER (IM) 1 7 4
37 LC2-M13D1-10X SEAL 1 4 7 5
38 LC2-M13D2-10X SEAL 2 1 7 6
LC2-0302
X-axis
3
1
Moving-axis
10
25
13
12
24
18
8
22
21
19
15
16
16
1
17
23
26
4
2
27
28
3
6
5
14
7
27
9
11
28
20
