9. Motor & Driver
Ver. Date CP45
CP45NEO
00 2004/11 O O
9-2
Fig.9-2-2-1 Communicate with Amp
Fig.9-2-2-2 Select Amplifier type
Fig.9-2-2-3 Connect to Amp.
9. Motor & Driver
Ver. Date CP45
CP45NEO
00 2004/11 O O
9-2

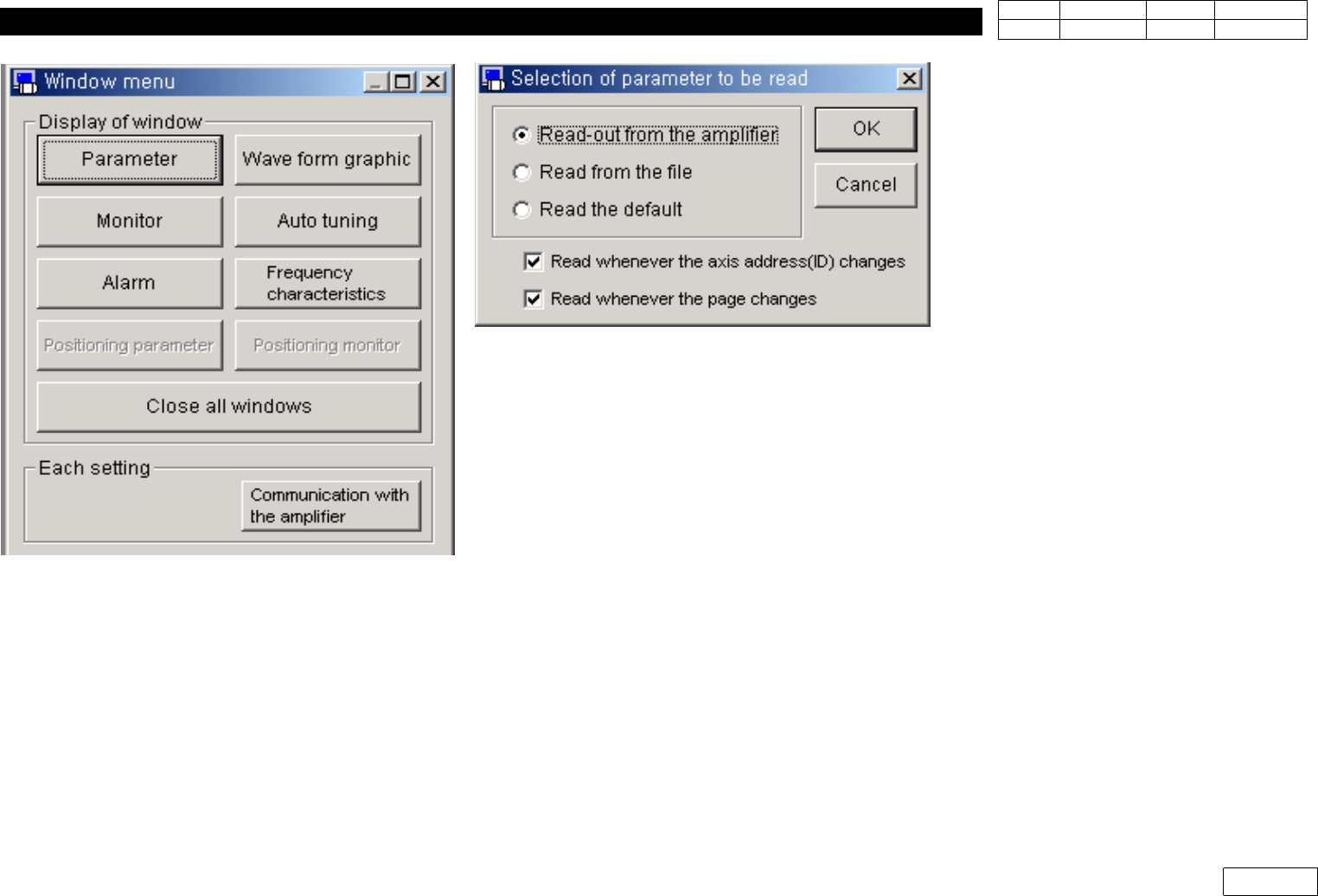

5) Select "Parameter" in Window Mode as Fig 9-2-2-4
(Be Careful not to Use other Button as it is for Expert Use)
6) Select "Read-out from the Amplifier" in "Selection of parameter to be read" Window as
Fig 9-2-2-5

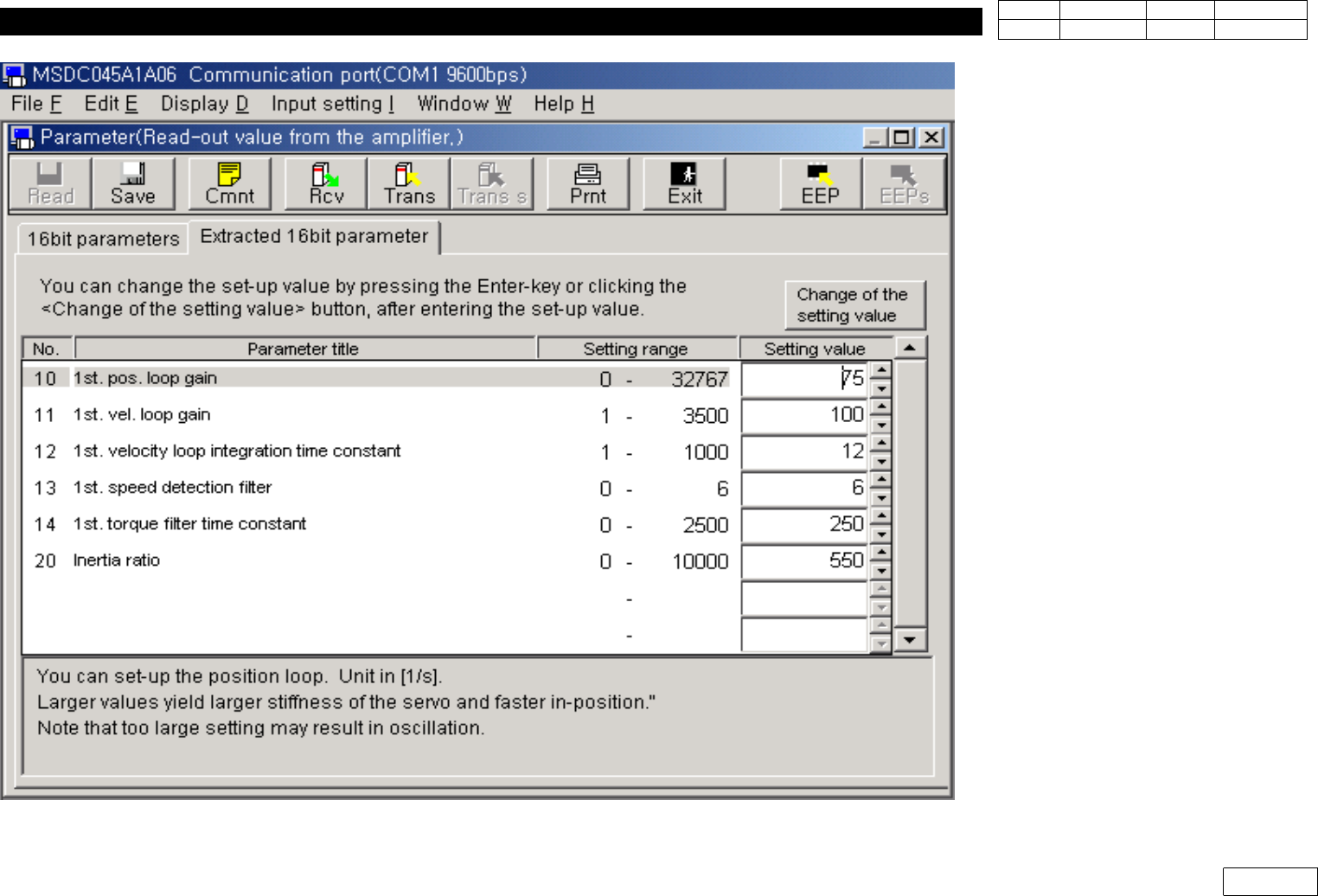

7) Fig 9-2-2-6 Shows the Successful Connection with Existing Amplifier
Fig.9-2-2-4 Select Parameter mode
Fig.9-2-2-5 Select Parameter to be read
9. Motor & Driver
Ver. Date CP45
CP45NEO
00 2004/11 O O
9-2
Fig.9-2-2-6 Communication with Amp.
