3 Technical data User manual SIPLACE HF series
3.4 Dimensions and weight of the placement machines Software Version SR.50x.xx 01/2006 US Edition
102
3.4.4 Machine foot clearances
3
Fig. 3.4 - 4 Machine foot clearances in millimeters
User manual SIPLACE HF series 3 Technical data
Software Version SR.50x.xx 01/2006 US Edition 3.4 Dimensions and weight of the placement machines
103
3.4.5 Distance between right-hand side of PCB conveyor and the machine center
3.4.5.1 Single conveyor
3

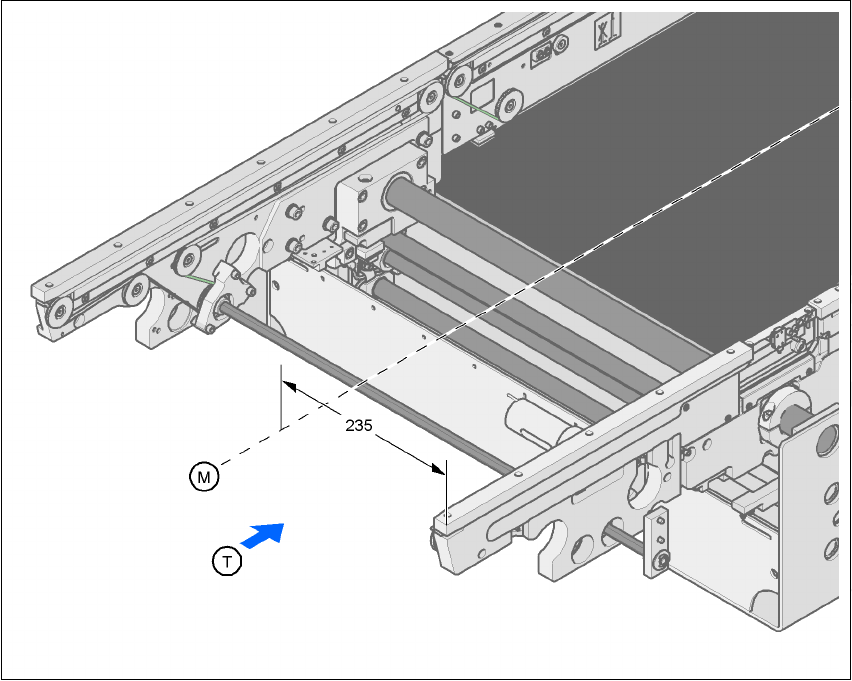

Fig. 3.4 - 5 Distance between the right-hand side of the PCB conveyor and the machine center in millimeters
(single conveyor)
3
M Machine center
T Direction of PCB transport
3 Technical data User manual SIPLACE HF series
3.4 Dimensions and weight of the placement machines Software Version SR.50x.xx 01/2006 US Edition
104
3.4.5.2 Dual conveyor
3
Fig. 3.4 - 6 Distance between the right-hand side of the PCB conveyor and the machine center in millimeters
(dual conveyor)
3
M Machine center
T Direction of PCB transport
