3.4.5.2 Dual conveyor
3

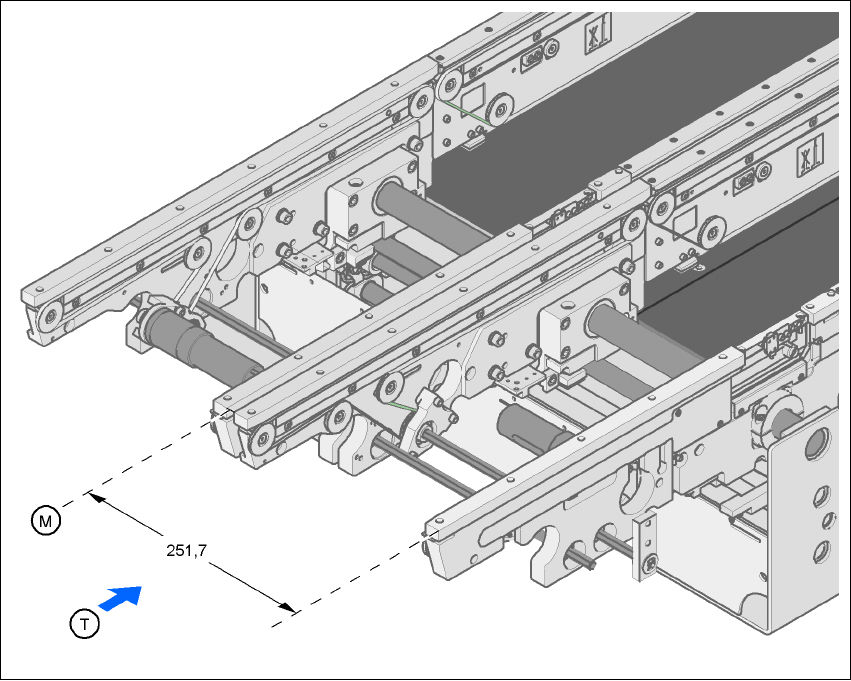

Fig. 3.4 - 6 Distance between the right-hand side of the PCB conveyor and the machine center in millimeters
(dual conveyor)
3
M Machine center
T Direction of PCB transport
User manual SIPLACE HF series 3 Technical data
Software Version SR.50x.xx 01/2006 US Edition 3.4 Dimensions and weight of the placement machines
105
3.4.6 Technical data - dimensions, weight of the placement machines
* The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine.
Length
With both extension kits 2380 mm
With one extension kit 2103 mm
With no extension kits 1826 mm
Width of basic machine
HF/3 with CO trolley docked in (locations 1 + 4)
HF/3 with CO trolley docked in (locations 2 + 3)
HF with CO docked in (locations 1 + 4)
HF with CO trolley docked in (locations 2 + 3)
Incl. monitors
With keyboards
2810 mm
2382 mm
2382 mm
2382 mm
2831 mm
2804 mm
Height of the machine
With warning lamp
With folded-up protective covers
Up to 1974
1990 mm (PCB conveyor height: 830 mm)
2060 mm (PCB conveyor height: 900 mm)
2090 mm (PCB conveyor height: 930 mm)
2112 mm (PCB conveyor height: 950 mm)
Machine ground clearance 120 mm (PCB conveyor height: 830 mm)
190 mm (PCB conveyor height: 900 mm)
220 mm (PCB conveyor height: 930 mm)
240 mm (PCB conveyor height: 950 mm)
Weight
HF/3 (machine with CO trolley)
HF/3 (full configuration with feeder modules)
HF (machine with CO trolley)
HF (full configuration with feeder modules)
3826 kg
4153 kg
3742 kg
4069 kg
Footprint
HF/3 and HF 6.70 m²
Load per unit area *)
HF/3
HF
5.83 kN/m²
6.10 kN/m²
Number of machine feet 6
3 Technical data User manual SIPLACE HF series
3.4 Dimensions and weight of the placement machines Software Version SR.50x.xx 01/2006 US Edition
106
3.4.7 Maneuvring distance for the component trolley on the HF machine
3
3

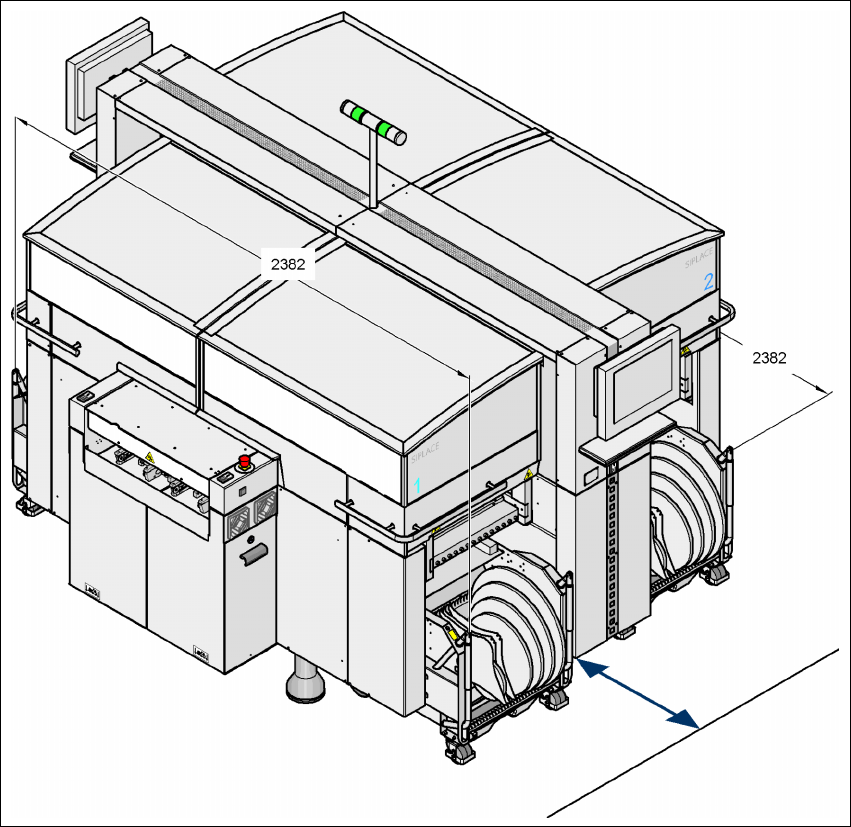

Fig. 3.4 - 7 Maneuvring distance for the component trolley on the HF machine
3
The maneuvring distance R of the component trolley on the HF machine is: 3
– at locations 2 and 4
600 mm with the handles folded down or
900 mm with the handles folded up,
– at location 1 and 3
750 mm with the handles folded down or
1050 mm with the handles folded up.
R 3
