User manual SIPLACE HF series 4 Setting up and commissioning
Software Version SR.50x.xx 01/2006 US Edition 4.4 Setting up the placement machine
211
4.4.11.4 Fitting the computer unit
Æ Plug in the plug-in connectors on the back panel of the computer unit (see section 4.4.11.2,
4.4.11.3
).
Æ Carefully lift the computer unit onto the rail in the extension kit.
Æ Make sure that you do not squash any cables.
Æ Check that the cables for the front panel are in the lateral cable routing plate
(item 1 in Fig. 4.4 - 19
, page 207).
Æ Fix the cables to the front panel with cable ties.
Æ Push the computer unit into the extension kit as far as the stop.
Æ Connect the fan cable to the computer unit cable.
Æ Plug in the plug-in connectors on the front panel of the computer unit (see section 4.4.11.2,
4.4.11.3
).
Æ Secure the computer unit with the fillister head screw.
Æ Fix the grounding cable to the doors (item 2 in Fig. 4.4 - 15, page 201), as shown in Fig.
4.4 - 17
on page 205.
Æ Lock the doors.
PLEASE NOTE
On HF placement machines, continue from section 4.4.11.5
"Fitting the side plates".
On HF/3 placement machines, continue from section 4.4.12
"Installing the axis unit on the HF/3
(gantry 1 and gantry 4)" on page 212.
4.4.11.5 Fitting the side plates
Æ Fix the grounding cable to each side plate (item 5 in Fig. 4.4 - 15), as shown in Fig. 4.4 - 17
page 205
.
Æ Fix the side plate to the machine frame with 6 fillister head screws.
Æ Continue from section 4.4.13 "Fitting the main fault indicator", page 214.
4 Setting up and commissioning User manual SIPLACE HF series
4.4 Setting up the placement machine Software Version SR.50x.xx 01/2006 US Edition
212
4.4.12 Installing the axis unit on the HF/3 (gantry 1 and gantry 4)
4.4.12.1 HF/3 axis unit (gantry 1 and gantry 4) - Electrical connection points
4

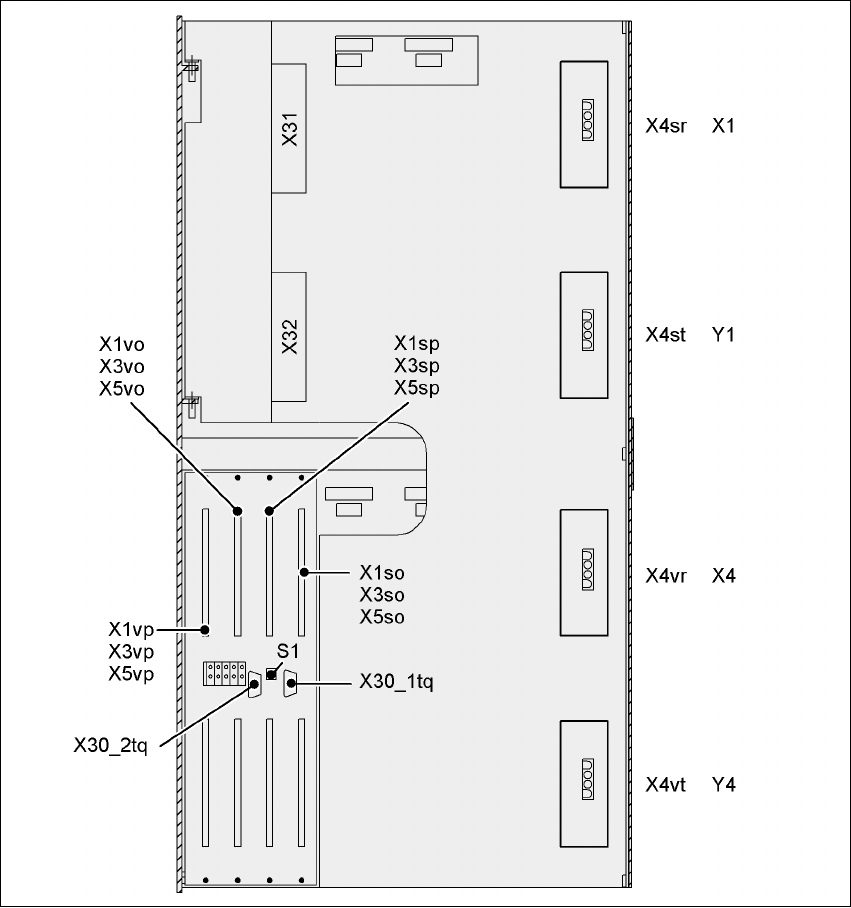

Fig. 4.4 - 21 HF/3 axis unit (gantry 1 and gantry 4), rear panel - Connecting the plugs
User manual SIPLACE HF series 4 Setting up and commissioning
Software Version SR.50x.xx 01/2006 US Edition 4.4 Setting up the placement machine
213
4.4.12.2 HF/3 axis unit (gantry 1 and gantry 4) - Connecting the plugs
Æ Connect the power cable as shown in the following diagram:
4
4
4
Æ Check the switch settings for S1
1: OFF
2: OFF
Axis unit
Gantry 1 and gantry 4
Plug
Connecting cable
NOTE
Plug Cable
X31 X31
03009762
03009763
03009764
03009765
03009766 W1-W5
Secure connector with clips
X32 X32
03009822
03009823
03009824
03009825
03009827
Secure connector with clips
X4sr X4sr 03009760 Snap connector into place
X4st X4st 03009761 Snap connector into place
X4vr X4vr 03009820 Snap connector into place
X4vt X4vt 03009821 Snap connector into place
X1so
X3so
X5so
X1so
X3so
X5so
03009771
03009772
03009773
Insert as far as the stop
X1sp
X3sp
X5sp
X1sp
X3sp
X5sp
03009774
03009775
03009776
Insert as far as the stop
X1vo
X3vo
X5vo
X1vo
X3vo
X5vo
03009831
03009832
03009833
Insert as far as the stop
X1vp
X3vp
X5vp
X1vp
X3vp
X5vp
03009834
03009835
03009836
Insert as far as the stop
X30_1tq
X30_2tq
X30_1tq
X30_2tq
03010051
03010051
Screw tightly
