5 Tasks on the machine User manual SIPLACE HF series 5.2 Changing shift Software Vers ion SR.50x.xx 01/2006 US Edition 228 5.2 Cha nging shif t Æ S pli ce the tapes earl y . The fee der module s do not have to be r efill…

User manual SIPLACE HF series 5 Tasks on the machine

Software Version SR.50x.xx 01/2006 US Edition 5.1 Personnel profile

227

– Soldering paste

– Components

– Feeder modules, etc.

– Setting up the station for a new production batch

– Checking the feeder module settings:

– Increment

– Pick-up position

– Checking the management data

– Asking the responsible programmers to modify placement programs

– Ensuring a smooth flow of information between the individual groups

5.1.3 Service engineer

The service personnel should normally have attended the SIPLACE basic, refresher and service

engineer courses.

The service engineer's duties include:

– Major preventive maintenance jobs

– Mounting replacement parts

– Editing machine data

– Calibrating the machine

5.1.4 Programmer

The programming personnel should normally have attended the SIPLACE programming course.

The programmer's jobs are as follows:

– Preparing CAD files

– Writing placement programs

– Data maintenance

– Data backup

5 Tasks on the machine User manual SIPLACE HF series

5.2 Changing shift Software Version SR.50x.xx 01/2006 US Edition

228

5.2 Changing shift

Æ Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift

starts. This avoids extended down times.

Æ At the shift change, pass important information on to the next operator. This includes, for in-

stance, changes to the placement program. Also read through the list of the descriptions of

the steps to take in section 5.5

Æ Carry out a set-up check.

Make sure that the feeder modules are equipped with the correct components and that they

are at the correct locations in the component trolley.

PLEASE NOTE

Hand over the line in the same state that you would want to find it in when starting your shift.

This means that: 5

– The rejection containers are empty.

– The waste containers are empty.

– The feeder areas have been cleaned with a vacuum cleaner.

User manual SIPLACE HF series 5 Tasks on the machine

Software Version SR.50x.xx 01/2006 US Edition 5.3 Carrying out a walk-through inspection

229

5.3 Carrying out a walk-through inspection

5.3.1 Checking the S feeder modules

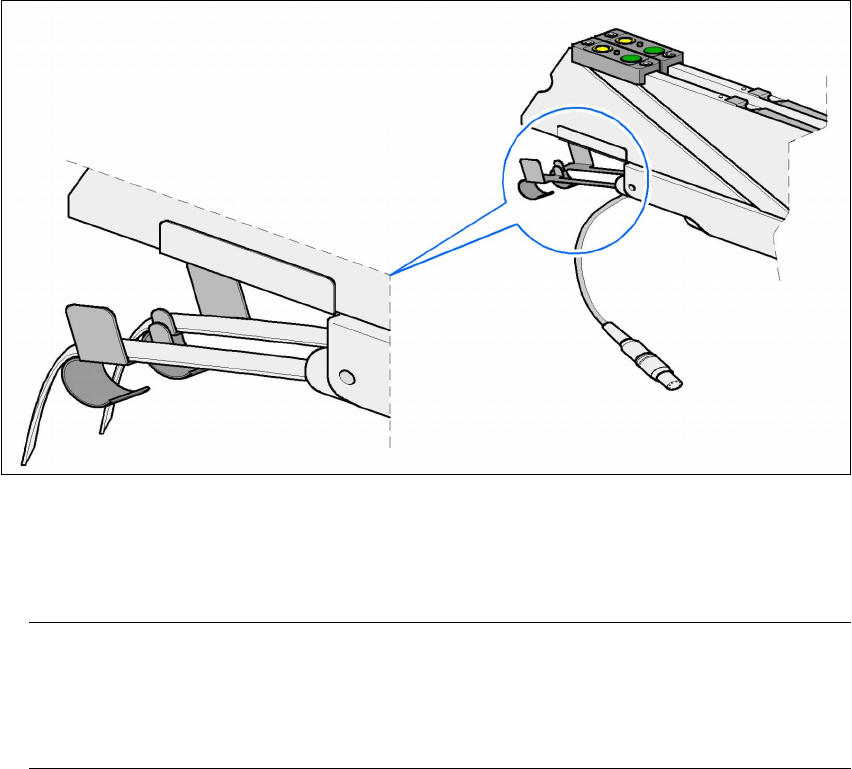

Æ Make sure that the tape is correctly placed in the springs of the S feeder module.

Fig. 5.3 - 1 Placing the tape in the springs of the S feeder module

Æ Check to see whether the tape foil removal container for the S feeder module is full.

If it is full, then pull out the foil and cut it off with scissors.

PLEASE NOTE

Tearing the foil instead of cutting it can lead to problems with the tape removal mechanism.

For this reason the 3 x 8 mm feeder modules are fitted with an integral cutter. This is in the

tape foil removal container at the end of the feeder module under the flaps. 5

Æ Check to ensure that the pick-up window on the feeder module is the right size for the com-

ponent.

Æ Check to see whether tape guides are inserted on combination feeder modules (24 mm /

32 mm).

Æ Check to see whether the additional plastic guide is inserted on combination feeder modules.
