5 Tasks on the machine User manual SIPLACE HF series 5.3 Carrying out a walk-through inspection Software Version SR.50x.xx 01/2006 US Edition 232 5.3.5 Using spi ndles for large t ape reels Æ Insert spi ndles i nto the s…
User manual SIPLACE HF series 5 Tasks on the machine
Software Version SR.50x.xx 01/2006 US Edition 5.3 Carrying out a walk-through inspection
231
5
Fig. 5.3 - 2 Separating plates in the tape container
(1) Guide rail for the separating plates
(2) Tape container
(3) Waste tape container
(4) Sliding surfaces for the tape reels
(5) Position of the separating plate if no spindles are used
(6) Position of the separating plate if spindles are used
5 Tasks on the machine User manual SIPLACE HF series
5.3 Carrying out a walk-through inspection Software Version SR.50x.xx 01/2006 US Edition
232
5.3.5 Using spindles for large tape reels
Æ Insert spindles into the separating plates when using large tape reels.
PLEASE NOTE
We recommend that you use spindles if the tape reel diameter exceeds 15" (381 mm)". This will
ensure that the feeder modules operate reliably.
5

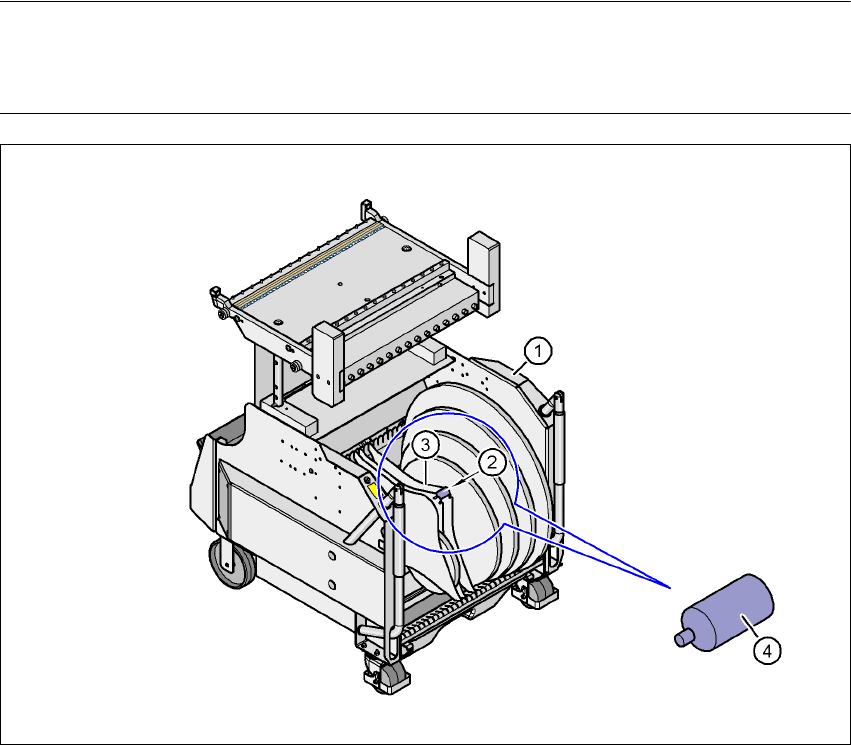

Fig. 5.3 - 3 Inserting spindles for large reels
5
(1) Component trolley
(2) Position of the spindles
(3) Separating plate
(4) Spindle (enlarged)
User manual SIPLACE HF series 5 Tasks on the machine
Software Version SR.50x.xx 01/2006 US Edition 5.4 Setting up the feeder modules
233
5.4 Setting up the feeder modules
5

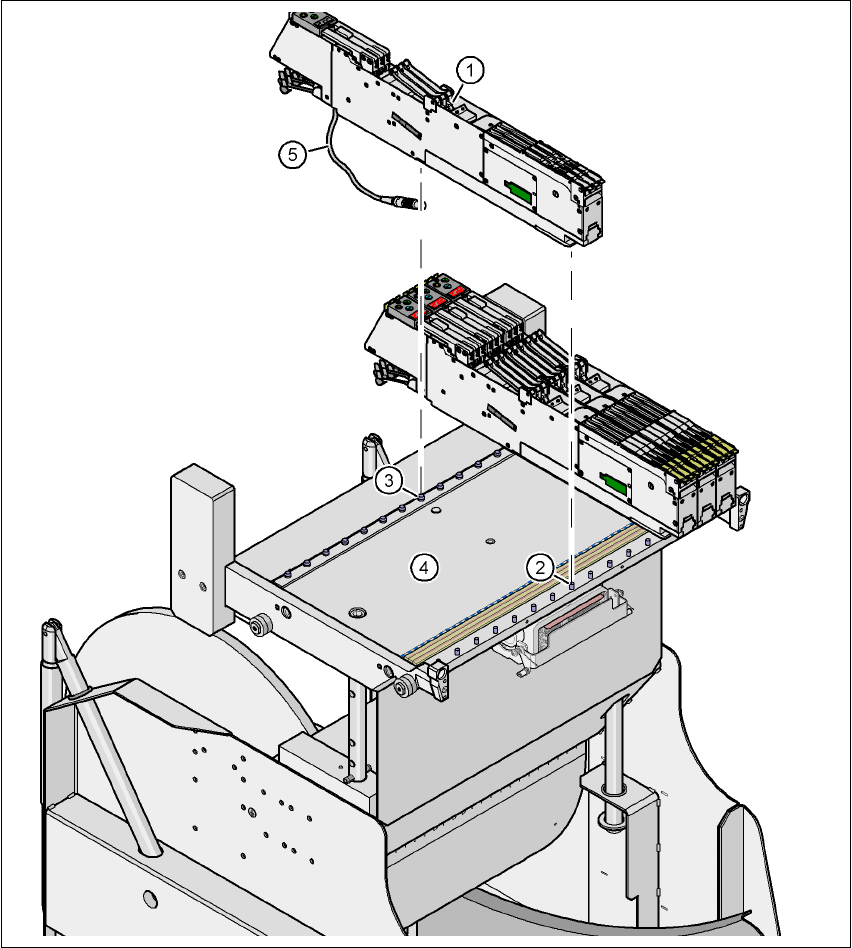

Fig. 5.4 - 1 Component feeder table with 15 locations for S feeder modules
(1) S feeder module
(2) Centering pin
(3) Centering ball
(4) Component feeder table
(5) Connecting cable for the S feeder module
