5 Tasks on the machine User manual SIPLACE HF series
5.6 Avoiding track errors Software Version SR.50x.xx 01/2006 US Edition
238
5.6.3 Component coordinate system and pick-up angle
5
Fig. 5.6 - 1 Position of the component and its pick-up angle
Special
component
Stick
magazine:
Chip-
components
with polarity
0402
2220
The anode must be
aligned with the +X
coordinate.
Package form
type
Coordinate system
Position in the feeder
Pick-up angle/
nozzle angle
Tape:
SOT 23
Stick
magazine:
Tape:
Tape:
SO-IC
DIL-IC
SOT 194
Tape:
Holes
Y
X
Y
X
Y
X
Y
X
Y
X
90°
90°
0°
90°
-90°
0°
User manual SIPLACE HF series 5 Tasks on the machine
Software Version SR.50x.xx 01/2006 US Edition 5.7 Refilling components
239
5.7 Refilling components
The online help contains information on refilling components with and without barcodes.
Æ With tape feeder modules, make sure that you always splice on a new tape early enough so
that the feeder modules do not run out of components.
Æ However, do not splice the tapes too early because if you wind the tape onto the new reel
after splicing the end of the old tape, the reel with the new tape may be overfilled. The tape
could then slip off the reel and become tangled. Under certain circumstances, this could
cause pick-up errors and prolonged down times.
Æ Always insert spindles when using tape reels of 15" (381 mm) and larger (see Fig. 5.3 - 3)
and make sure that the separating plates are inserted correctly (see Fig. 5.3 - 2
).
5 Tasks on the machine User manual SIPLACE HF series
5.8 Docking the component trolley in or out Software Version SR.50x.xx 01/2006 US Edition
240
5.8 Docking the component trolley in or out
5.8.1 Safety instructions for docking component trolleys in and out
WARNING
To prevent accidents (risk of crushing), the component trolley may only be docked in or out by
one person.
5

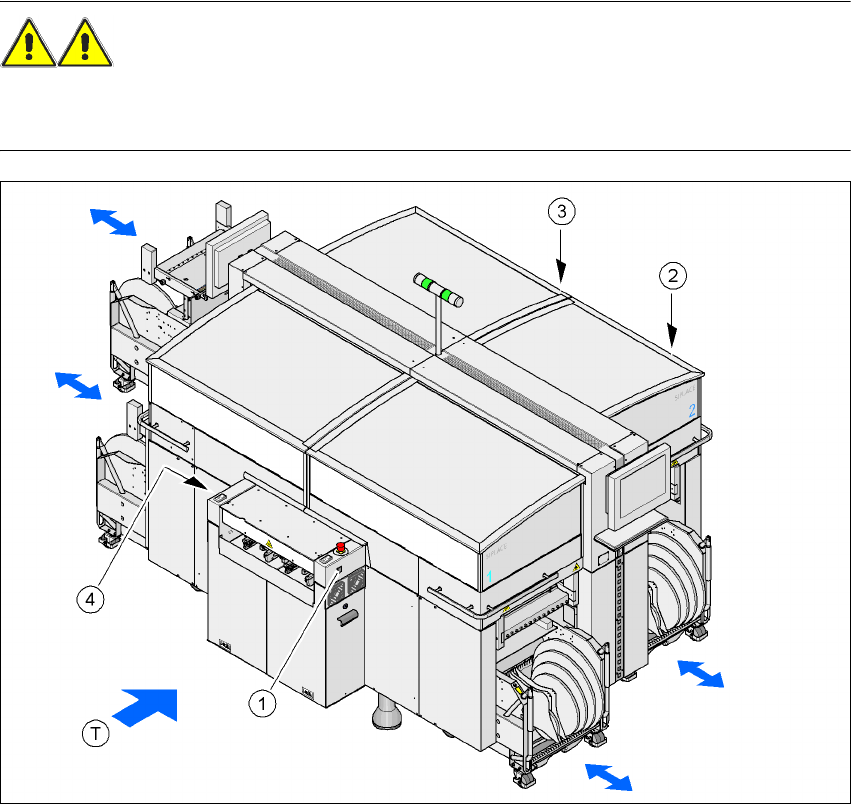

Fig. 5.8 - 1 Safety instructions for docking the component trolley in or out
(1) Button for docking the component trolley in or out, location 1
(2) Button for docking the component trolley in or out, location 2
(3) Button for docking the component trolley in or out, location 3
(4) Button for docking the component trolley in or out, location 4
(T) Direction of PCB transport
