User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
249
6.2 Technical data for the S feeder modules
The following pages contain pictures of all the S feeder modules, the technical data and the op-
tions for setting up the feeder modules on the machine.
6.2.1 Tape feeder module 8 mm S II
6

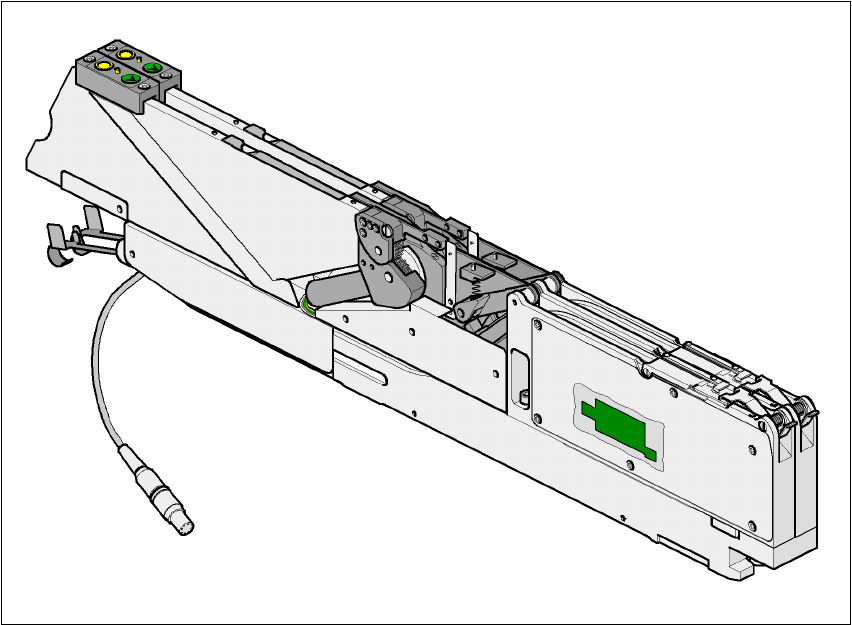

Fig. 6.2 - 1 8 mm S II tape feeder module
Item no. 00141096-xx 6
Width 30.6 mm 6
Tracks per feeder module 2 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 4,000 6
Conveyor increment 2mm / 4mm 6
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
250
6.2.2 Tape feeder module 3 x 8 mm S

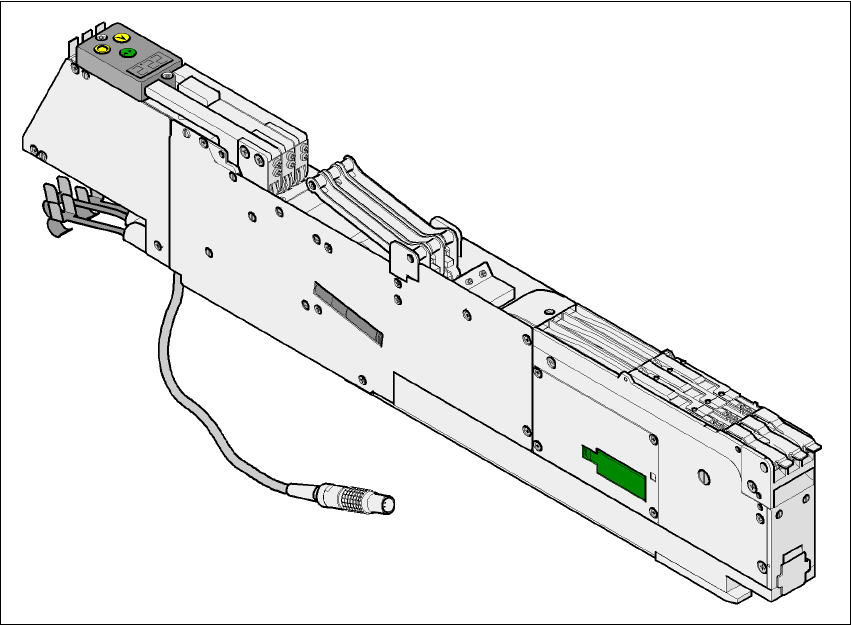

Fig. 6.2 - 2 Tape feeder module 3 x 8 mm S
Item no. 00141098-xx 6
Width 30.6 mm 6
Tracks per feeder module 3 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 4,000 to 10,000 6
Conveyor increment 2mm / 4mm 6
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
251
6.2.3 Tape feeder module 3 x 8 mm S for 0201/0402 components
6

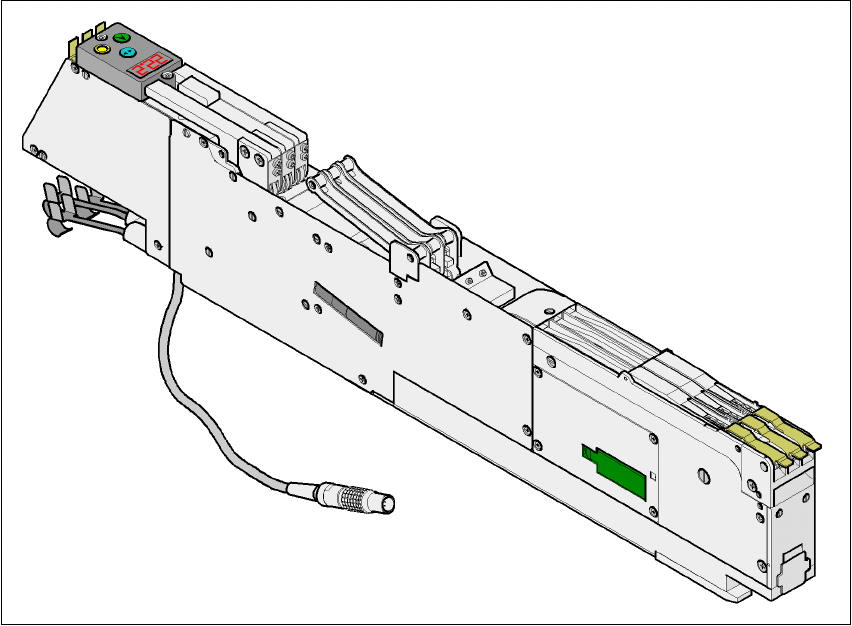

Fig. 6.2 - 3 Tape feeder module 3 x 8 mm S for 0201/0402 components
6
Item no. 00141099-xx 6
Width 30.6 mm 6
Component range 0201, 0402 6
Tracks per feeder module 3 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 10,000 6
Conveyor increment 2mm / 4mm 6
