6 Component handling User ma nual SIPLACE HF series 6.2 Technical dat a for the S feeder modules S oftware Version S R.50x.xx 01/2006 US Edition 252 6.2.4 T ape f eeder module 12/16 mm S Fig. 6.2 - 4 T ape feeder module …
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
251
6.2.3 Tape feeder module 3 x 8 mm S for 0201/0402 components
6
Fig. 6.2 - 3 Tape feeder module 3 x 8 mm S for 0201/0402 components
6
Item no. 00141099-xx 6
Width 30.6 mm 6
Component range 0201, 0402 6
Tracks per feeder module 3 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 10,000 6
Conveyor increment 2mm / 4mm 6
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
252
6.2.4 Tape feeder module 12/16 mm S
Fig. 6.2 - 4 Tape feeder module 12/16 mm S
Item no. 00141092-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 4,000 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
253
6.2.5 12 mm S tape feeder module for powdered metal-based capacitors, C/D
model
6

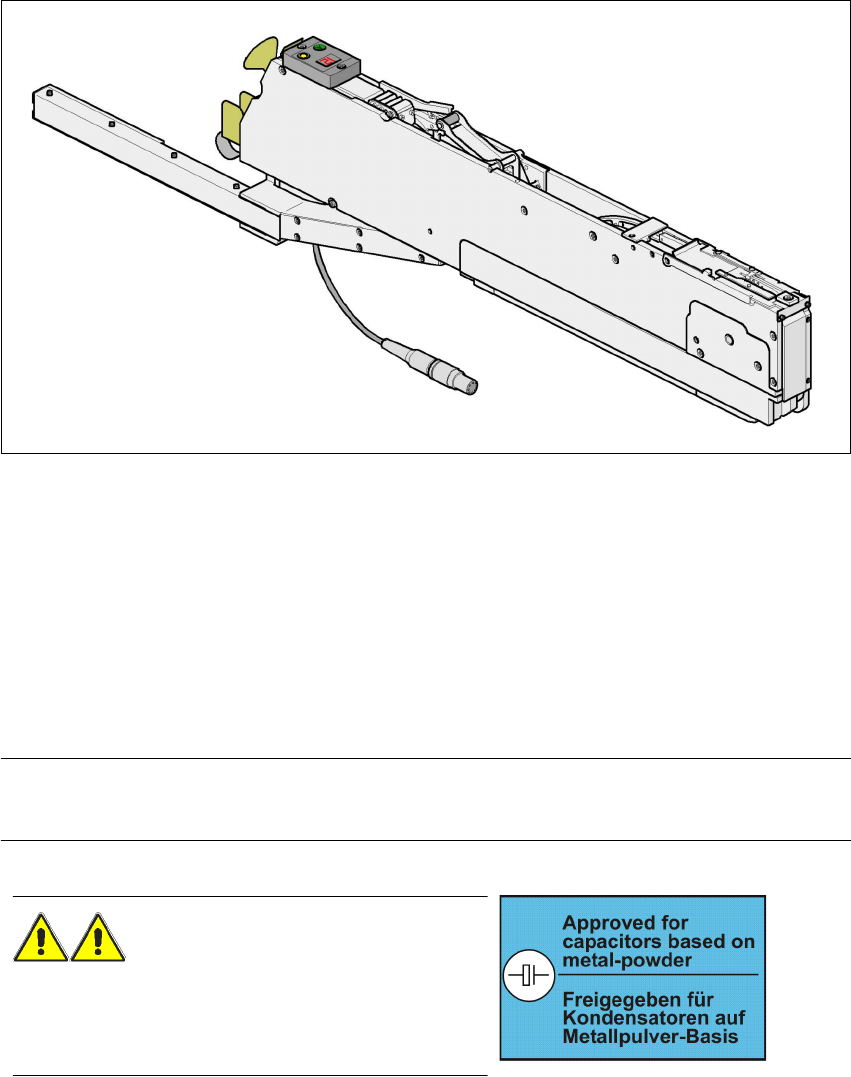

Fig. 6.2 - 5 Tape feeder module 12 mm S for powdered metal-based capacitors, C/D model
Item no. 00141118-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 4,000 6
Maximum tape height 3.6 mm 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
PLEASE NOTE
On this feeder module, the height of the tape at the pick-up position can be adjusted.
WARNING
Capacitors based on metal-powder, such as
tantalum capacitors, may only be processed with
feeder modules that are identified with this sticker.
Sticker on feeder module (enlarged)
