User manual SIPLAC E HF series 6 Component handling Software Vers ion SR.50x.xx 01/2006 US E dition 6.2 Technical da ta for the S feeder modules 255 6.2.7 T ape feeder module 24/32 mm S Fig. 6.2 - 7 T ape f eeder module …
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
254
6.2.6 12 mm S tape feeder module for powdered metal-based capacitors, E model
6

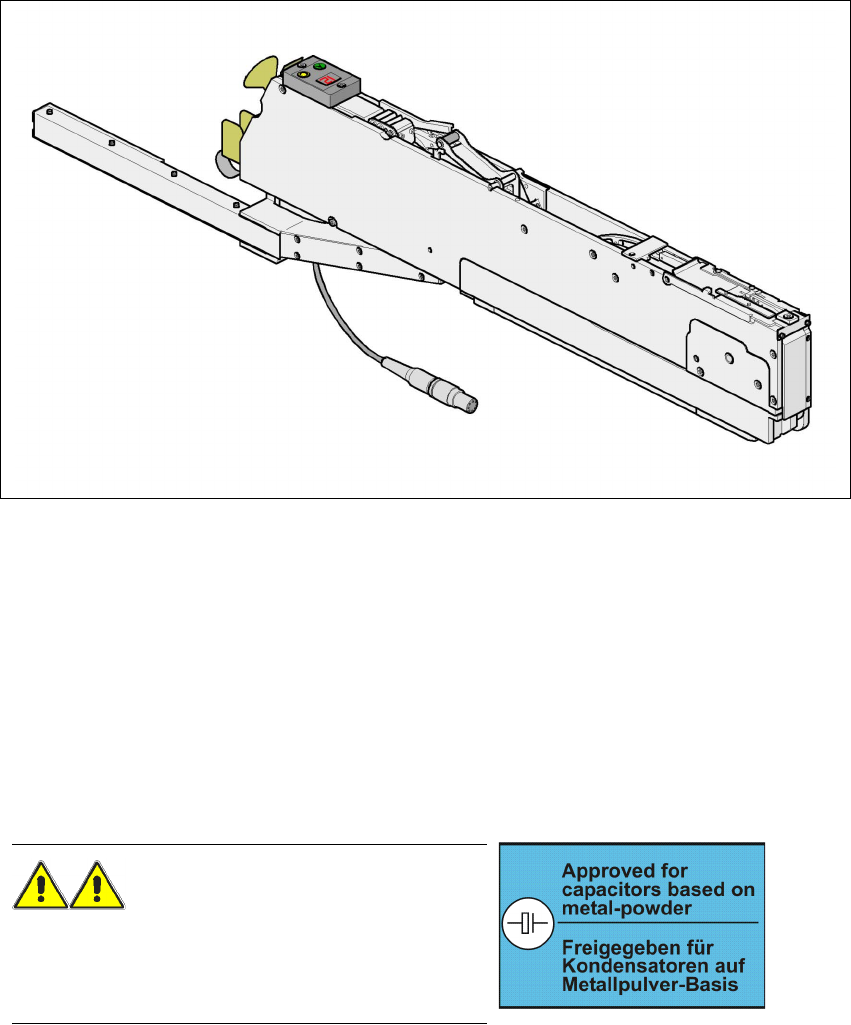

Fig. 6.2 - 6 Tape feeder module 12 mm S for powdered metal-based capacitors, E model
Item no. 00141117-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components for 7" reels approx. 4,000 6
Maximum tape height 3.6 mm 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
WARNING
Capacitors based on metal-powder, such as
tantalum capacitors, may only be processed with
feeder modules that are identified with this sticker.
Sticker on feeder module (enlarged)
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
255
6.2.7 Tape feeder module 24/32 mm S
Fig. 6.2 - 7 Tape feeder module 24/32 mm S
Item no. 00141093-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 4 x 10 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
256
6.2.8 Tape feeder module 24/32 mm S DP for deep pockets
Fig. 6.2 - 8 Tape feeder module 24/32 mm S DP for deep pockets
Item no. 00141193-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 4 x 10 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
