6 Component handling User ma nual SIPLACE HF series 6.2 Technical dat a for the S feeder modules S oftware Version S R.50x.xx 01/2006 US Edition 256 6.2.8 T ape f eeder module 24/3 2 mm S DP for deep pocket s Fig. 6.2 - …
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
255
6.2.7 Tape feeder module 24/32 mm S

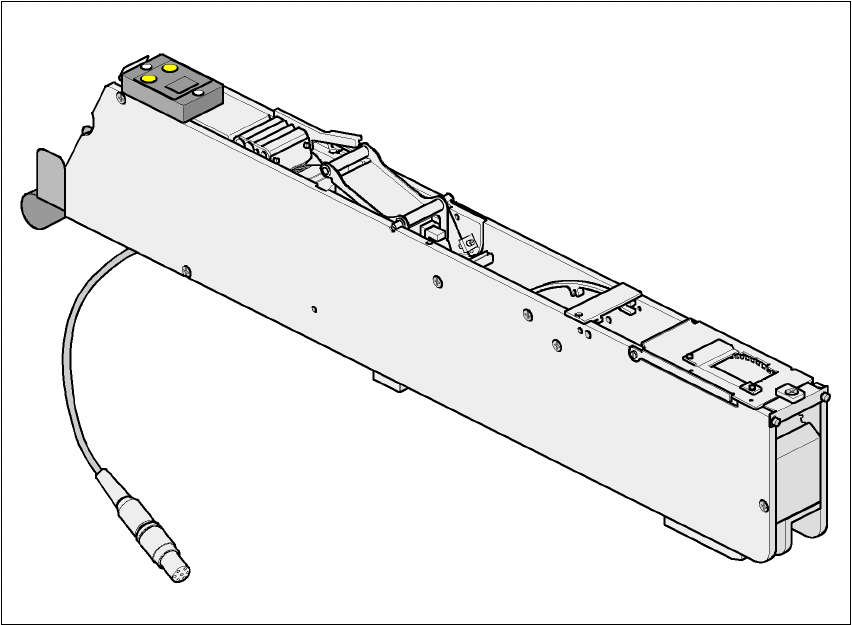

Fig. 6.2 - 7 Tape feeder module 24/32 mm S
Item no. 00141093-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 4 x 10 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
256
6.2.8 Tape feeder module 24/32 mm S DP for deep pockets

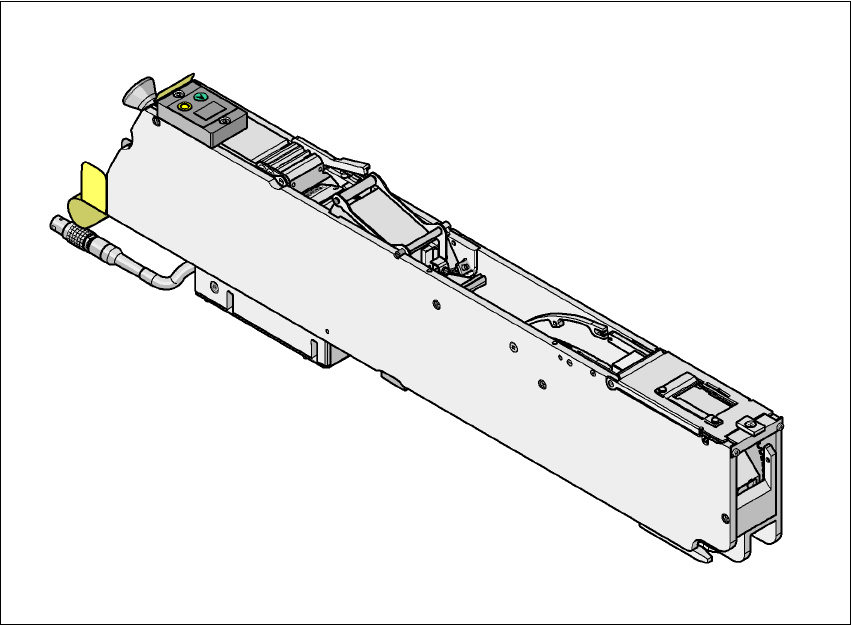

Fig. 6.2 - 8 Tape feeder module 24/32 mm S DP for deep pockets
Item no. 00141193-xx 6
Width 42.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1.5 6
Maximum number of feeder modules 4 x 10 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 40 mm in 4 mm increments 6
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
257
6.2.9 Tape feeder module 44 mm S
Fig. 6.2 - 9 Tape feeder module 44 mm S
Item no. 00141094-xx 6
Width 54.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 2 6
Maximum number of feeder modules 4 x 7 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 52 mm in 4 mm increments 6
