6.2.10 Tape feeder module 44 mm S DP for deep pockets
Fig. 6.2 - 10 Tape feeder module 44 mm S DP for deep pockets
Item no. 00141194-xx 6
Width 54.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 2 6
Maximum number of feeder modules 4 x 7 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 52 mm in 4 mm increments 6
6
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
259
6.2.11 Tape feeder module 56 mm S
Fig. 6.2 - 11 Tape feeder module 56 mm S
Item no. 00141095-xx 6
Width 66.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 2.5 6
Maximum number of feeder modules 4 x 6 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 68 mm in 4 mm increments 6
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
260
6.2.12 Tape feeder module 56 mm S DP for deep pockets

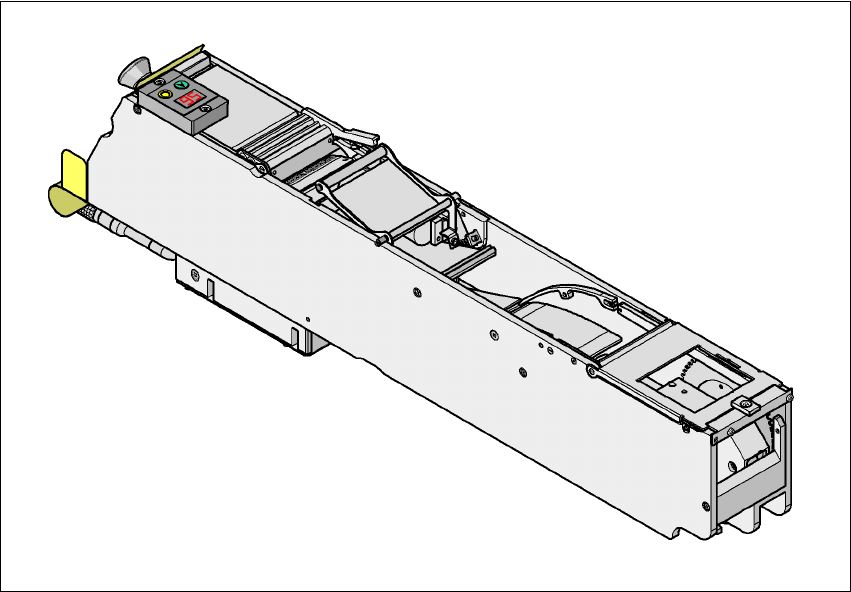

Fig. 6.2 - 12 Tape feeder module 56 mm S DP for deep pockets
Item no. 00141195-xx 6
Width 66.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 2.5 6
Maximum number of feeder modules 4 x 6 6
Tape height up to 25 mm 6
Conveyor increment from 4mm to 68 mm in 4 mm increments 6
