6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
262
6.2.14 Tape feeder module 88 mm S

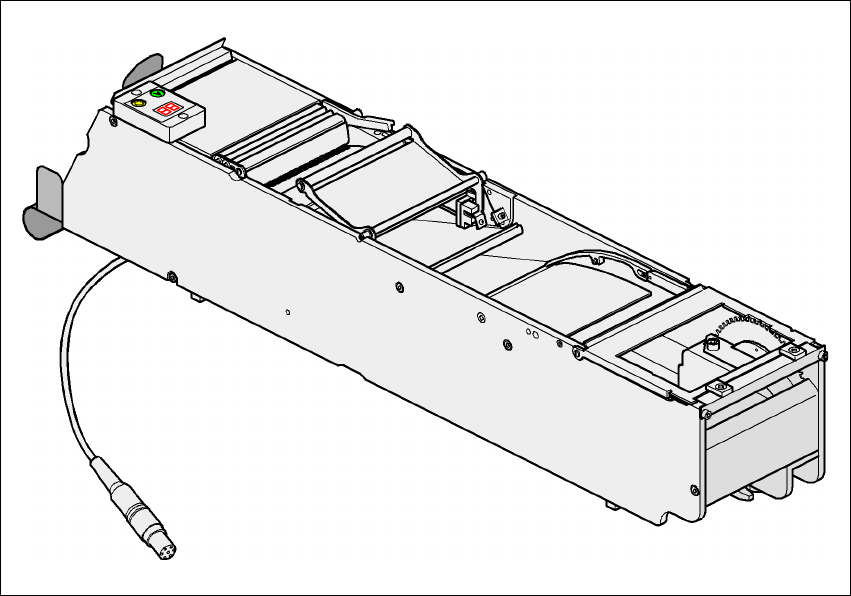

Fig. 6.2 - 14 Tape feeder module 88 mm S
Item no. 00141070-xx 6
Width 98.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 3.5 6
Maximum number of feeder modules 4 x 4 6
Stock of components for 7" reels approx. 2,000 6
Conveyor increment from 4mm to 96 mm in 4 mm increments 6
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
263
6.2.15 Linear vibratory feeder, type 3

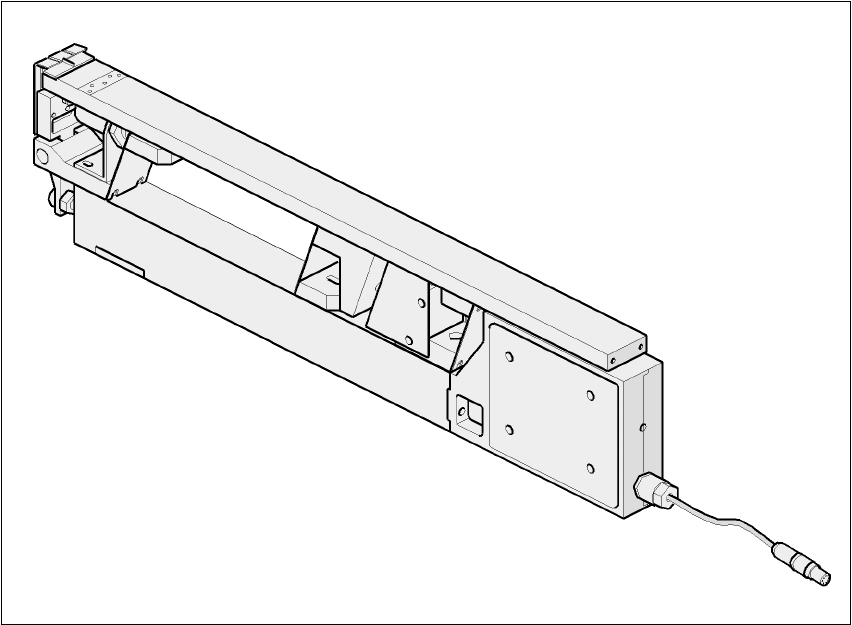

Fig. 6.2 - 15 Linear vibratory feeder, type 3
Item no. 00142031-xx 6
Wide 28 mm 6
Tracks per feeder 1, 2, 3, or 6 6
Assigned locations 1 6
Maximum number of feeders 4 x 15 6
Stock of components up to 150 per steel stick magazine, 6
depending on the component length 6
Specific data for stick magazines 9.5 mm wide / x 3 6
15 mm wide / x 2 6
> 15 mm wide / x 1 6
30 mm wide / 1 x 6
Cycle time variable with SIPLACE Pro from 400 to
over 1,000 msec 6
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
264
6.2.16 Bulk case feeder module
6
Fig. 6.2 - 16 Bulk case feeder module
Item no. 00142318-xx 6
Wide 29 mm 6
Tracks per feeder module 2 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components up to 50,000 6
Feeding rails 0402 / 0.35 mm high item no. 00142319-xx 6
0402 / 0.5 mm high item no. 00142320-xx 6
0603 / 0.45 mm high item no. 00142321-xx 6
0603 / 0.80 mm high item no. 00142322-xx 6
0805 / 0.45 mm high item no. 00142323-xx 6
0805 / 0.60 mm high item no. 00142324-xx 6
0805 / 0.85 mm high item no. 00142325-xx 6
0805 / 1.25 mm high item no. 00142326-xx 6
Micro Melf / 1.05 ± 0.05 mm item no. 00142327-xx 6
Mini Melf / 1.40 ± 0.1 mm item no. 00142328-xx 6
Cycle time < 60 ms 6
