User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
263
6.2.15 Linear vibratory feeder, type 3
Fig. 6.2 - 15 Linear vibratory feeder, type 3
Item no. 00142031-xx 6
Wide 28 mm 6
Tracks per feeder 1, 2, 3, or 6 6
Assigned locations 1 6
Maximum number of feeders 4 x 15 6
Stock of components up to 150 per steel stick magazine, 6
depending on the component length 6
Specific data for stick magazines 9.5 mm wide / x 3 6
15 mm wide / x 2 6
> 15 mm wide / x 1 6
30 mm wide / 1 x 6
Cycle time variable with SIPLACE Pro from 400 to
over 1,000 msec 6
6 Component handling User manual SIPLACE HF series
6.2 Technical data for the S feeder modules Software Version SR.50x.xx 01/2006 US Edition
264
6.2.16 Bulk case feeder module
6
Fig. 6.2 - 16 Bulk case feeder module
Item no. 00142318-xx 6
Wide 29 mm 6
Tracks per feeder module 2 6
Feeder module locations filled 1 6
Maximum number of feeder modules 4 x 15 6
Stock of components up to 50,000 6
Feeding rails 0402 / 0.35 mm high item no. 00142319-xx 6
0402 / 0.5 mm high item no. 00142320-xx 6
0603 / 0.45 mm high item no. 00142321-xx 6
0603 / 0.80 mm high item no. 00142322-xx 6
0805 / 0.45 mm high item no. 00142323-xx 6
0805 / 0.60 mm high item no. 00142324-xx 6
0805 / 0.85 mm high item no. 00142325-xx 6
0805 / 1.25 mm high item no. 00142326-xx 6
Micro Melf / 1.05 ± 0.05 mm item no. 00142327-xx 6
Mini Melf / 1.40 ± 0.1 mm item no. 00142328-xx 6
Cycle time < 60 ms 6
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.2 Technical data for the S feeder modules
265
6.2.17 Surf tape feeder module
6.2.17.1 Overview
For placing bare dies, you will need the surf tape feeder module for feeding components. There
are versions of these feeder modules for 8-, 12- or 16 mm tapes.
6

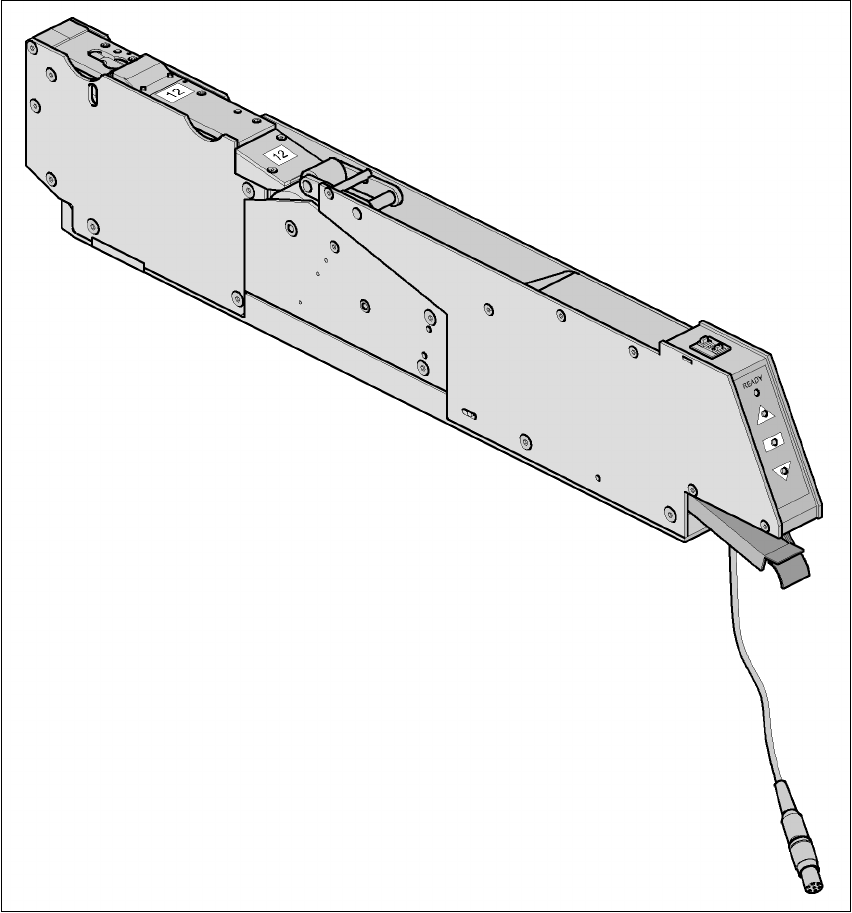

Fig. 6.2 - 17 Surf tape feeder module
The surf tape feeder module can be ordered from Hover-Davis (www.hoverdavis.com).
Handling of the feeder module is described in the operating instructions for feeder modules.
