6 Component handling User ma nual SIPLACE HF series 6.3 Component trolley Software Vers ion SR.50x.xx 01/2006 US Edition 278 6.3.4.1 T ape reel diameter in relation to the PCB transpo rt height 6 6.3.5 External power sup…
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.3 Component trolley
277
6.3.4 Tape container
The tape container can hold reels up to 19" in diameter. You should use spindles to process reels
of 15" diameter or more. The use of separating plates is described in section 5.3
on page 229.
PLEASE NOTE
For optimum operation, we recommend the use of spindles for 15" diameter or more.
6

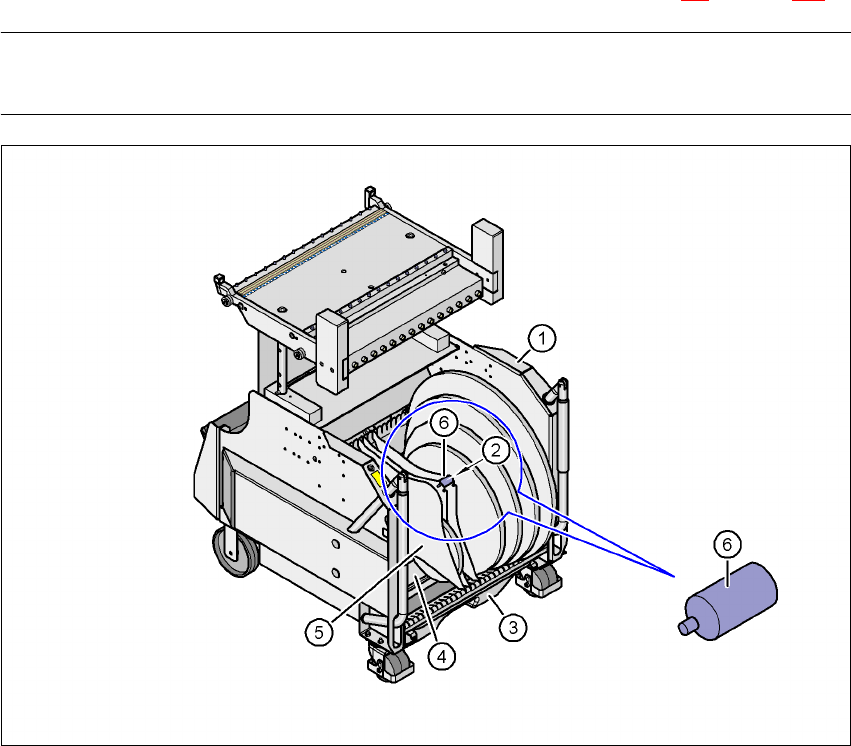

Fig. 6.3 - 5 Component trolley with tape container
(1) Component trolley
(2) Position of the spindles
(3) Waste tape container
(4) Tape container
(5) Separating plate
(6) Spindle (enlarged)
6 Component handling User manual SIPLACE HF series
6.3 Component trolley Software Version SR.50x.xx 01/2006 US Edition
278
6.3.4.1 Tape reel diameter in relation to the PCB transport height
6
6.3.5 External power supply for component trolley
To keep the time required for a setup change as short as possible, component trolleys can be set
up in advance at a special external location. The feeder functions and settings can be checked
there to prepare them for operation. We provide an external power supply for this purpose. It is
used to supply the component trolley with the required electrical power and compressed air.
Technical data
The kit contains a main power cable to European standards, a main power cable to US standards
and a connecting cable between the power supply and the component trolley.
6.3.6 Compressed air supply for bulk case feeder modules
Bulk case feeder modules require compressed air in order to work. A compressed air supply for
bulk case feeder modules is therefore available as an option.
It is easy to fit. First remove the sealing plug (item 1) from the compressed air connection on the
component feeder table (item 2). Then use two screws DIN 912, M8x20 (item 4) to fix the com-
pressed air supply (item 3) to the component feeder table (item 2). The compressed air supply has
retaining clips (item 5) on the back. They fix the bulk case feeder modules to the component table
and thus ensure a perfect compressed air supply.
Option – With support for 3rd tape reel
PCB conveyor height
of the component trolley
Tape reel diameter Tape reel diameter
830 mm 17" 15"
900 mm 19" 17"
930 mm 19" 17"
950 mm 19" 19"
Mains voltage 230 VAC ± 5 %
120 VAC ± 5 %
Compressed air connection Max. 1.0 MPa (10 bar)
Output pressure Can be regulated with a valve
User manual SIPLACE HF series 6 Component handling
Software Version SR.50x.xx 01/2006 US Edition 6.3 Component trolley
279
6

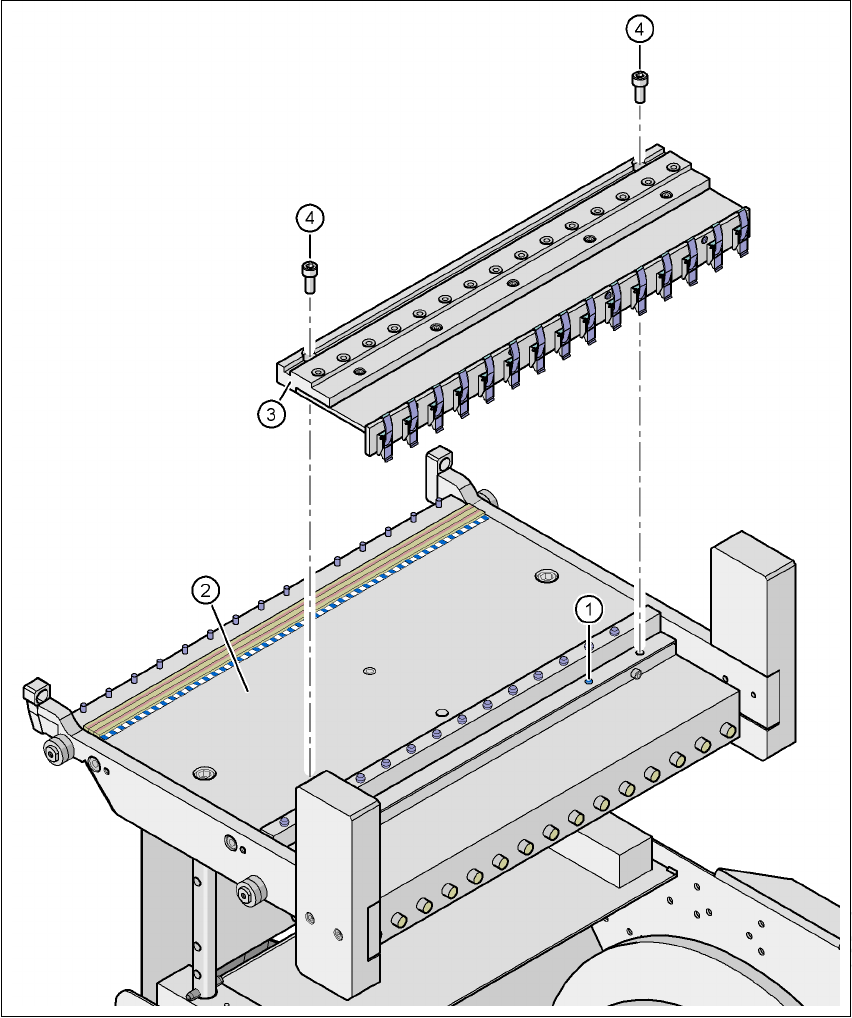

Fig. 6.3 - 6 Compressed air supply for bulk case feeder modules
6
(1) Sealing plug on the component feeder table
(2) Component feeder table
(3) Compressed air supply for bulk case feeder modules
(4) Screw DIN 912, M8x20
(5) Retaining clamp
